The FusingX FX1200 is built for 630–1200mm HDPE pipe butt fusion. Its reinforced frame, stable hydraulic control, wide aluminum inserts, anti-slip pads, heavy-duty facer, and FX-level heating plate help improve pipe holding, facing stability, and welding reliability in large-diameter pipe projects.
Designed for connecting PPR pipes with female threaded fittings, this male socket features a brass insert for secure and stable performance in piping systems.
Designed for connecting PPR pipes with male threaded components, this female socket features a brass insert for secure and stable performance in hot and cold water systems.

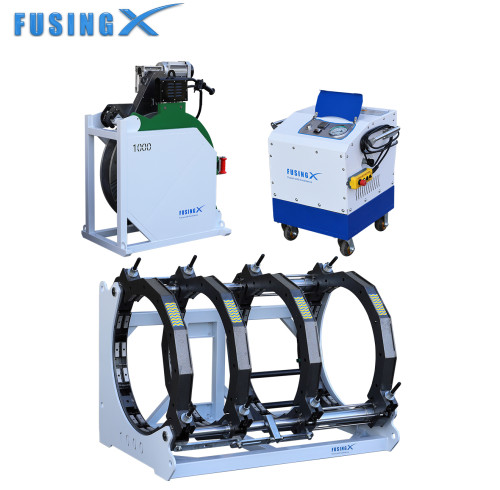

FX1000 is a large-diameter hydraulic butt fusion machine for 630–1000mm pipes. With a 17.5kW heating plate, 3kW facer, 4kW hydraulic station, and 0–12MPa pressure range, it is suitable for heavy-duty HDPE pipeline projects.
Used to connect PPR pipe with metal threaded fittings at a 90° angle in water supply systems.
PP-R female thread elbow (90°) with brass insert, used for connecting PP-R pipes to male threaded fittings in hot and cold water systems.
FX800 is built for 450–800mm large-diameter pipe welding. It features higher heating power, stronger facer capacity, and a dedicated hydraulic system configuration for heavy-duty pipe fusion work.
PPR male thread tee for connecting PPR pipes with threaded metal fittings in water supply systems.
PPR female thread tee for connecting PPR pipes with threaded metal fittings in water supply systems.
High Level Hydraulic Butt Fusion Welding Machine Semi Automatic Butt Welding Machine FusingX 315/630
FX630 supports 315–630mm HDPE pipe butt fusion. With a 7.5kW heating plate, 1.5kW facer, 0–10MPa pressure range, and robust frame design, it is suitable for medium-to-large pipeline construction.
Designed for flow control in PPR piping systems, this angle gate valve features a brass stem and smooth operation for reliable shut-off performance.
FX500 is designed for 180–500mm pipe welding. Compared with smaller models, it is equipped with a higher-power facer and stronger welding capacity, making it suitable for heavier medium-to-large diameter pipe projects.
Designed for flow control in PP-R piping systems, this full port ball valve ensures low flow resistance and smooth operation, suitable for water supply applications.
FX450 covers 180–450mm pipe welding and features the FX series hydraulic system, reinforced frame, and professional heating plate. It is suitable for medium and large pipe installation work.
FX355 covers 90–355mm pipe welding and continues the FX series design with smart pressure control, reinforced frame structure, and professional heating performance. It is a practical choice for medium-diameter pipe projects.
FX315 supports 90–315mm PE, PP, and PVDF pipe welding. It combines a robust frame, intelligent hydraulic control, single-size clamp inserts, and FX heating plate for stable and smooth welding operation.
FX250 is designed for 63–250mm pipe butt fusion. With intelligent pressure control, a thickened heating plate, premium PTFE coating, and standard clamp inserts, it provides stable operation for medium-size pipe installation projects.
FX200 covers 63–200mm pipe welding and is built with an enhanced frame, intelligent pressure control HPU, FX heating plate, and single-size clamp inserts. It is suitable for professional small-to-medium pipe fusion work.
FX160 is a hydraulic butt fusion machine for 40–160mm PE, PP, and PVDF pipes. It features intelligent hydraulic control, one-touch pressure adjustment, FX heating plate, anti-wear pads, convenient wheels, and an easy-grip handle for small-diameter pipe welding jobs.
FusingX PS630 / PS1200 pipe support roller stands are designed for PE / HDPE pipe handling during butt fusion welding. They can also be used as general pipe support roller stands for suitable pipe handling work where pipe support, alignment, or forward/backward movement is needed.
Built with a thickened steel frame and rubber-coated smooth rollers, they help support pipes, protect the pipe surface, and make pipe movement easier. Two height settings are available, with custom support height on request.
Built with a thickened steel frame and rubber-coated smooth rollers, they help support pipes, protect the pipe surface, and make pipe movement easier. Two height settings are available, with custom support height on request.
Electrofusion welding machines for PE and PP pipe fittings, featuring precise control, stable output, and easy operation for gas, water, and fire protection systems.

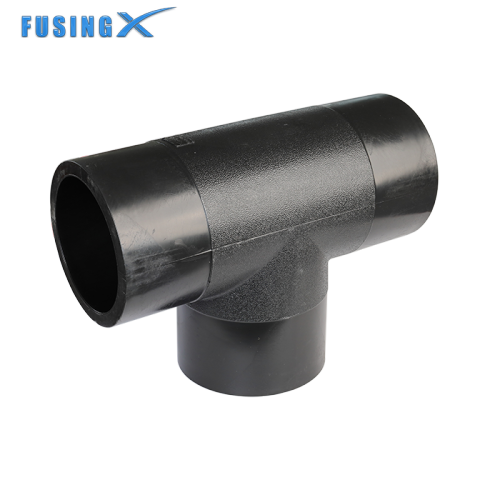

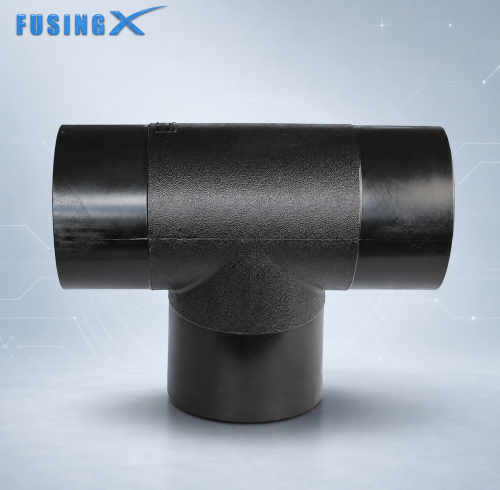

The equal tee is designed for equal-diameter three-way connections in PE piping systems, using butt fusion joints to ensure high joint strength and reliable sealing for water, gas, and industrial pipeline applications.
PPS24 / PPS32 is a mechanical PE pipe scraper designed for reliable removal of the oxidation layer before electrofusion welding, offering stable operation, clear adjustment, and wide diameter coverage.

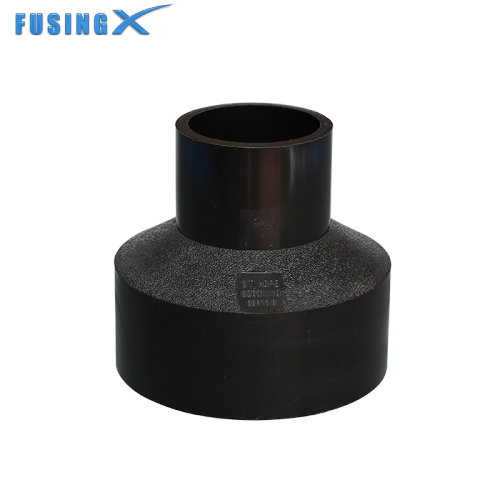

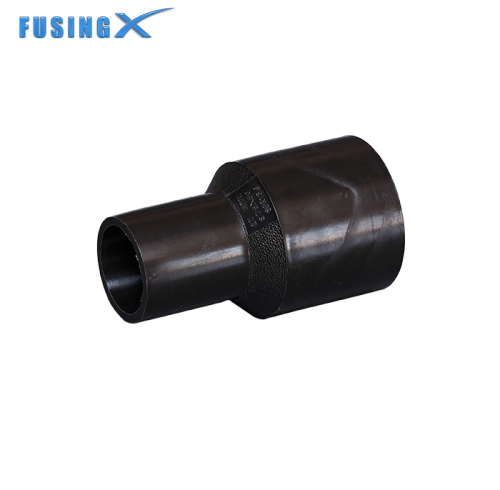

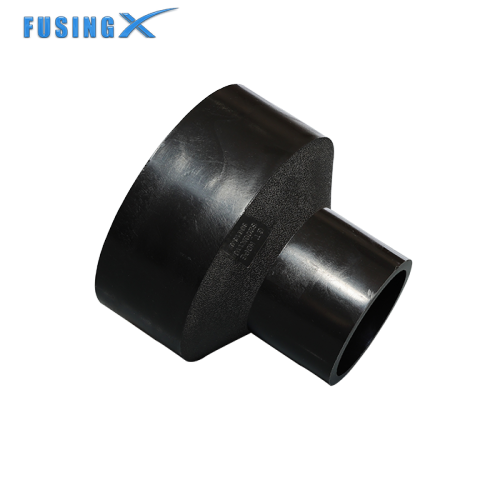

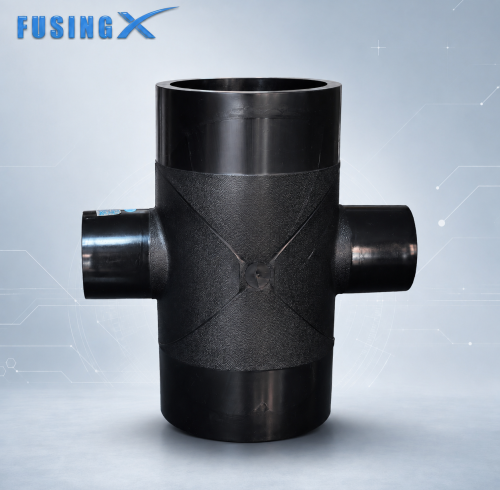

HDPE reducing fittings designed for butt fusion welding, used to connect PE pipelines with different diameters. Made from PE100 material, offering stable fusion performance and reliable pressure resistance for pipeline systems.
You can choose the solution that best fits your business
For standard pipe fusion applications, our FX series butt fusion welding machines are available as ready-to-use models with proven configurations and stable performance.
For customers who require branding adjustments or minor configuration changes, we offer OEM services based on existing FX platforms.
For more specific market or technical requirements, our ODM service supports the development of customized welding equipment—from structural design and functional configuration to testing and production.
This flexible cooperation model allows both new and established brands to enter or expand their markets efficiently, with different levels of customization as needed.
