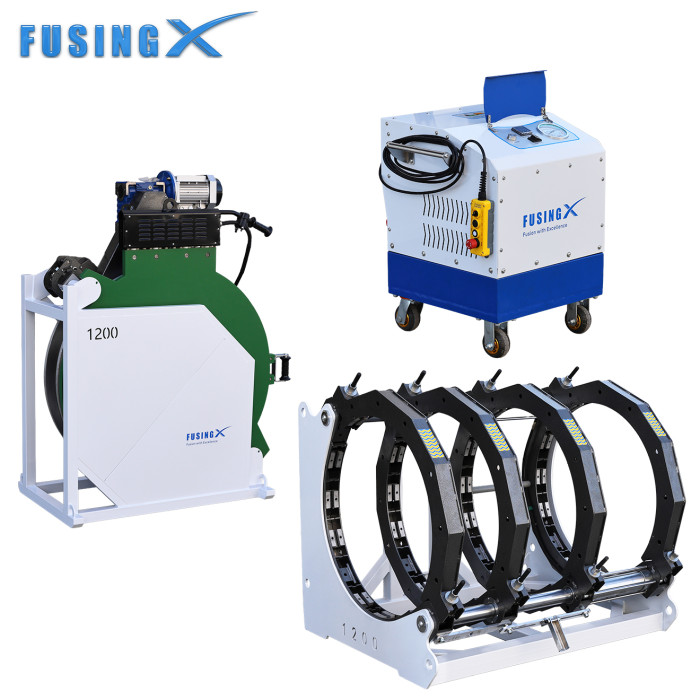

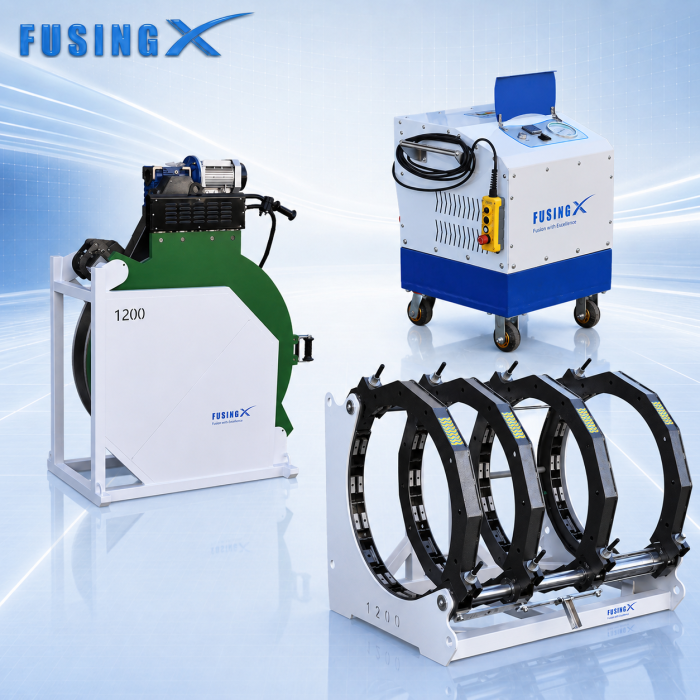

FusingX FX1200 Hydraulic Butt Fusion Welding Machine 630–1200mm for HDPE Pipe Welding
The FusingX FX1200 is built for 630–1200mm HDPE pipe butt fusion. Its reinforced frame, stable hydraulic control, wide aluminum inserts, anti-slip pads, heavy-duty facer, and FX-level heating plate help improve pipe holding, facing stability, and welding reliability in large-diameter pipe projects.
| Share | |
|---|---|
| Categories | FX-Butt Fusion Welding Machine |
| Brand | FusingX |
| Model | FX1200 |
| OEM&ODM | Support |
| Welding Range | 630–1200mm |
| Frame | Steel welded, reinforced structure |
| Hydraulic Unit | Integrated hydraulic & electrical system |
| Heating Plate | Cast aluminum, PEFT coating, ±7ºC control |
| Facer | Gear transmission, HSS blades, copper motor |
| Power Supply | Aviation plug, heavy-duty power cord |
| Portability | Handles & wheels, compact enclosure |
| Download |  |
Detail Information
FX1200 Butt Fusion Machine — Fusion with Excellence
（Precision · Intelligence · Excellence）
Key Highlights
· Robust Frame: Reinforced steel welded carriage with thickened side plates for stable large-diameter pipe fusion
· DynaFX™ HPU: Integrated hydraulic and electrical control with enclosed design for efficient and convenient operation
· Precision Heating Plate: Cast aluminum heating plate with PTFE coating and stable temperature control
· Heavy-Duty Facer: Reinforced chain drive with self-tensioning design, copper motor, and HSS double-edge blades
· Die-Cast Clamp Inserts: Quarter-circle die-cast aluminum inserts with widened contact surface for stable pipe holding
· Adjustable Anti-Slip Pads: Increase contact area and can be adjusted to fit pipes slightly smaller than standard size
Product Overview
The FX1200 is a semi-automatic butt fusion machine designed for HDPE pipe welding from 630mm to 1200mm. Built with a reinforced steel carriage, DynaFX™ hydraulic power unit, FX-level heating plate, and heavy-duty facer, it is designed to deliver stable clamping, reliable facing, and consistent heating in large-diameter pipe fusion projects. Standard die-cast aluminum inserts and adjustable anti-slip pads further improve pipe holding and on-site adaptability.
| Model No. | FX1200 | Control | Semi-Automatic |
| Frequency Range | Low Frequency | Electric Current | AC |
| Type | HDPE Butt Fusion Welding Machine | Hydraulic Station | Enclosed |
| Warranty | 1 Year | Package Quantity | 3PCS |
OEM&ODM | Support | Shipping | by Sea or by Air |
Certificate | ISO 9001, CE | MOQ | No Limit |
After Service | Online | Material | Aluminum, Steel |
Transport Package | Plywood Case | Specification | Hydraulic Drive |
Trademark | FusingX | Origin | China |
HS Code | 8515809090 | Production Capacity | 20000 Pieces/Year |
PARAMETER
| Model | FX1000 |
| Suitable materials | HDPE,PE,PP, PB,PVDF |
| Range | 630-710-800-900-1000-1100-1200(M) |
Rated Voltage | 380V/50Hz, 3PH |
Rated Power | 30.5KW |
Heating plate | 22.5KW |
Trimmer | 4 KW |
Hydraulic Unit | 4 kW |
Max.Temperature of heating plate | 270ºC |
Pressure gauge | 0-12 Mpa |
Temperature Deviation | ±7℃ |
Piston Area | 45.94 CM² |
Certificate | ISO/CE/VOC/Calibration |
| Warranty | 18 Months |
PRODUCT DETAILS MAP
Frame(Carriage)
· Complete steel welded design, with complexreinforced structure, heavy-duty
· Thickened and enlarged side plates providehigher structural strength
· Standard equipped with lifting slugs anddetaching sleeve
· Qualified hydraulic cylinder with quickcouplings, for easy installation
DynaFX™ HPU
· Integrated hydraulic and electrical control,for easy operation access, smart pressurecontrol for pipe facing
· Compact and Enclosure design, shieldingsplash and dirt, with standard remotecontrol panel for flexible operation
· Featuring forward movement at 1X speedand reverse at 1.3X speed. Improvesefficiency and reduces switching time
Heating plate
· Thickened cast aluminum body with built-inheating elements
· Anti-stick PEFT coating from Daikin
· Excellent teperature diavation control,less than 7°C
· Qualified aviation plug and heavy-duty powercord ensure operation safety
Facer (Milling Cutter)
· Reinforced chain drive with a self-tensioning design keeps the facer stable and helpsprevent loosening after long-term operation
· Powerful copper-wiring motor
· Reinforced aluminum die-cast facer plate
· Durable, double edges HSS blades
· Innovative locking part, easy to use
Tool holder
· Complete heating plate covers for better protection and heating conservation
· Wide base with lifting lugs
· For stable stock of facer and heating plate
Clamp inserts
· The FX1200 comes standard with die-castaluminum inserts for 630, 710, 800, 900,1000, and 1100 mm pipe sizes
· Quarter-circle die-cast aluminum insertswith a widened surface
· Designed for quick installation and removal
Anti-slip pads
· Greatly increases the contact area with thepipe surface, improving anti-slip performanceand providing a more stable grip
· Can be installed independently for moreflexible use
· The pads can be finely adjusted to fit pipesthat are slightly smaller than the standard size
