FusingX PPR Female Thread Elbow 90° | PPR x Brass Female Thread Fitting | DN20–32
Detail Information

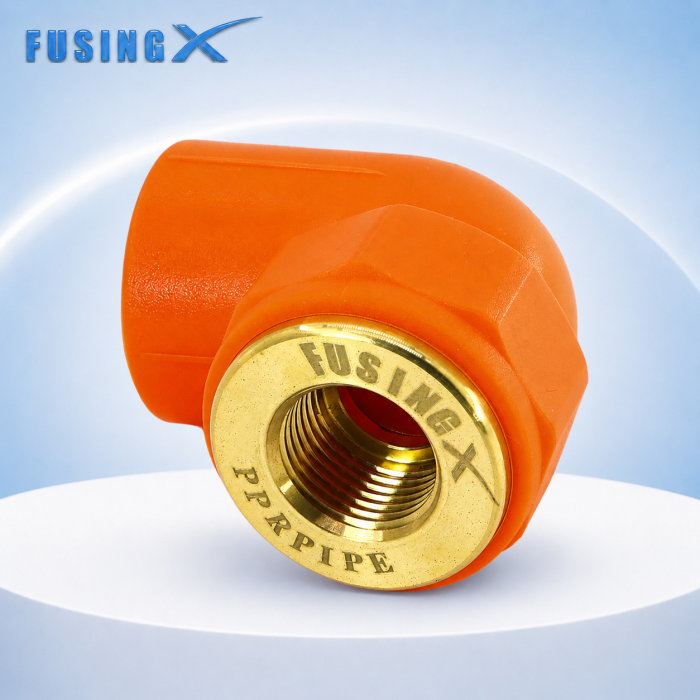

FusingX PP-R Female Thread Elbow (90°)
（Socket fusion end with female threaded metal insert）
Overview
PP-R female thread elbow (90°) is designed for water supply systems, connecting PP-R pipes with threaded metal fittings.
It features a socket fusion end on one side and a female threaded connection with an integrated metal insert on the other.
Technical Information
| Material: | PP-R (Polypropylene Random Copolymer) |
| Insert Material: | Brass / Nickel-plated Brass |
| Connection Type: | Socket fusion + Female thread |
| Angle: | 90° |
| Applicable Standards: | · PP-R system: ISO 15874· Thread: ISO 228-1 (BSP) |
Color: | Green / Orange |
Specifications
Model | Pipe Size (mm) | Thread (inch) |
L20×1/2F | 20 | 1/2" |
L20×3/4F | 20 | 3/4" |
L25×1/2F | 25 | 1/2" |
L25×3/4F | 25 | 3/4" |
L32×1/2F | 32 | 1/2" |
L32×3/4F | 32 | 3/4" |
L32×1F | 32 | 1" |
Key Features
Threaded Connection
Precision-machined female thread for connection with male threaded fittings.
Socket Fusion End
Designed to match standard PP-R fusion dimensions.
Metal Insert Options
Available with brass or nickel-plated brass insert options.

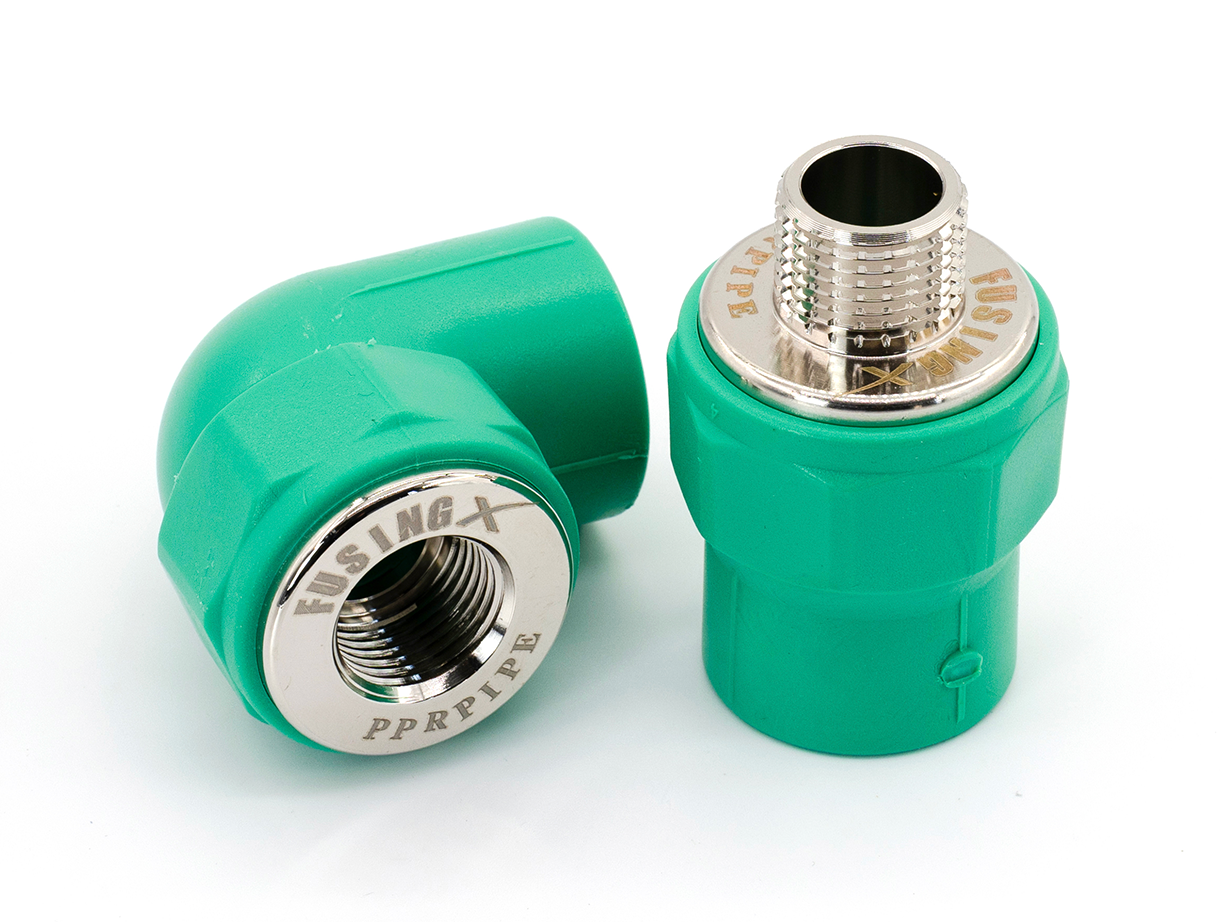

Two Color Options
Available in green and orange body options.
Details
Thread
Internal thread is machined inside the metal insert.
Socket End
Socket end follows standard PP-R dimensions for fusion.
Body Structure
Integrated PP-R body with smooth transition to the insert.
Installation
- Installed by socket fusion welding on PP-R pipes.
- Threaded side connects directly with standard metal fittings.
- Ensure proper alignment during installation to avoid stress on the insert.
