FusingX PPR Male Thread Elbow 90° | PPR x Brass Male Thread Fitting | DN20–32
| Share | |
|---|---|
| Categories | PPR Threaded Fittings |
| Brand | FusingX |
| Model | L20–L32 × 1/2"–1" (M) |
| Product Type | PPR Male Thread Elbow 90° |
| Angle | 90° |
| Material | PPR + Brass |
| Insert Type | Brass / Nickel-Plated Brass |
| Connection | Socket Fusion x Male Thread |
| Color | Green / Orange |
| Application | Water Supply Systems |
| Thread Standard | BSP / NPT (Optional) |
| Working Temperature | up to 95°C |
| Working Pressure | PN16 / PN20 |
Detail Information

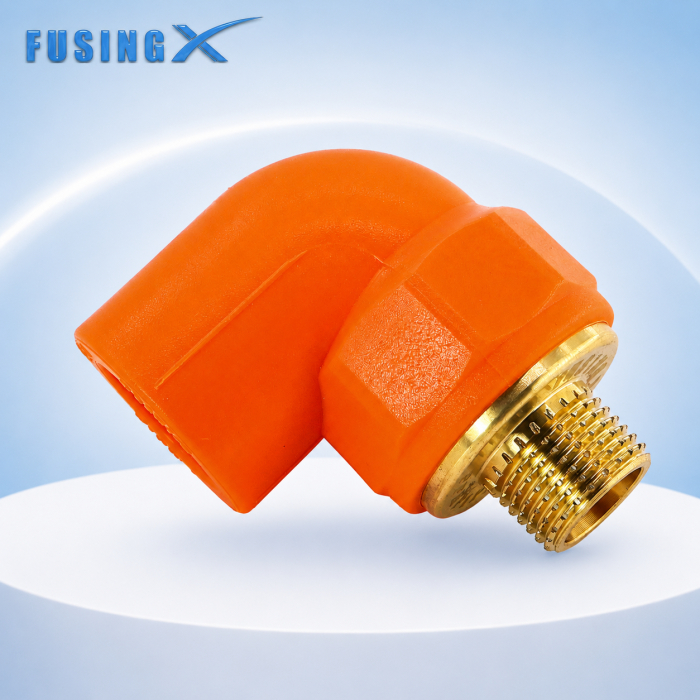

FusingX PP-R Male Thread Elbow (90°)
(Socket fusion end with male threaded metal insert)
Overview
PP-R male thread elbow (90°) is designed for water supply systems, connecting PP-R pipes with threaded metal fittings.
It features a socket fusion end on one side and a male threaded connection with an integrated metal insert on the other.
Technical Information
| Material: | PP-R Body + Brass Insert |
| Insert Material: | Brass / Nickel-plated Brass |
| Connection Type: | Socket Fusion + Male Thread |
| Angle: | 90° |
| Applicable Standards: | · PP-R system: ISO 15874· Thread: ISO 228-1 (BSP) |
Color: | Green / Orange |
Specifications
Model | Pipe Size (mm) | Thread (inch) |
L20×1/2M | 20 | 1/2" |
L20×3/4M | 20 | 3/4" |
L25×1/2M | 25 | 1/2" |
L25×3/4M | 25 | 3/4" |
L32×1/2M | 32 | 1/2" |
L32×3/4M | 32 | 3/4" |
L32×1M | 32 | 1" |
Key Features
Threaded Connection
Precision-machined male thread for connection with female threaded fittings.
Socket Fusion End
Designed to match standard PP-R fusion dimensions.
Metal Insert Options
Available with brass or nickel-plated brass insert options.
Two Color Options
Available in green and orange body options.
Details
Thread
Precision-machined male thread ensures accurate connection with female threaded fittings.
Socket End
Socket end conforms to standard PP-R fusion dimensions for consistent jointing.
Body Structure
One-piece PP-R body with firmly embedded metal insert for stable and reliable connection.
Installation
· Installed by socket fusion welding on PP-R pipes.
· Male threaded end connects directly with standard metal fittings.
· Ensure proper alignment during installation to avoid stress on the metal insert.
