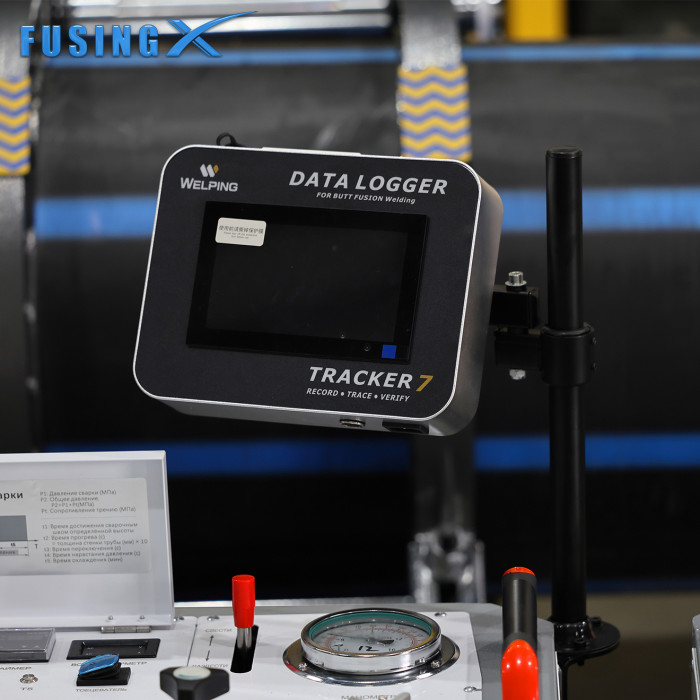

Tracker 7 / Tracker 10 Butt Fusion Data Logger for HDPE Pipes
Tracker 7 and Tracker 10 are Android-based data loggers for HDPE butt fusion welding. They monitor and record key welding data, guide operators through the fusion process, and support data export, printing and joint traceability.
| Share | |
|---|---|
| Categories | FX Piping Tool |
| Brand | FusingX |
| Product Specifications | Tracker 7 / Tracker 10 |
| Application | HDPE Butt Fusion |
| Operating System | Android |
| Display Size | 7″ / 10″ |
| Welding Standards | ISO 21307 / DVS 2207 / GOST R 55276 / Custom |
| Data Storage | 10,000+ Weld Records |
| Data Output | USB Export / Built-in Printer |
| Languages | 9 Languages |
| Label Style | Black / White |
Detail Information
Tracker 7 / Tracker 10 Butt Fusion Data Logger
Welding Data Recording, Process Guidance and Traceability
Product Overview
Professional Data Logger for HDPE Butt Fusion Welding
Tracker 7 / Tracker 10 monitors welding pressure, heating plate temperature, and ambient temperature in real time, while recording key data throughout the butt fusion process.
It also provides step-by-step welding guidance, automatic result evaluation, data export, and joint traceability. Supports ISO 21307, DVS 2207, GOST R 55276, and custom welding parameters.
Technical Specifications
| Product Function | Description |
Real-Time Monitoring | Pressure, heating plate temperature and ambient temperature |
| Welding Guidance | 13-step butt fusion welding guidance |
Automatic Calculation | Calculates key welding parameters based on pipe size, wall thickness, material and standard |
Welding Data Recording | Records pressure, temperature, time, pipe, machine and project information |
Result Evaluation | Compares actual data with standard values and evaluates the welding result |
| Data Storage | Stores more than 10,000 welding records |
| Data Export & Printing | Supports data export and individual or batch welding record printing |
Technical Specifications
Product Function | Tracker 7 | Tracker 10 |
Touchscreen | Capacitive | Capacitive |
| Display Size | 7" | 10" |
Display Resolution | 1024 x 600 | 1280 x800 |
Overall Dimensions | 265*215 mm | 317*270 mm |
Net Weight | 1969 g | 2823 g |
| Input Voltage | 110/220 V, 50/60 Hz | 110/220 V, 50/60 Hz |
| Rated Power | 35W | 35W |
Pressure Range | 0-16 MPa | 0-16 MPa |
Temperature Range | 0-300°C | 0-300°C |
Temperature Sensor | PT100 | PT100 |
Operating Temperature | -10°C~60°C | -10°C~60°C |
Operation Demo with Tracker Data Logger
System & Compatibility
Item | Specification |
Application | HDPE Pipe Butt Fusion Welding |
Operating System | Android |
Data Capacity | 10,000+ Welding Records |
Welding Standards | ISO 21307/DVS 2207/GOST R 55276/Custom |
Pipe Standards | IS0 4427/1S0 4437/TIS 982/Other |
PE Materials | PE100/PE80/PE63 |
| Communication | RS485/TCP/BLE Bluetooth |
| USB Interface | USB-A |
| TF Card Capacity | Up to 512GB |
Wi-Fi | 2.4GHz |
Installation | Bracket Mounting |
Languages | 9 Languages |
Machine Compatibility | Universal for 160-1200 butt fusion machines; models above 120o require customization |
Real-Time Data Monitoring
Real-Time Data Monitoring
Monitor hydraulic pressure, heating plate temperature, and ambient temperature in real time with clear visual curves.
13-Step Welding Guidance
Step-by-step guidance covers the complete butt fusion process from preparation and facing to heating, changeover, pressure-up, and cooling.
Automatic Welding Parameter Calculation
Automatically calculates key welding parameters based on pipe size, wall thickness, material, and selected welding standard.
Welding Record Management
Organizes welding records by project, operator, result, date, and time for easier traceability and review.
Automatic Welding Result Evaluation
Compares actual welding data with standard values and identifies qualified or unqualified results with clear fault indications.
Data Storage, Export & Printing
Stores more than 10,000 welding records and supports data export, individual printing, and batch printing.
DOWNLOAD
PRACTICAL DETAILS
One-Touch Power Control
Simple operation with clear status indication.
Built-in Printer
Print welding records on site, with one roll of printing paper supplied as standa
Protected USB Port
Easy data export and record backup with a protective cover for field use.
Reliable Connections
Secure interfaces for power and sensor connection.
Product Gallery
WHAT WE CAN DO FOR YOU?
OUR SERVICES
WELPING develops, manufactures, and sells devices and systems for welding thermoplastics and, in this area, focuses consciously on pipeline systems as the main field of application. And We have been in this field for more than 17 years since 2005.
We aim to bring industrial level design, performance and quality together, to provide professional solutions for a variety of mining & industrial, marine, municipal, irrigation, energy and landfill to help you build reputation.
WELPING is committed to becoming a business for all thermoplastic pipe, which includes the fusion equipment and certified technical training to assist with the installation and fabrication of any plastic pipes related project. WELPING has continually broadened the scope of supply and usage for polyethylene pipe, valve, and fitting system design into new market segments. Also, We help our customers source pipe tools to support their projects. Our success is in the quality of our products and the knowledge and service of our people.
