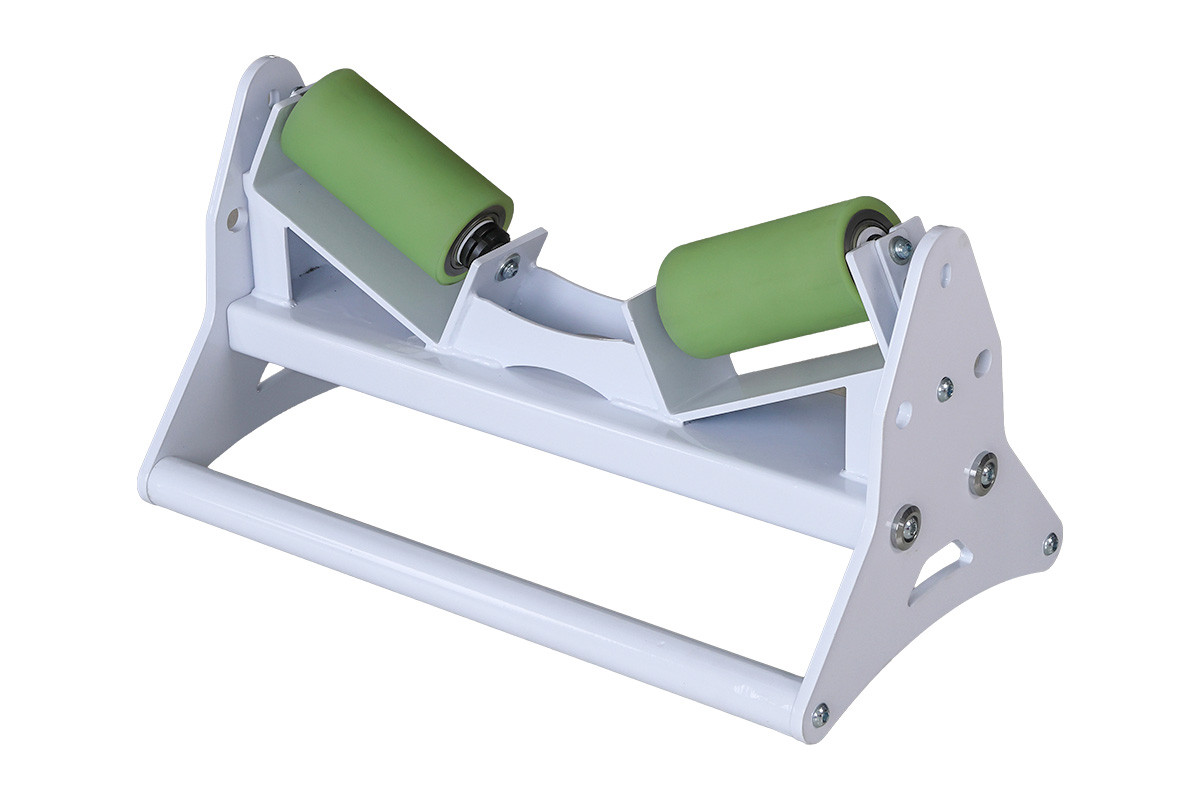

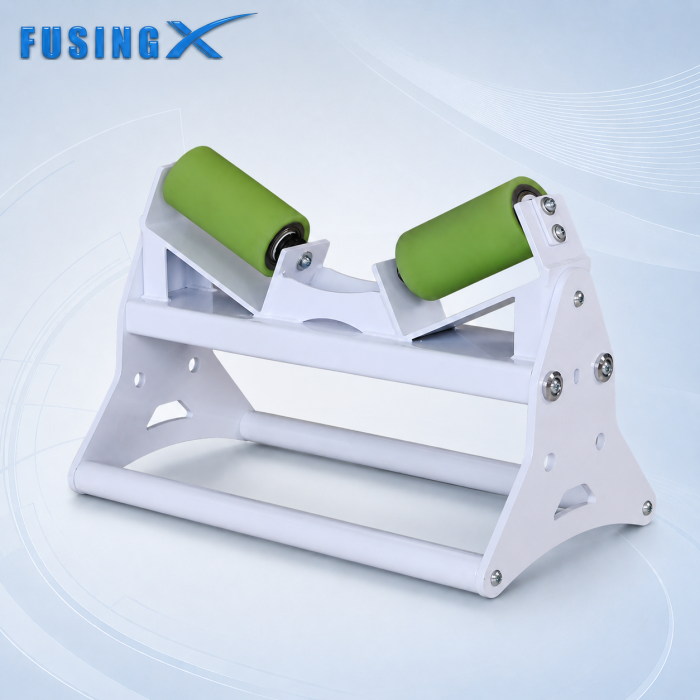

FusingX PS630 / PS1200 HDPE Pipe Support Roller Stand for Butt Fusion Welding
FusingX PS630 / PS1200 pipe support roller stands are designed for PE and HDPE pipe handling during butt fusion welding. Built with a thickened steel frame and rubber-coated smooth rollers, they help support heavy pipes, protect the pipe surface, and make pipe movement easier. Two height settings are available, with custom support height on request.
Detail Information
FusingX PS630 / PS1200 PE / HDPE Pipe Support Roller Stand
Adjustable pipe support for PE / HDPE butt fusion welding jobs
Designed for PE Pipe Support During Butt Fusion Welding
During butt fusion welding, proper pipe support helps with pipe alignment, movement, and handling. FusingX PS630 / PS1200 roller stands are designed to work with butt fusion welding machines and support PE / HDPE pipes during preparation, alignment, and welding.
The rubber-coated rollers allow the pipe to move forward and backward smoothly, while helping protect the pipe surface from direct metal contact.
Specifications
| Model | PS630 / PS1200 |
| Product Type | PE / HDPE Pipe Support Roller Stand |
| Suitable Pipe Material | PE / HDPE Pipe |
| Suitable Pipe Diameter | PS630: 160–630 mm / PS1200: 630–1200 mm |
| Roller Type | Rubber-coated roller |
Height Adjustment | Two-level adjustable |
Frame Structure | Thickened steel plate frame |
Customization | Custom support height available |
Application | Pipe Support for Butt Fusion Welding |
Two Models for Different Pipe Sizes
| Model | Suitable Pipe Diameter | Application |
| PS630 | 160–630 mm | Medium-size PE / HDPE pipe support |
| PS1200 | 630–1200 mm | Large-size PE / HDPE pipe support |
Both models are designed for use with PE / HDPE butt fusion welding machines. The suitable model can be selected according to pipe diameter and site handling requirements.
Key Features
Thickened Steel Frame
Built with a thickened steel plate frame to meet heavy-duty pipe support requirements.
Rubber-Coated Rollers
High-quality rubber-coated rollers help protect the pipe surface during movement.
Smooth Pipe Movement
The rollers rotate smoothly, making forward and backward pipe movement easier during welding preparation and adjustment.
Two-Level Height Adjustment
Two height settings are available to match different welding conditions and working setups.
Custom Support Height Available
For special working conditions, the support height of FusingX PS630 / PS1200 pipe support roller stands can be customized upon request. This helps the stands better match different butt fusion welding machines, pipe handling heights, and project site requirements.
Why Use Pipe Support Roller Stands?
Proper pipe support helps reduce pipe dragging on the ground and makes pipe positioning easier during butt fusion welding. For medium and large diameter pipes, roller stands help operators move the pipe with less effort and keep it at a suitable working height.
FAQ
Q: What is the main use of PS630 / PS1200 pipe support roller stands?
A: They are used to support PE / HDPE pipes during butt fusion welding and help make pipe movement easier.
Q: Will the rollers damage the pipe surface?
A: The rollers are rubber-coated to help protect the pipe surface during movement.
Q: Can the support height be adjusted?
A: Yes. The roller stand has two height settings.
Q: Can the height be customized?
A: Yes. Custom support height is available according to customer requirements.
Q: Which model should I choose?
A: PS630 is suitable for 160–630 mm pipes, while PS1200 is suitable for 630–1200 mm pipes.
