PE Electrofusion Pipe Scraper for HDPE Pipes PPS24 / PPS32
| Share | |
|---|---|
| Categories | FX Piping Tool |
| Brand | FusingX |
| Model | PPS24/PPS32 |
| Pipe capacity | 63–500 mm (PPS24) / 63–800 mm (PPS32) |
| Max. Scraping Length | 175 mm (PPS24) / 225 mm (PPS32) |
| Max. Pipe Thickness | 60mm (PPS24) / 80mm (PPS32) |
| Sta, Pack | 1 |
| Package Size Weight mm | 450*350*250(PPS24) / 600*350*300(PPS32) |
| Weight lbs | 15.4(PPS24) / 19.8(PPS32) |
| Weight kg | 7 kg (PPS24) / 9 kg (PPS32) |
Detail Information

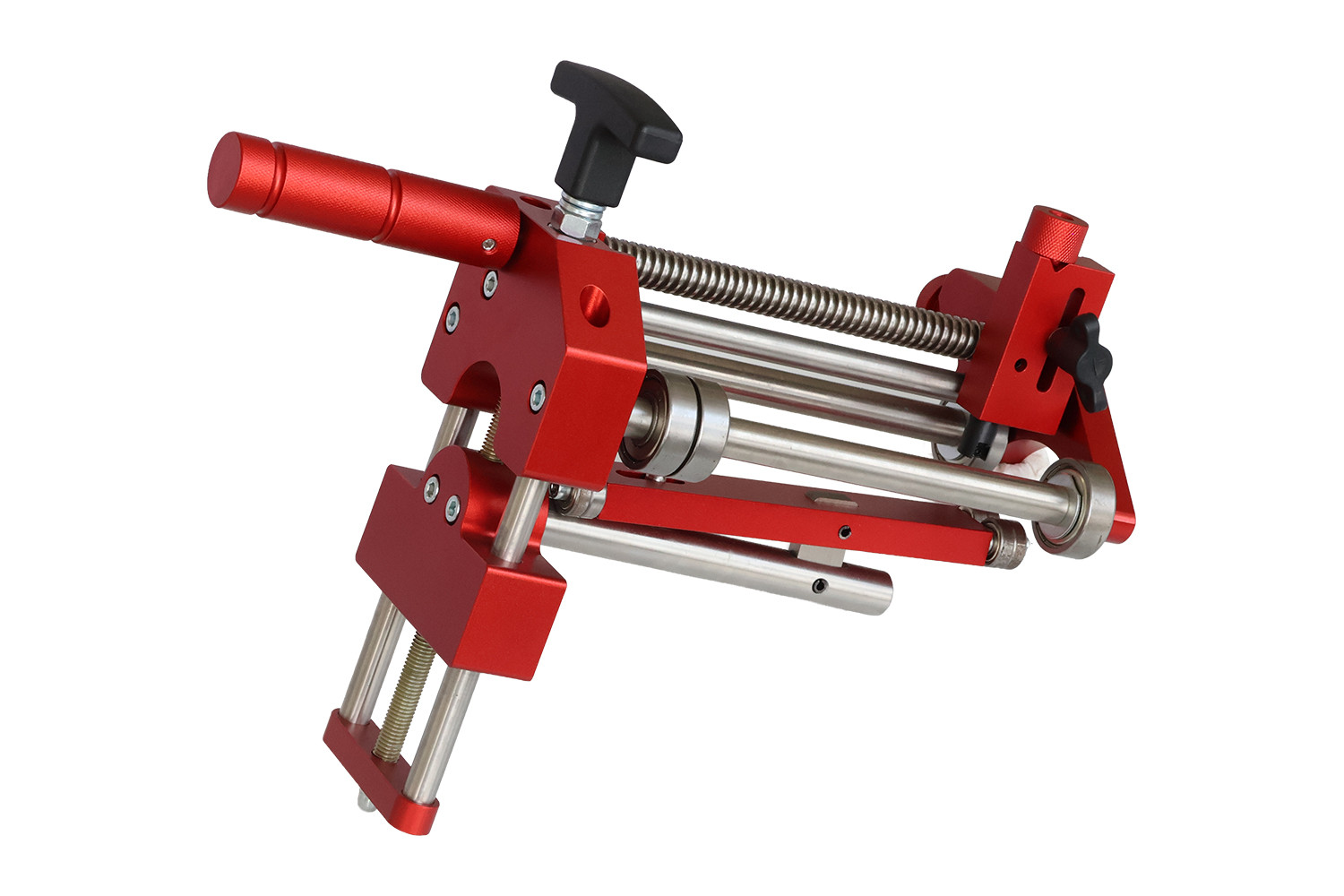

FUSINGX PPS Series PE Pipe Scraper
（Reliable Surface Preparation for Electrofusion）
Product Overview
PE Pipe Scraper
· Pipe material: PE / HDPE
· Working range: 63–500 mm (PPS24) / 63–800 mm (PPS32)
· Function: Mechanical surface scraping for electrofusion preparation
· Operation: Manual operation, suitable for on-site use

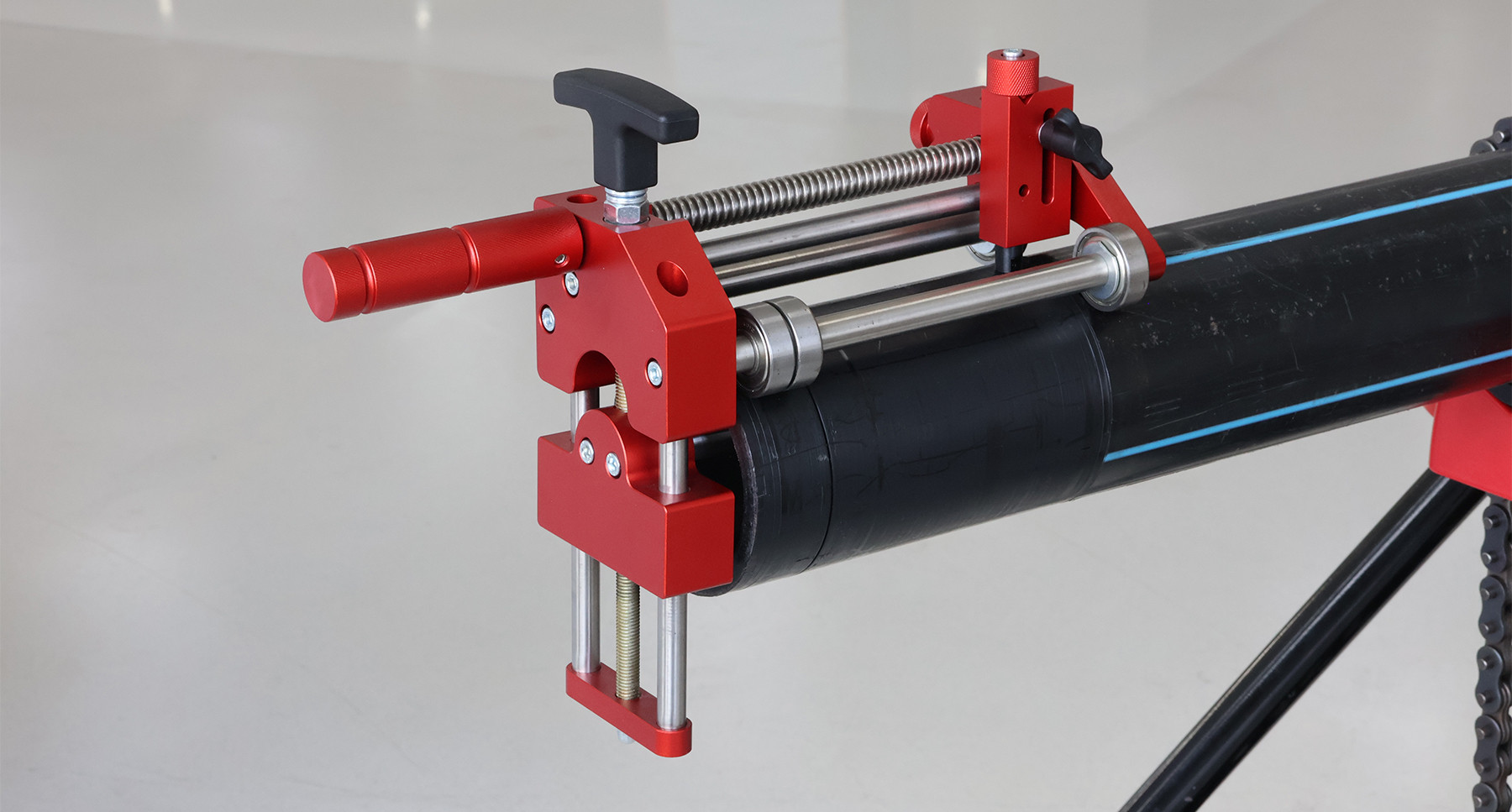

· Application: Removal of oxidation layer on PE pipes before electrofusion welding
Model Selection
| Catalog No | Model No | Pipe capaciy | Max. Scrapig Length | Max. Pipe
Thickness | Sta, Pack | Package Size mm | Weight lbs | Weight kg |
| 720030 | PPS24 | 63-500mm | 175mm | 60mm | 1 | 450*350*250 | 15.4 | 7 |
| 720040 | PPS32 | 63-800mm | 225mm | 85mm | 1 | 600*350*300 | 19.8 | 9 |
Key Features
Reliable surface preparation for electrofusion
Consistently removes the oxidation layer from PE pipe surfaces, providing a clean and uniform pipe end for high-quality electrofusion joints.
Spring-loaded blade for uniform scraping
The spring-loaded mechanism maintains constant contact pressure between the blade and the pipe wall, automatically compensating for minor ovality and surface variation.
Clear and independent adjustment control
Scraping depth, pressure, and scraping length can be adjusted and locked independently, allowing precise and repeatable setup on site.
Low rotational mass for stable operation
The low rotational mass design reduces swinging and vibration during scraping, resulting in smoother operation and better control, especially on larger pipe diameters.
Wide working range with durable construction
PPS24 covers Ø63–500 mm and PPS32 covers Ø63–800 mm.
Equipped with a carbide scraper blade, designed for long service life in demanding site conditions.
One-line positioning：
PPS24 / PPS32 is designed to deliver consistent, controllable pipe surface preparation before electrofusion welding.
FX Series – System View
FusingX FX Series – System View
FX series focuses on professional pipeline fusion systems.
· Electrofusion fittings
· Electrofusion control units
· Butt fusion machines
