FusingX PPR Male Socket | PPR x Brass Male Thread Fitting | DN20–63
| Share | |
|---|---|
| Categories | PPR Threaded Fittings |
| Brand | FusingX |
| Model | S20–S63 × 1/2"–2" (M) |
| Material | PP-R (Polypropylene Random Copolymer) |
| Insert Material | Brass / Nickel-plated Brass |
| Connection Type | Socket fusion + Male thread |
| Structure | Socket |
| Thread Type | Male Thread (M) |
| Size Range | DN20–DN63 |
| Working Temperature | Up to 95°C |
| Applicable Standards | • PP-R system: ISO 15874 • Thread: ISO 228-1 (BSP) |
| Color Options | Green / Orange |
Detail Information

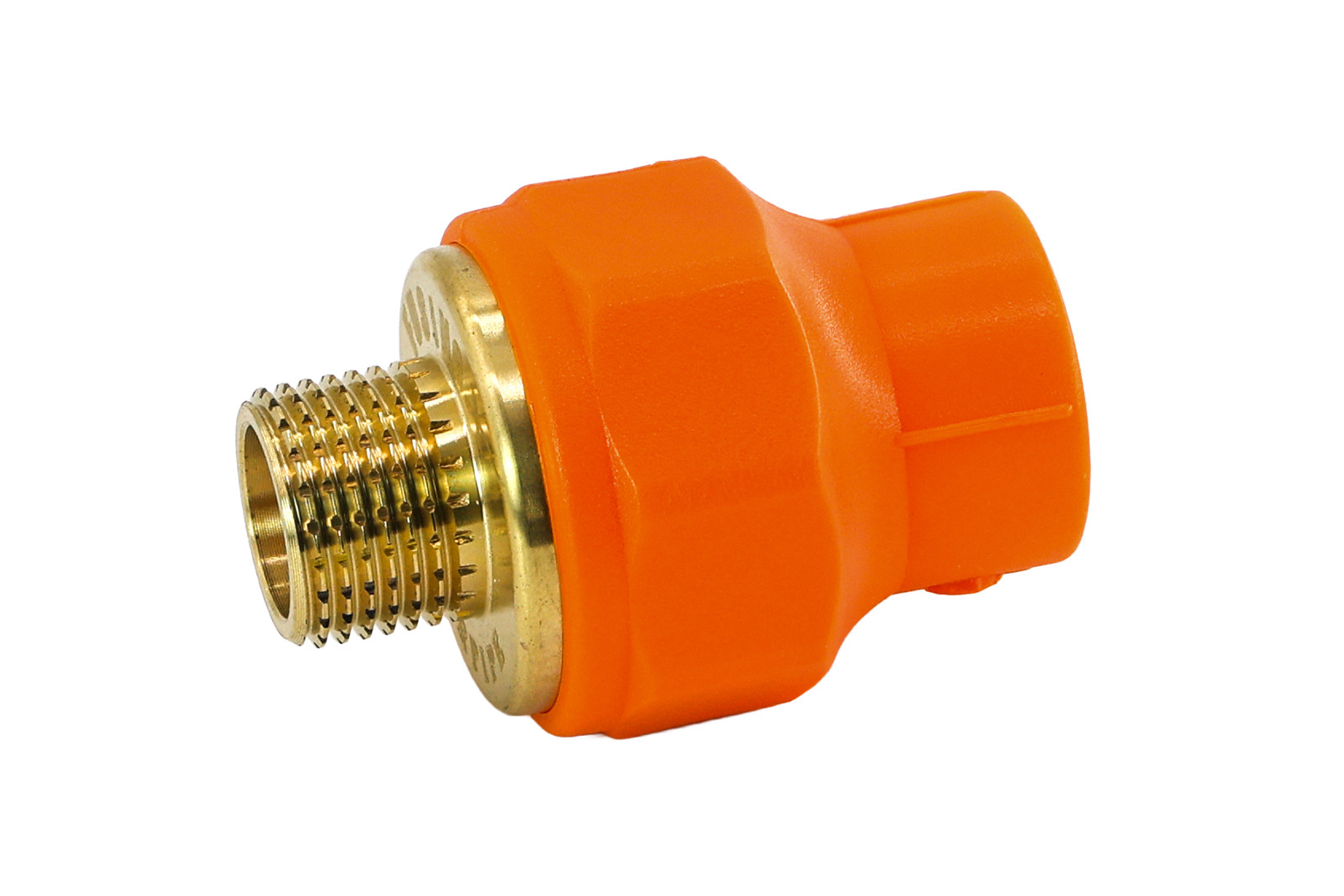

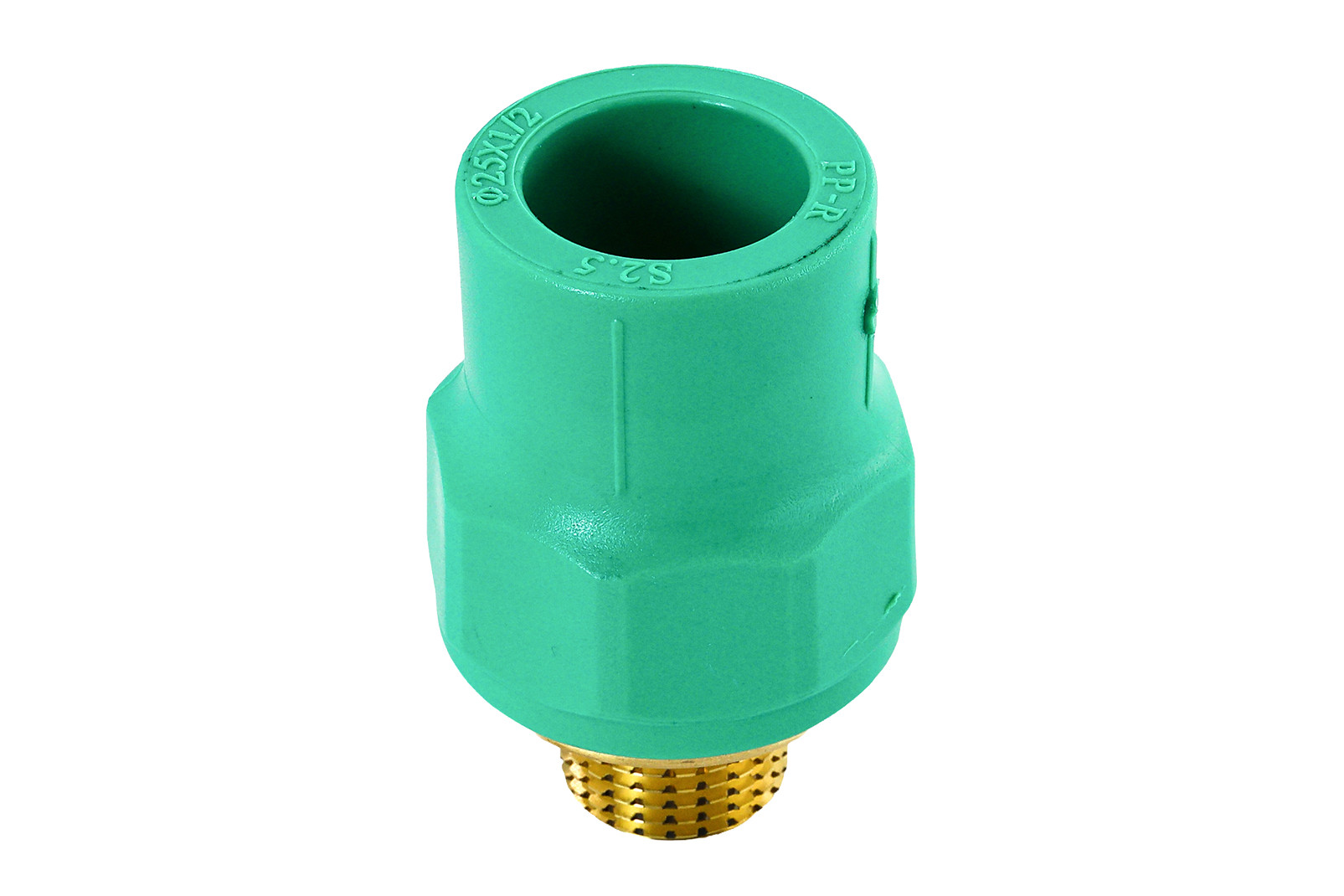

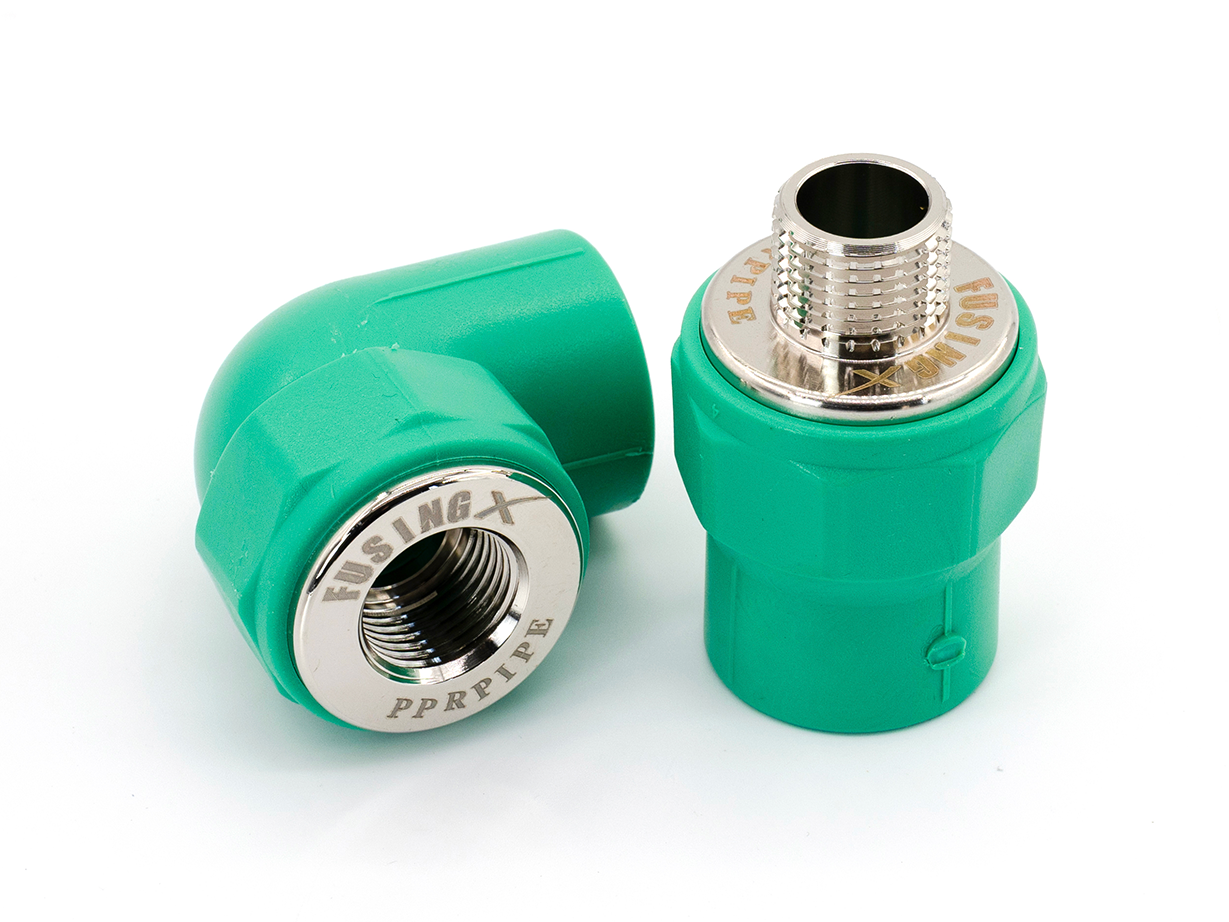

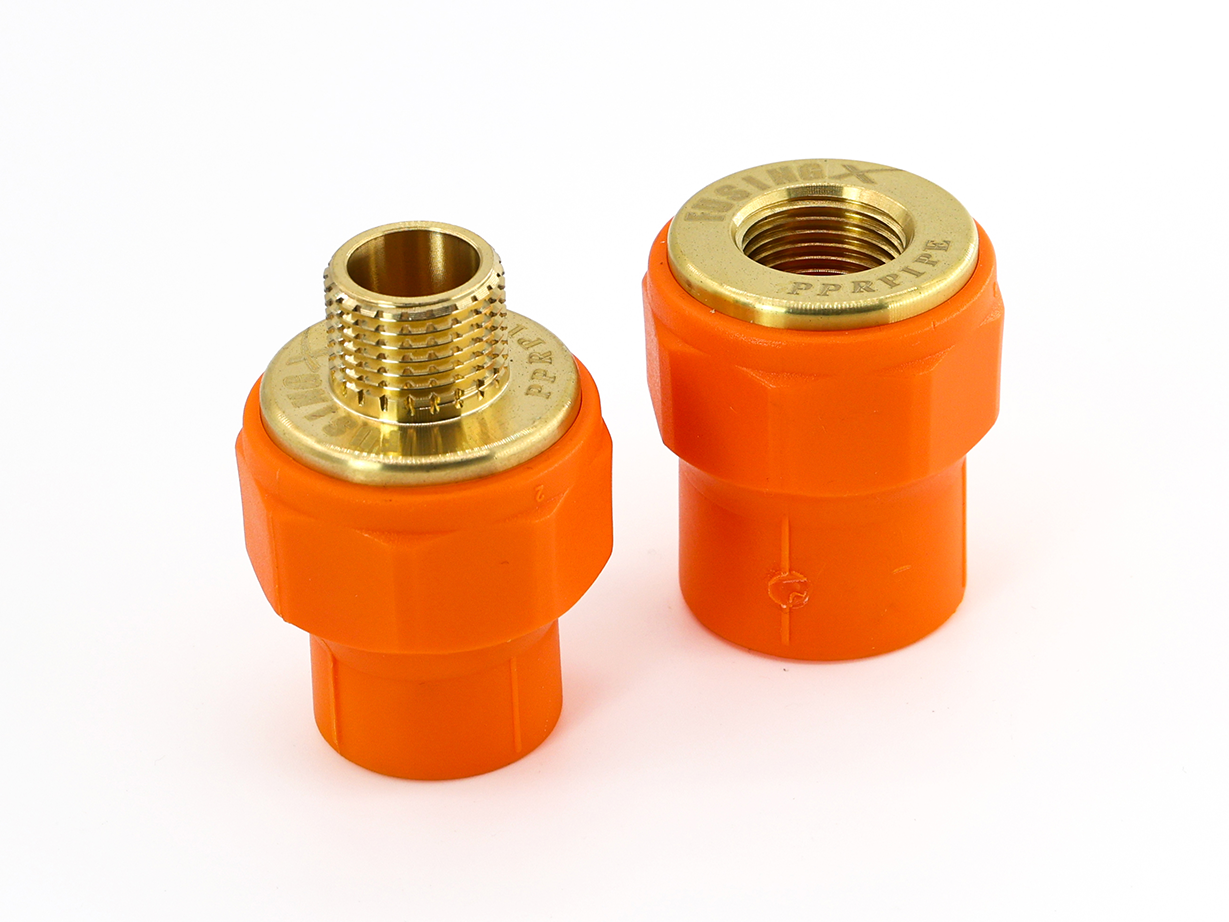

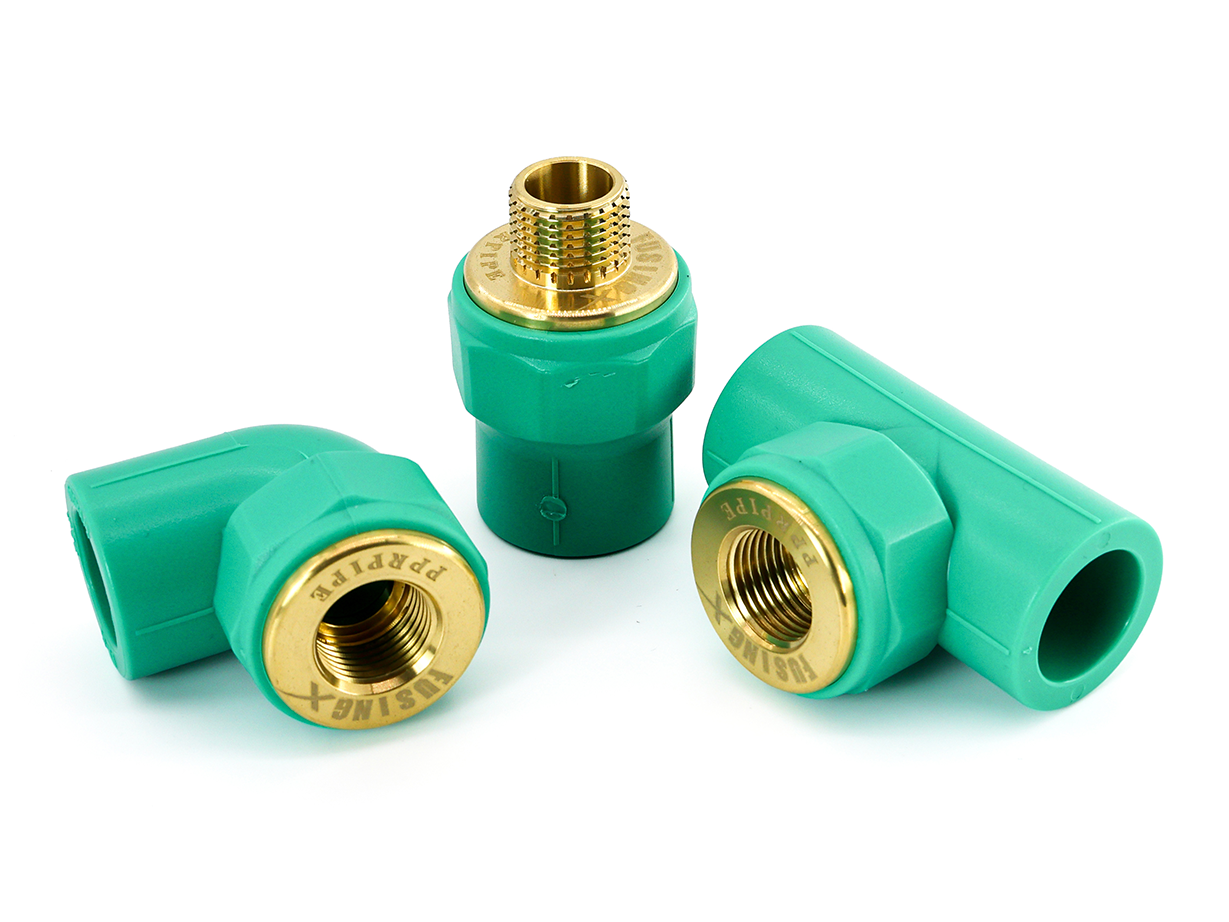

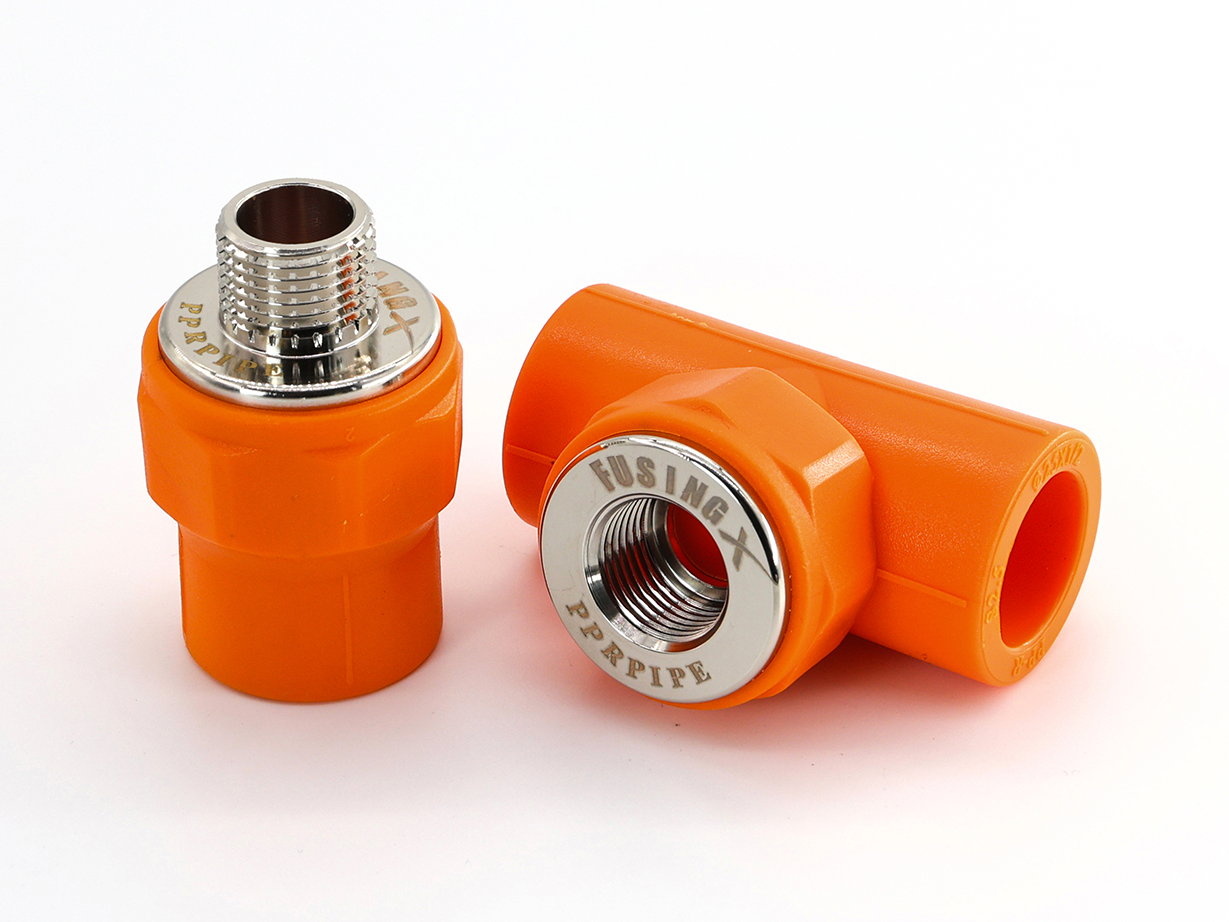

FusingX PP-R Male Socket
(Socket fusion end with male threaded metal insert)
Overview
The PPR male socket is designed to connect PPR pipes to threaded components in piping systems.
Combines socket fusion connection with an integrated brass male thread for flexible installation.
Technical Information
| Material: | PP-R (Polypropylene Random Copolymer) |
| Insert Material: | Brass / Nickel-plated Brass |
| Connection Type: | Socket fusion + Male thread |
| Socket: | Socket |
| Applicable Standards: | · PP-R system: ISO 15874· Thread: ISO 228-1 (BSP) |
Color: | Green / Orange |
Specifications
Model | Pipe Size (mm) | Thread (inch) |
S20×1/2M | 20 | 1/2" |
S20×3/4M | 20 | 3/4" |
S25×1/2M | 25 | 1/2" |
S25×3/4M | 25 | 3/4" |
S32×1/2M | 32 | 1/2" |
S32×3/4M | 32 | 3/4" |
S32×1"M | 32 | 1" |
S40×1 1/4M | 40 | 1 1/4" |
S50×1 1/2M | 50 | 1 1/2" |
S63×2"M | 63 | 2" |
Key Features
Male Thread Connection
Standard male thread for connection with female threaded fittings.
Socket Fusion End
Socket end is designed for secure fusion with PP-R pipes.
Metal Insert Options

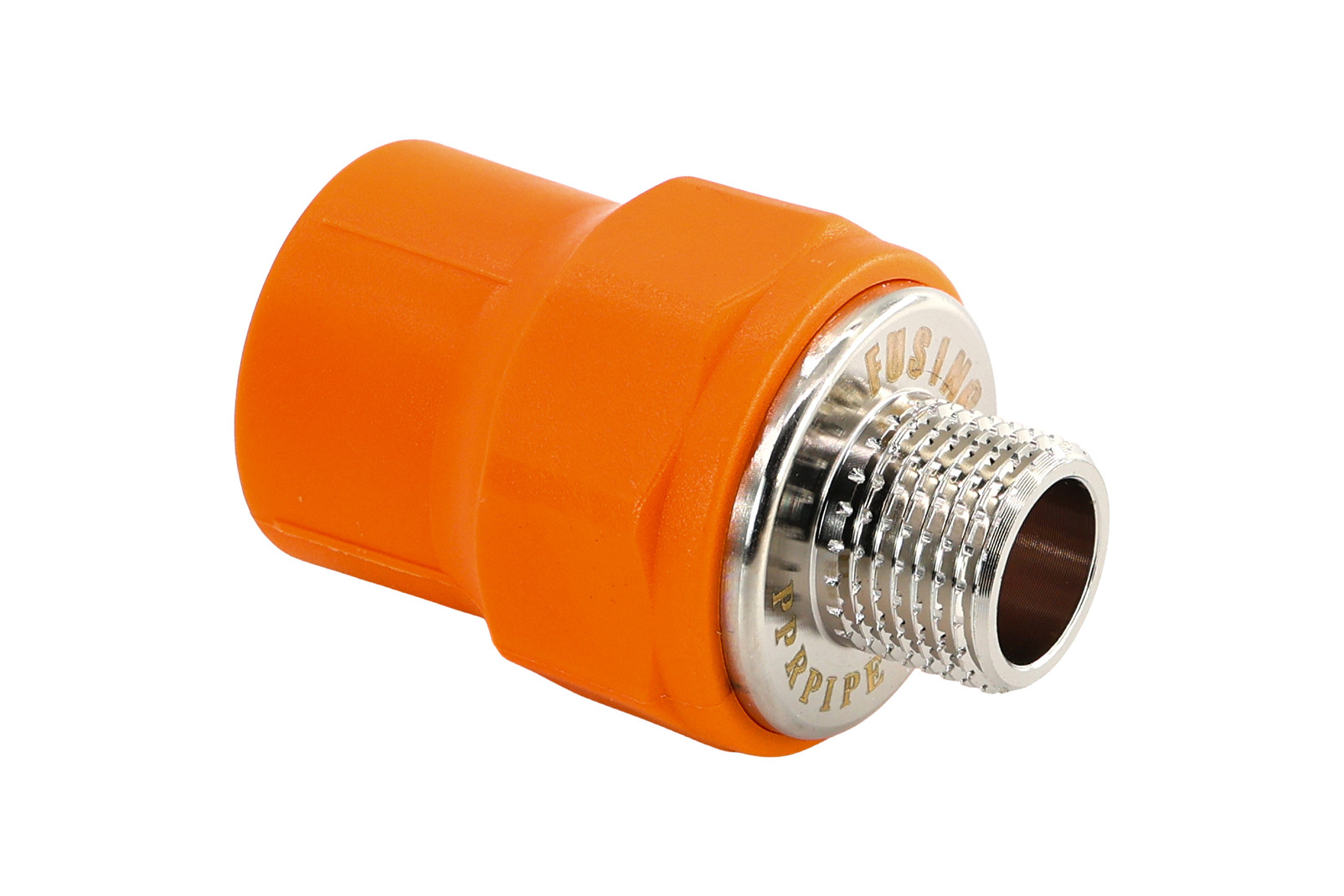

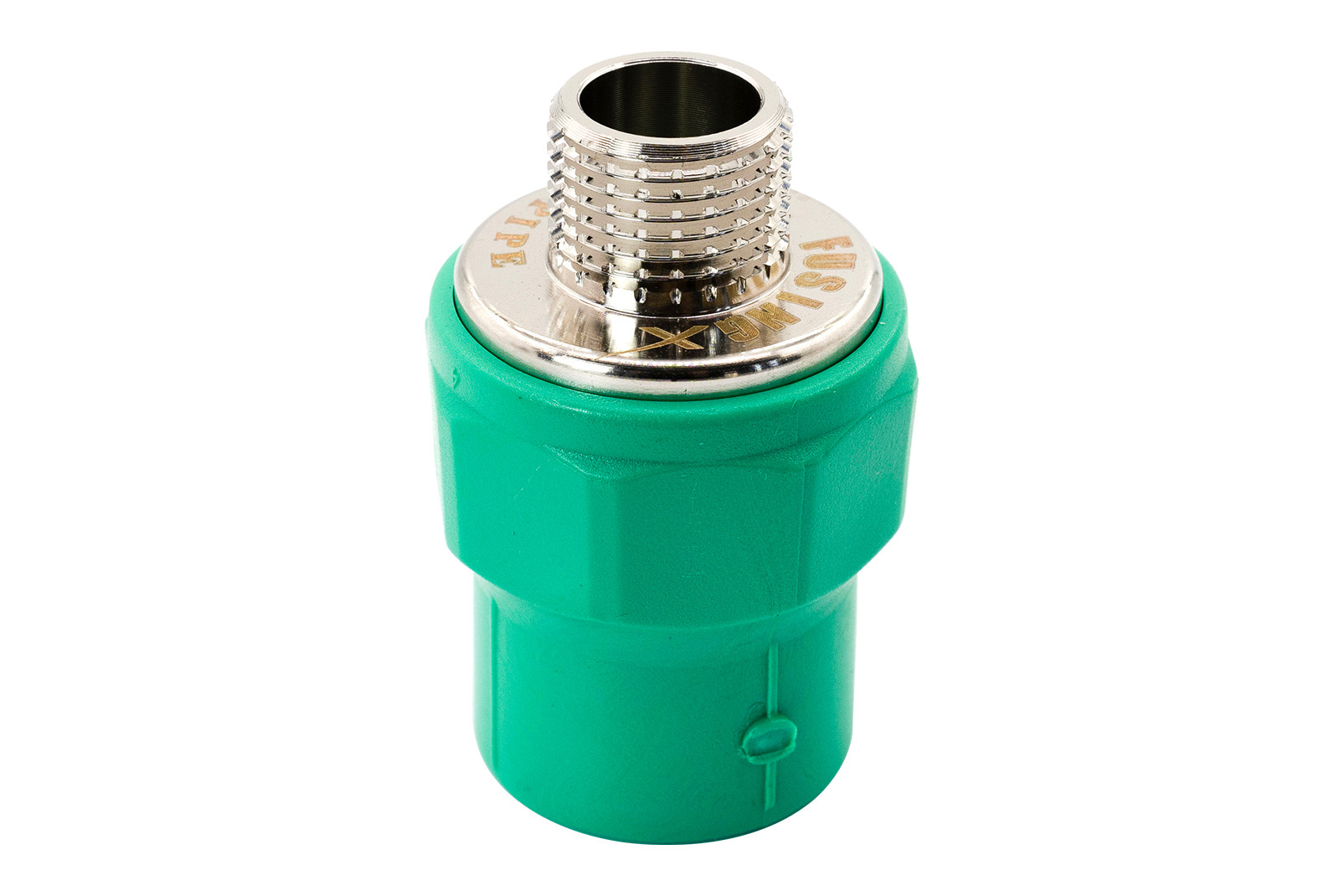

Available with brass or nickel-plated brass insert options.
Compact Body Design
Integrated body design for stable structure and easy installation.
Details

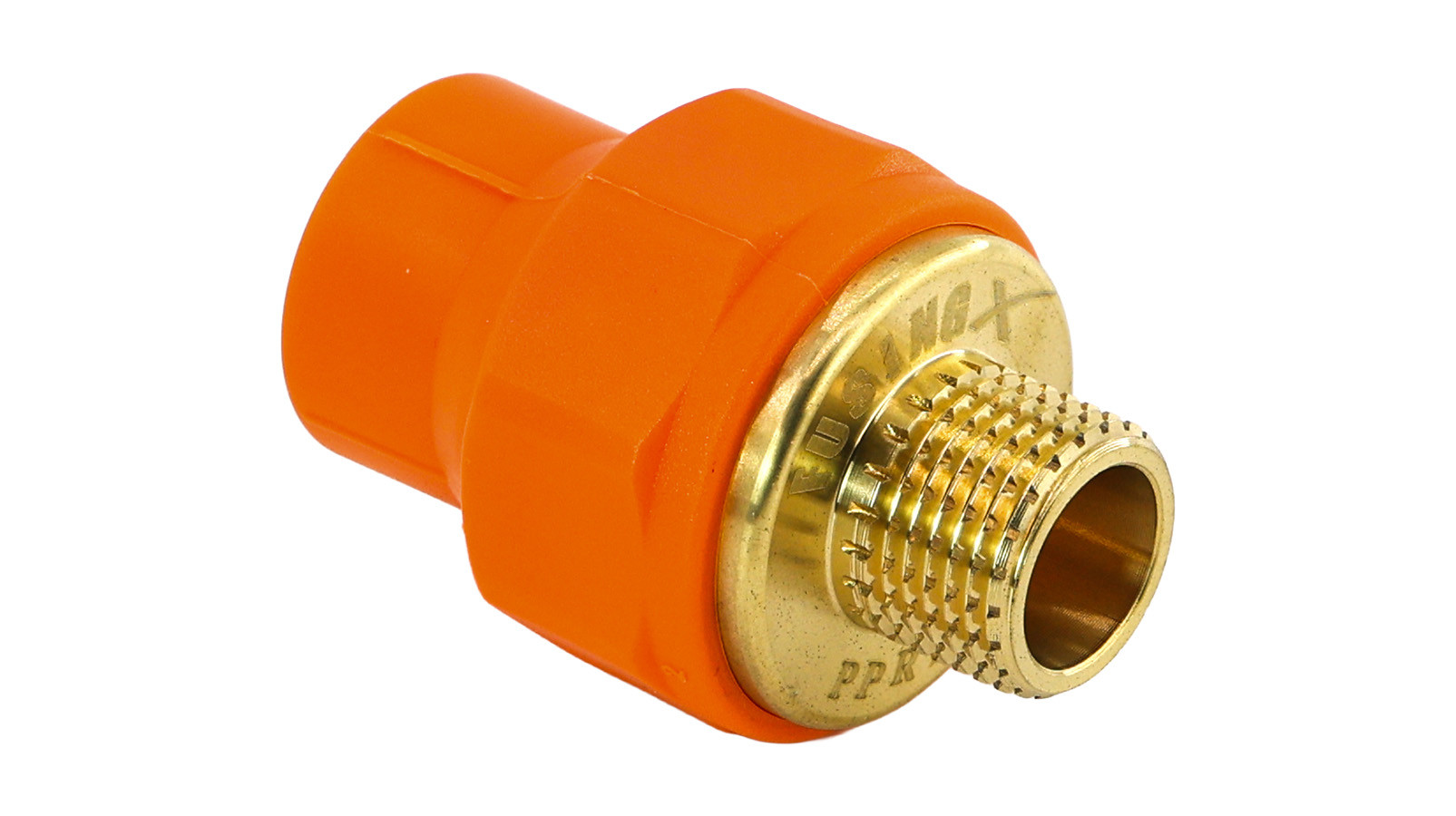

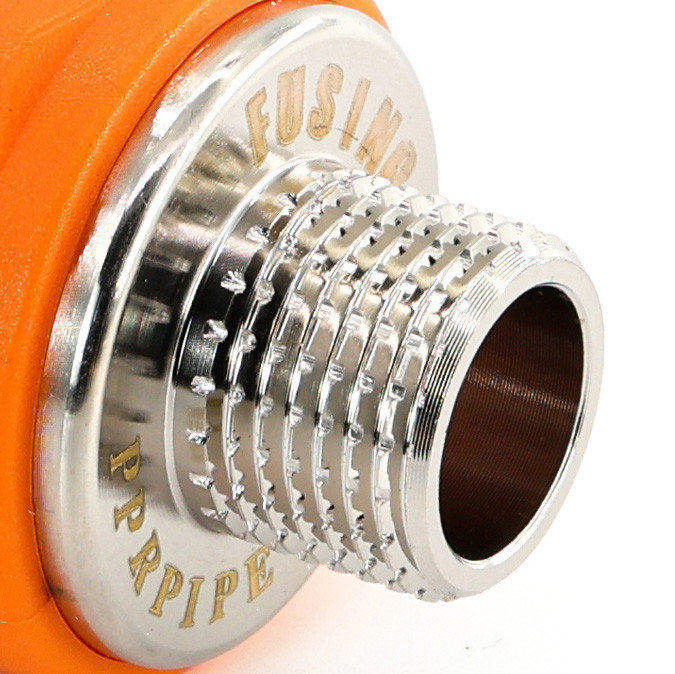

Male Thread
Precision-machined external thread ensures secure connection with female threaded fittings.

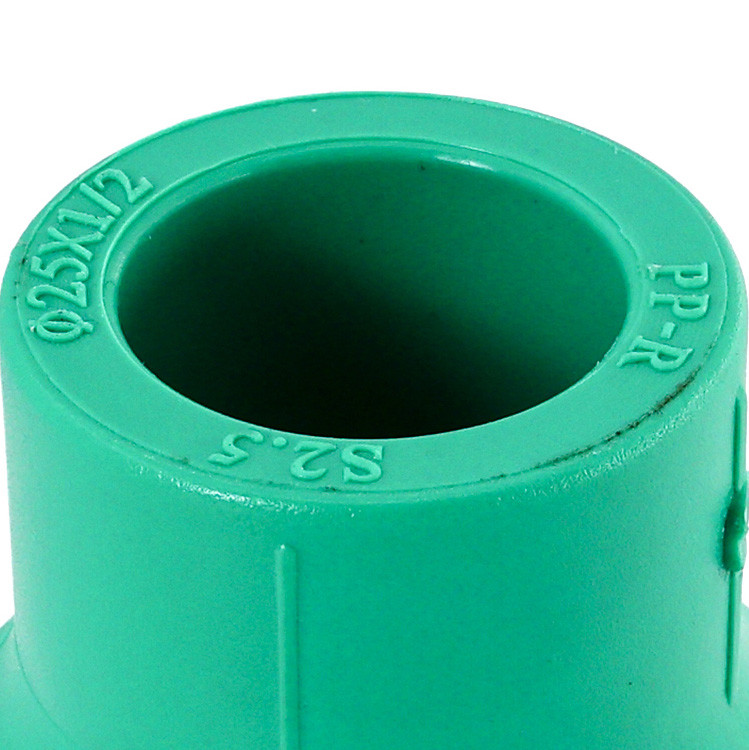

Socket End
Designed to match standard PP-R fusion dimensions for consistent welding.

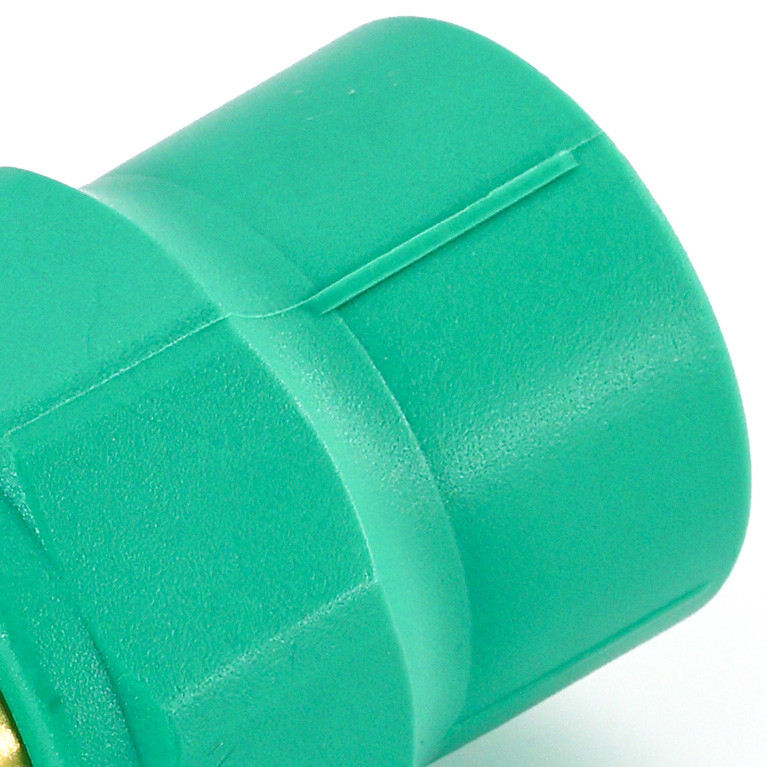

Integrated Body
Integrated PP-R body with firmly embedded brass insert for stable structure.
Installation
· Heat the PPR pipe and socket using a fusion welding machine
· Insert the pipe into the socket without rotation
· Allow proper cooling time
· Connect threaded part with compatible fittings
Applications
Widely used in:
· Municipal water supply
· Residential plumbing systems
· Commercial piping systems
· Industrial water distribution
