A Practical Pipe Support Option for PE Butt Fusion: FusingX PS630 / PS1200 Pipe Support Stands
In PE / HDPE butt fusion welding, pipe support is a small part of the job, but it can make a clear difference during setup.
Before welding, the pipe needs to be moved, aligned, faced, heated, and finally joined. For medium and large diameter pipes, these steps are not always easy if the pipe is not supported at the right height or if it has to be dragged directly on the ground.

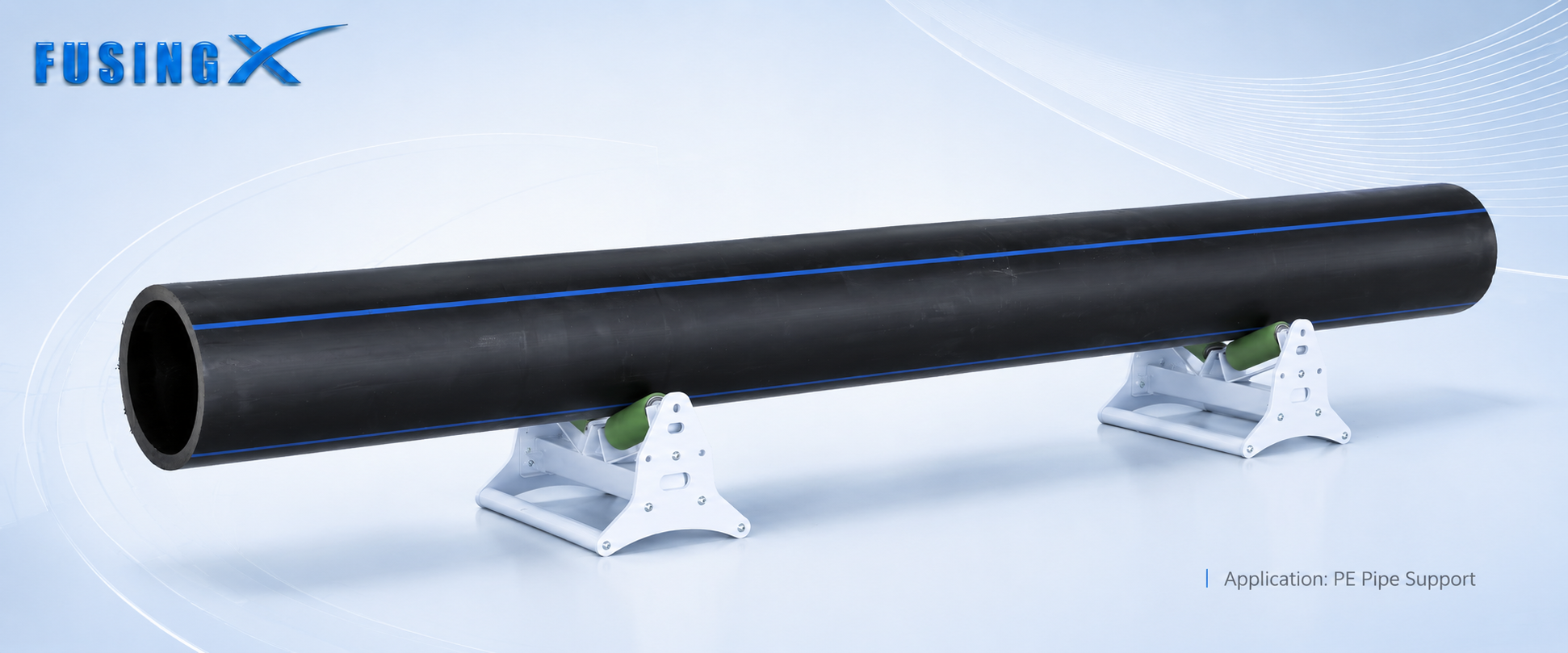

To help with this part of the work, FusingX has introduced the PS630 / PS1200 pipe support roller stands. These stands are used together with PE / HDPE butt fusion welding machines to support the pipe and make forward and backward movement easier during welding preparation.
Why Pipe Support Matters During Butt Fusion Setup
A butt fusion welding machine is the main equipment in the welding process, but the pipe support around it also matters.
During setup, operators often need to adjust the pipe position several times. The pipe may need to move closer to the facer, align with the clamps, return for heating, or shift slightly before the final welding step. Without a proper support stand, this movement can become slow and difficult, especially when the pipe diameter is large.

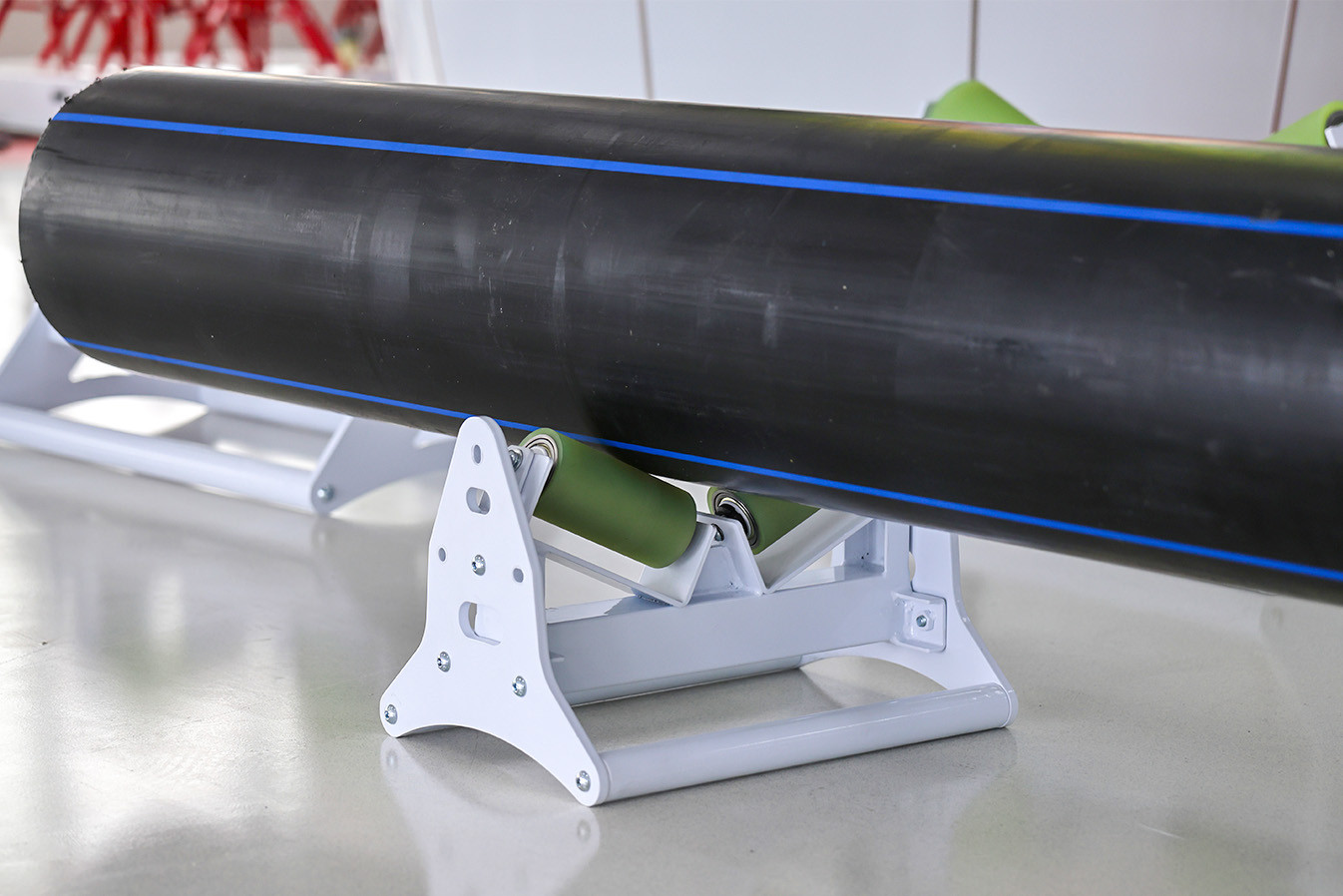

A roller-type pipe support helps reduce direct friction between the pipe and the ground. It keeps the pipe at a more suitable working height and allows the pipe to move more smoothly when adjustment is needed.
For pipe fabrication workshops and jobsite welding work, this kind of support is simple but useful.
Two Models for Different Pipe Sizes

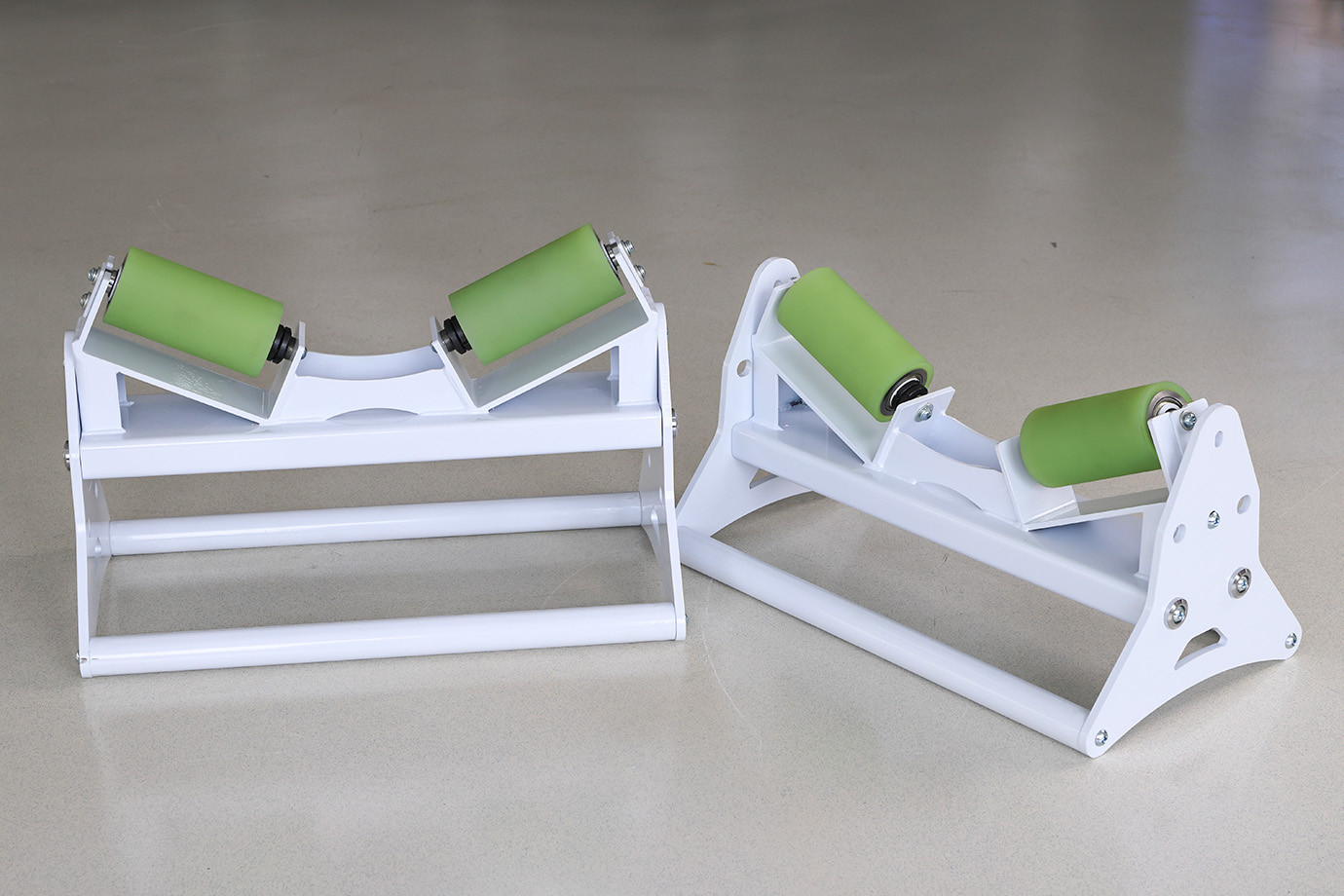

FusingX PS630 and PS1200 are made for different pipe diameter ranges, so users can choose according to the actual pipe size and working conditions.
| Model | Suitable Pipe Diameter | Main Application |
| PS630 | 160–630 mm | Medium-size PE / HDPE pipe support |
| PS1200 | 630–1200 mm | Large-size PE / HDPE pipe support |
The PS630 is suitable for medium-size pipe welding work, while the PS1200 is intended for larger PE / HDPE pipes. Both models can be used as auxiliary support tools for butt fusion welding machines.
Thickened Steel Frame for Heavy-Duty Use

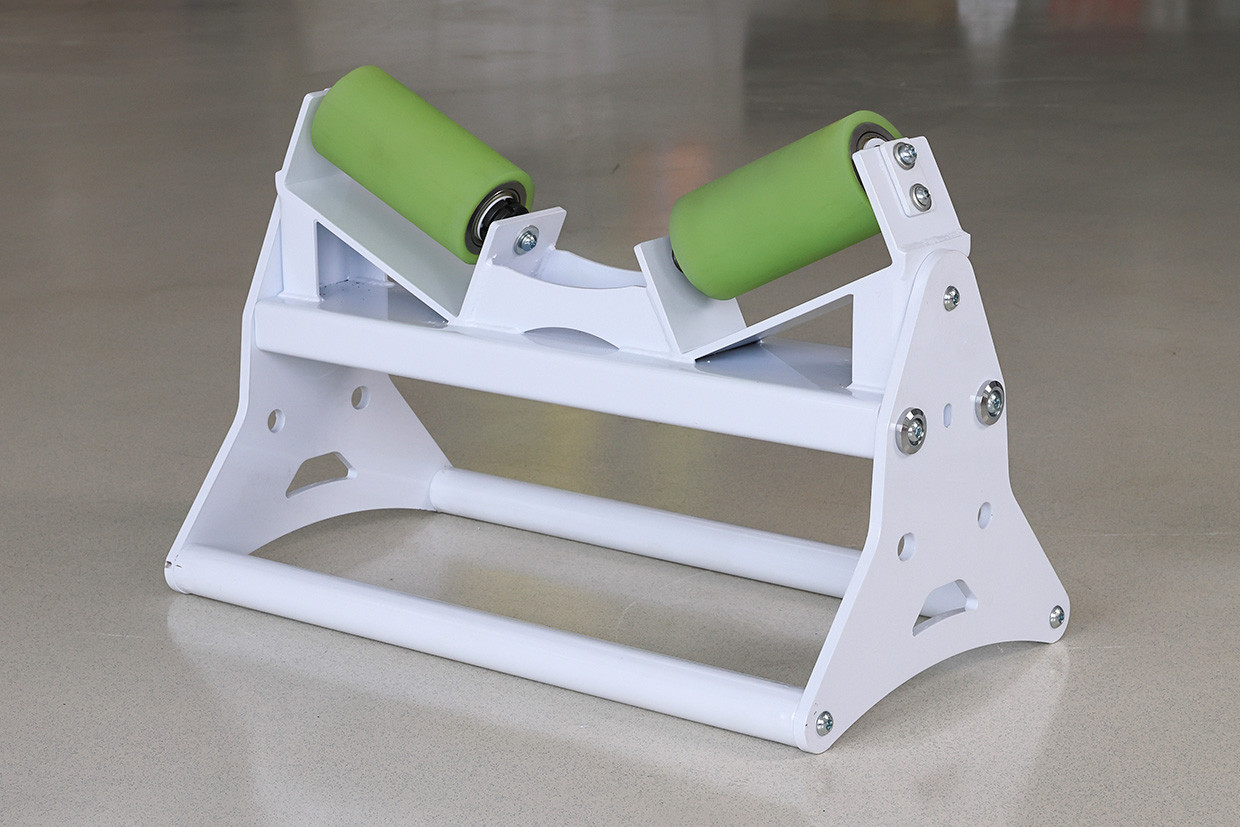

The PS630 / PS1200 pipe support stands use a thickened steel plate frame. This gives the stand a stable structure for supporting medium and large diameter pipes.
In real working conditions, a pipe support stand does more than hold the pipe in place. It also needs to remain steady when the pipe is moved forward or backward during alignment and welding preparation.
For this reason, the frame structure is an important part of the product. A strong
Rubber-Coated Rollers for Pipe Surface Protection

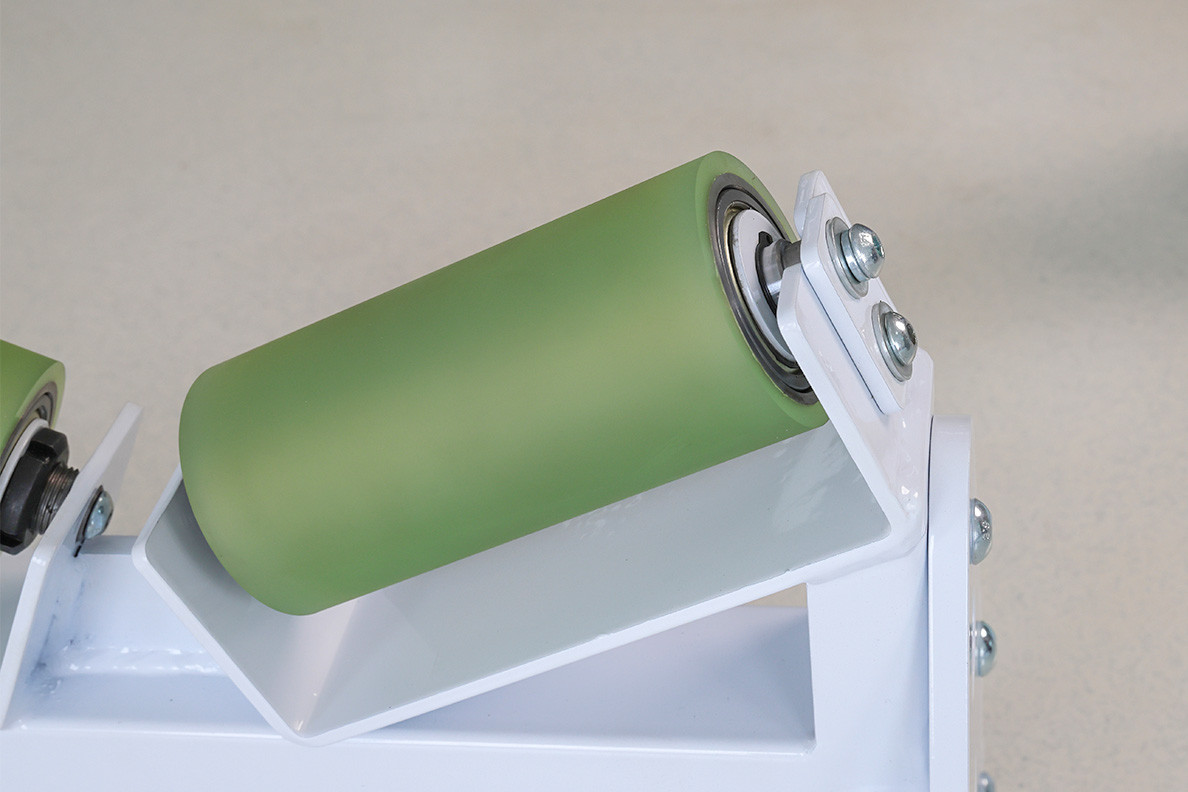

The rollers are rubber-coated to reduce direct hard contact with the pipe surface.
This is useful when handling PE / HDPE pipes, because the pipe often rests on the rollers while being moved or adjusted. Compared with bare metal contact, rubber-coated rollers are more suitable for supporting the pipe during movement and can help reduce surface marks caused by hard contact.
The design is straightforward, but it fits the daily needs of butt fusion preparation work.
Smooth Pipe Movement During Welding Preparation
One of the main purposes of a pipe support roller stand is to make pipe movement easier.
During butt fusion setup, the pipe may need to be moved several times to match the clamp position, facing position, heating position, and final joining position. If the support point creates too much resistance, every adjustment becomes more difficult.
With smooth-rolling rollers, the PS630 / PS1200 stands allow the pipe to move forward and backward more easily. This is especially helpful when working with heavier pipes, where small adjustments can otherwise require much more effort.
Two Height Positions for Different Working Conditions
Different welding machines, pipe sizes, and jobsite layouts may require different pipe support heights.
The PS630 / PS1200 stands provide two height positions, giving operators more flexibility when matching the stand with the welding machine and the pipe centerline. This makes the stands more adaptable for both workshop and jobsite use.
The adjustment is not complicated, but it gives users a practical way to work with different pipe welding setups.
Custom Support Height Available
For some projects, standard support height may not be enough.
A customer may need the support stand to match a specific butt fusion machine, an existing work platform, or a particular pipe handling arrangement. In these cases, FusingX can provide custom support height according to project requirements.
This option makes the PS630 / PS1200 stands more suitable for users who need a better fit between the support stand, the welding machine, and the actual working environment.
Suitable for Workshops and Jobsites
FusingX PS630 / PS1200 pipe support roller stands can be used in PE / HDPE pipe welding work in fabrication workshops, construction sites, and pipe installation projects.
They are not the most complex part of a welding system, but they are a practical support tool. For jobs that involve frequent pipe movement, alignment, and adjustment, a suitable pipe support stand can make the preparation process easier and more organized.
Learn More
FusingX PS630 / PS1200 pipe support roller stands are now available. For product images, specifications, and model details, please visit the product page:
