FX1200 Butt Fusion Welding Machine: Key Details for Large-Diameter Pipe Welding
In large-diameter PE and HDPE pipe welding, a butt fusion machine does more than heat and join pipe ends. As pipe size increases, the machine must handle heavier pipe sections, higher working loads, and more demanding alignment conditions.
With our newly updated FX1200 product photos, this article takes a closer look at several practical design details behind the machine. These details may not always appear in a specification table, but they matter a lot in real jobsite use.
Built for Large-Diameter Pipe Welding

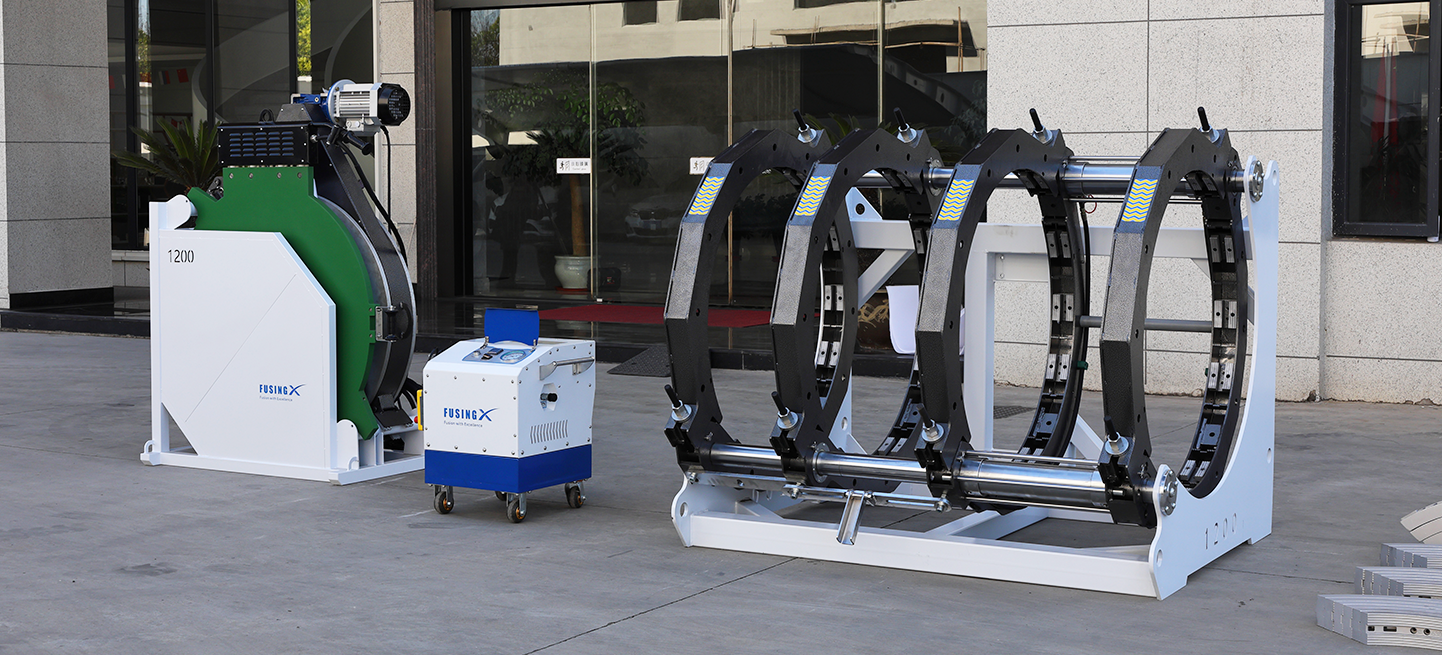

The FX1200 is designed for large-diameter PE and HDPE pipe welding applications. Compared with smaller machines, a 1200mm-class butt fusion machine needs to support heavier pipes and maintain stable movement during clamping, facing, heating, changeover, and pressure holding.
For this reason, the FX1200 is not simply a larger version of a smaller machine. Its structure is designed around the working conditions of large-diameter pipe welding. A strong and stable frame provides a solid base for pipe holding and pipe movement, helping the operator keep the welding process more consistent.
On site, this kind of structural stability is often more important than a simple size number. Large-diameter welding requires a machine that can work under load, not just a machine that can fit a large pipe.
Wide Inserts and Anti-Slip Pads for Stable Pipe Holding

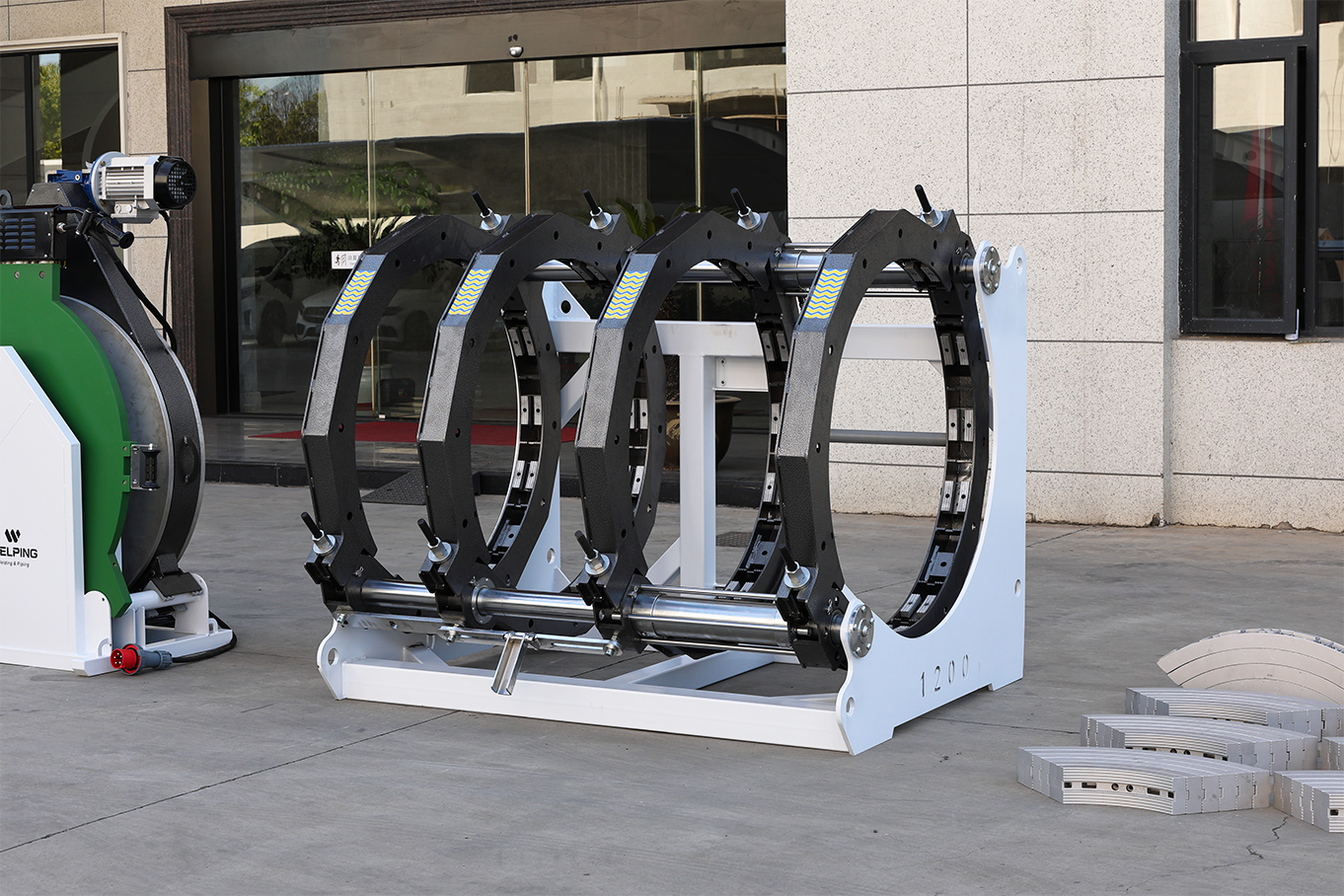

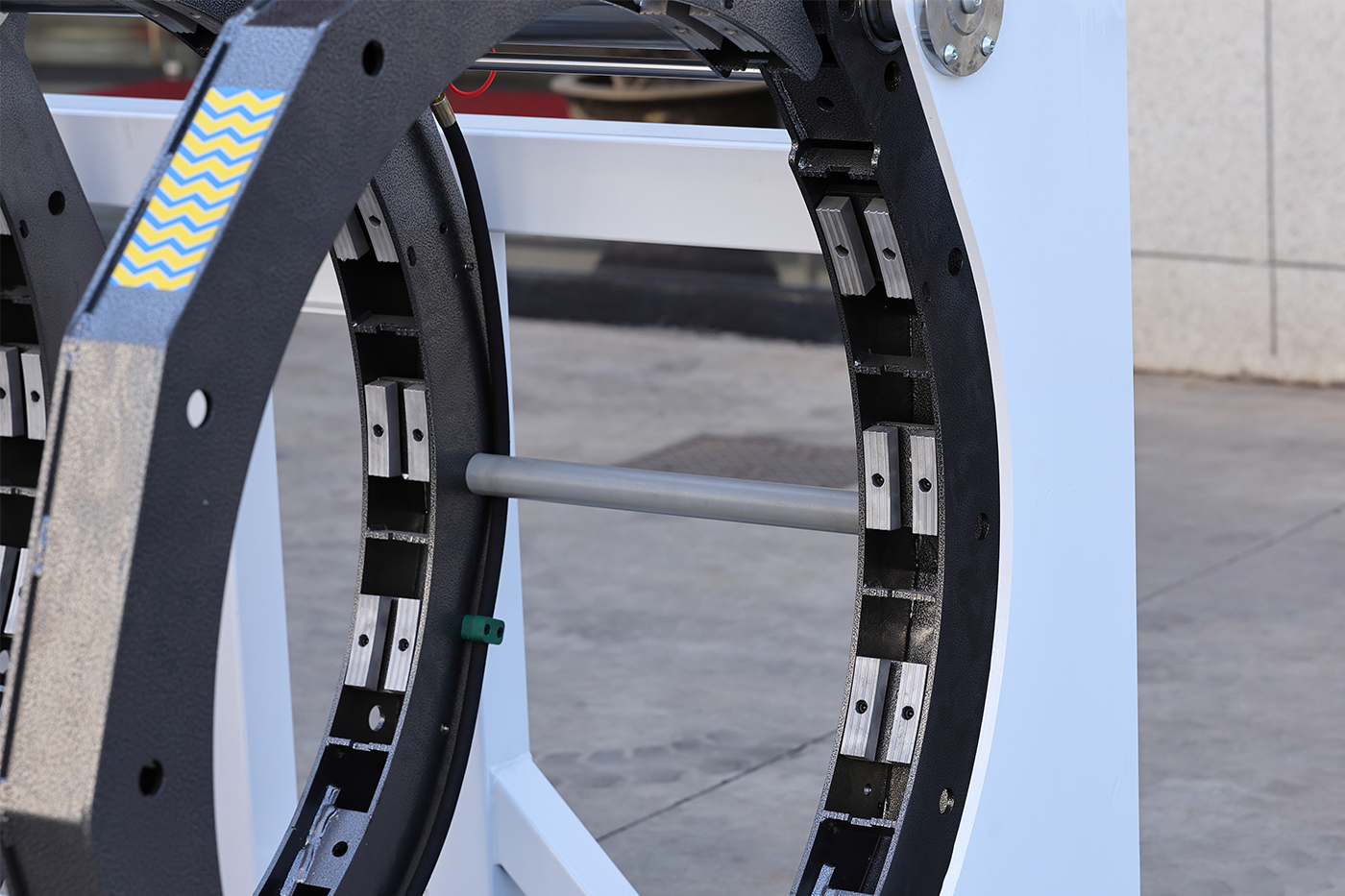

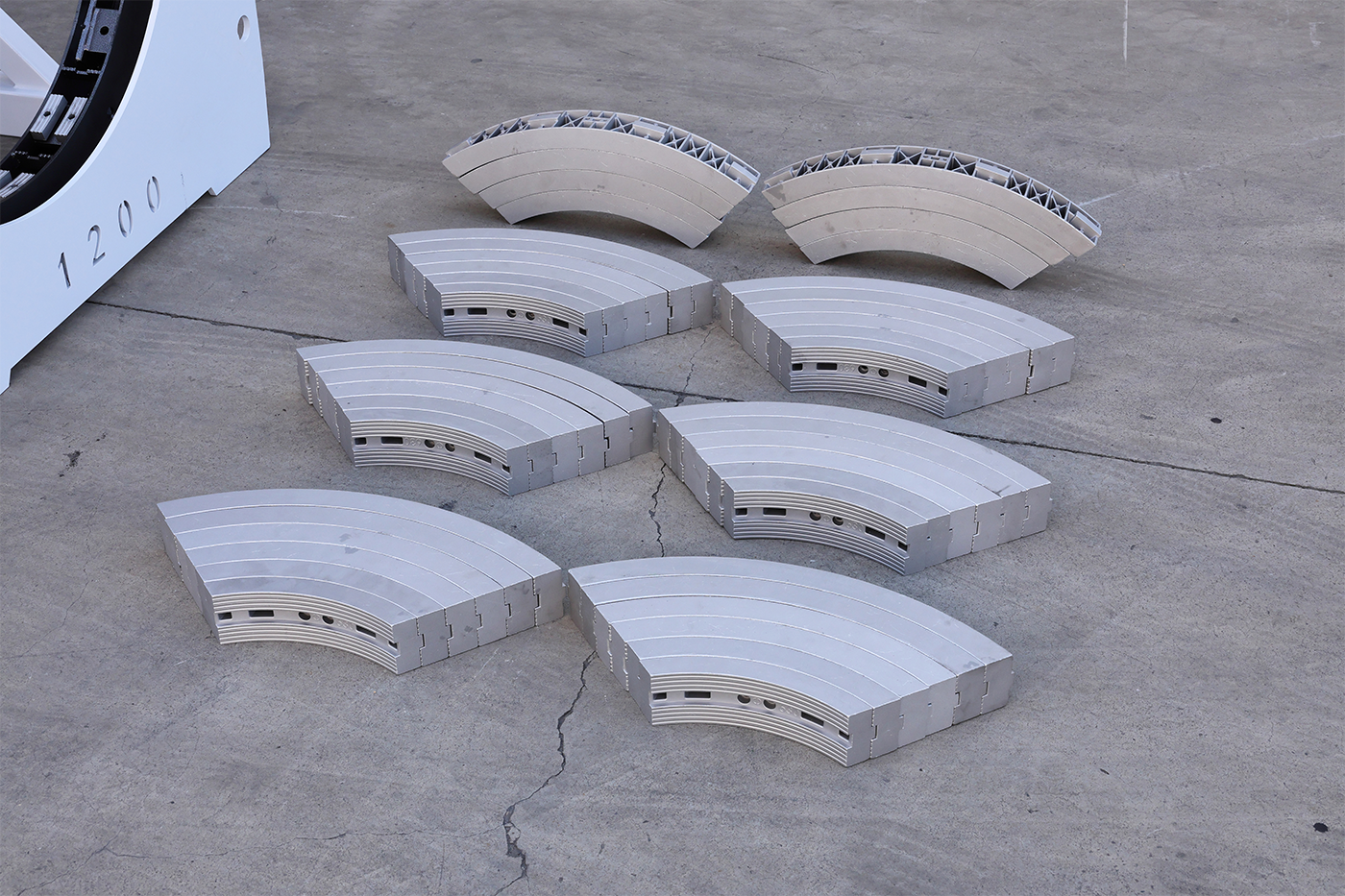

Pipe holding is one of the most important parts of large-diameter welding. The FX1200 is supplied with multiple sizes of die-cast aluminum inserts to match different pipe diameters. The 1/4-circle inserts feature a wider contact surface, giving the pipe better support during clamping.
The machine is also equipped with anti-slip pads. These pads can be installed independently and adjusted according to the working condition. Their purpose is simple but practical: to increase the contact area with the pipe surface and improve friction during clamping.
When welding large pipes, the pipe weight is much higher, and unwanted movement can affect alignment and pressure holding. Anti-slip pads help reduce this risk by making pipe holding more secure.
They are also useful when working with pipes that are slightly smaller than the standard size or have minor dimensional variation. With proper adjustment, the pads help the machine hold the pipe more reliably.
Reinforced Facer for Stable Pipe End Facing
Pipe end facing is a key preparation step before butt fusion welding. This step directly affects later alignment, heating, and joint quality. For large-diameter pipes, the facer must work under higher load and remain stable during operation.

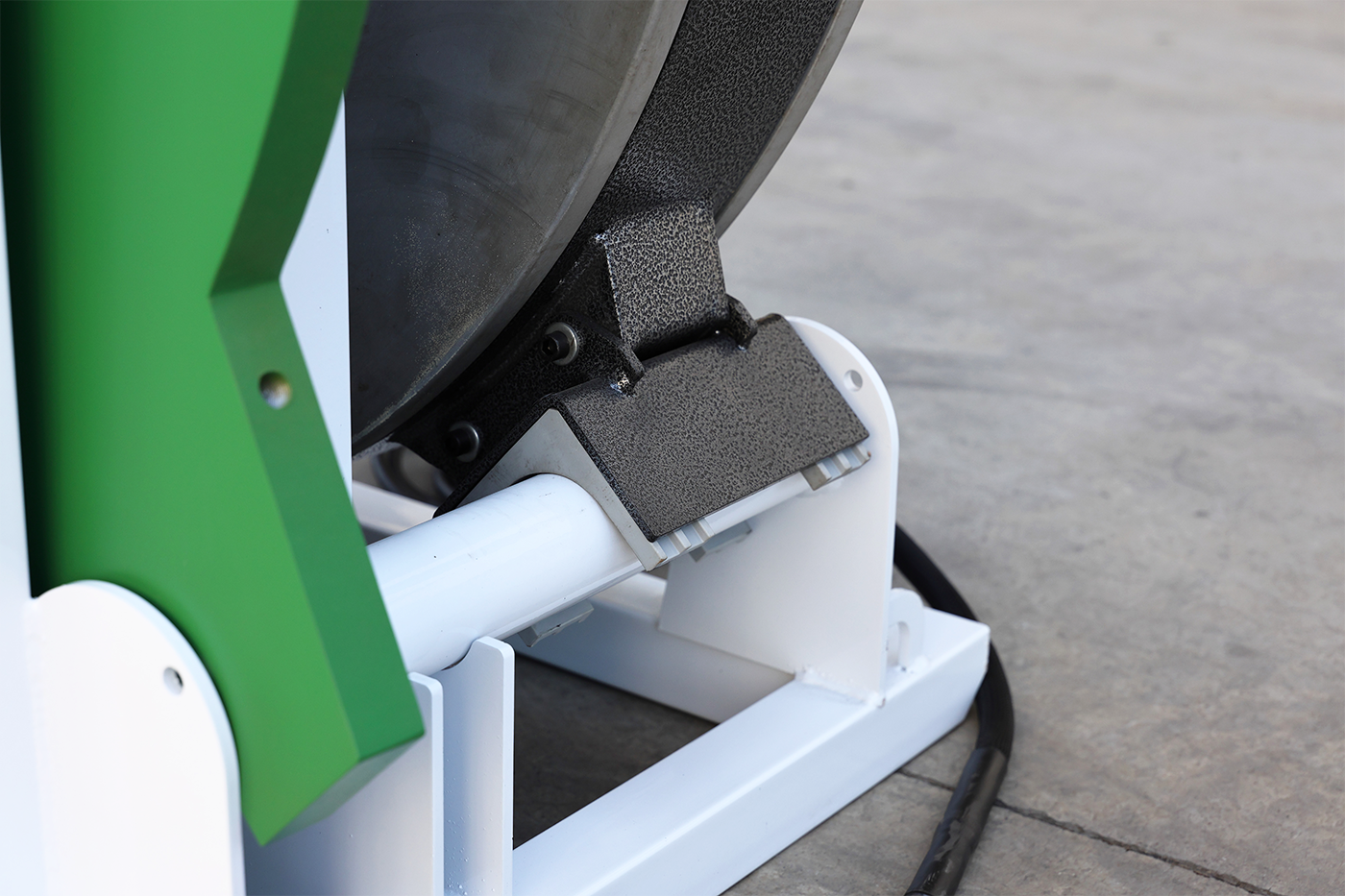

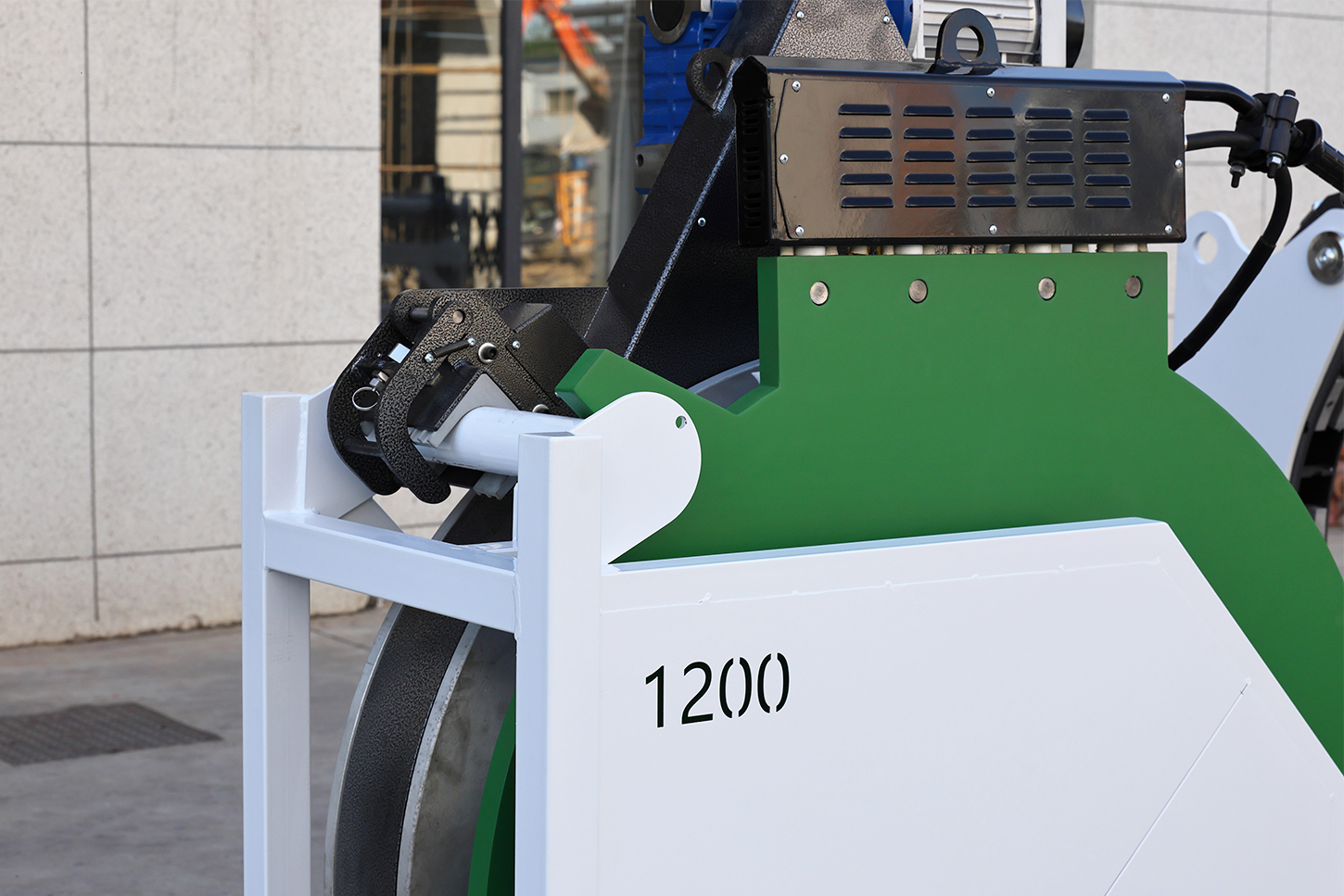

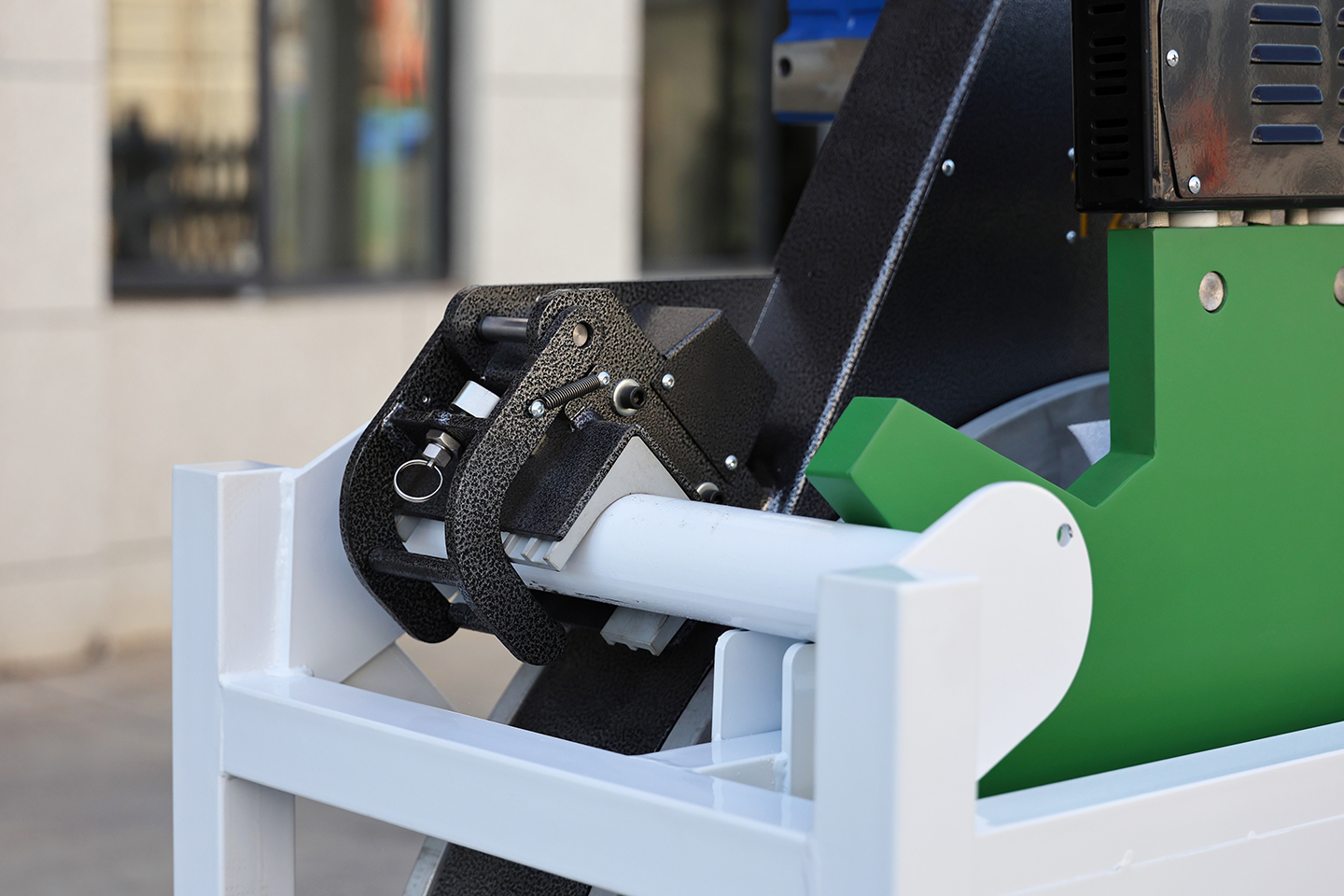

The FX1200 facer uses a reinforced chain-drive structure with a self-tensioning design. This helps reduce loosening during long-term use and supports more stable pipe end facing.
The facer is also equipped with a locking device, making installation and fixing more convenient. For operators, this means less repeated adjustment before welding and a smoother preparation process.
In practice, the facer is not just a tool for trimming pipe ends. It prepares the foundation for the whole welding process. Stable facing makes the following steps easier to control.
Remote Control for Easier On-Site Operation

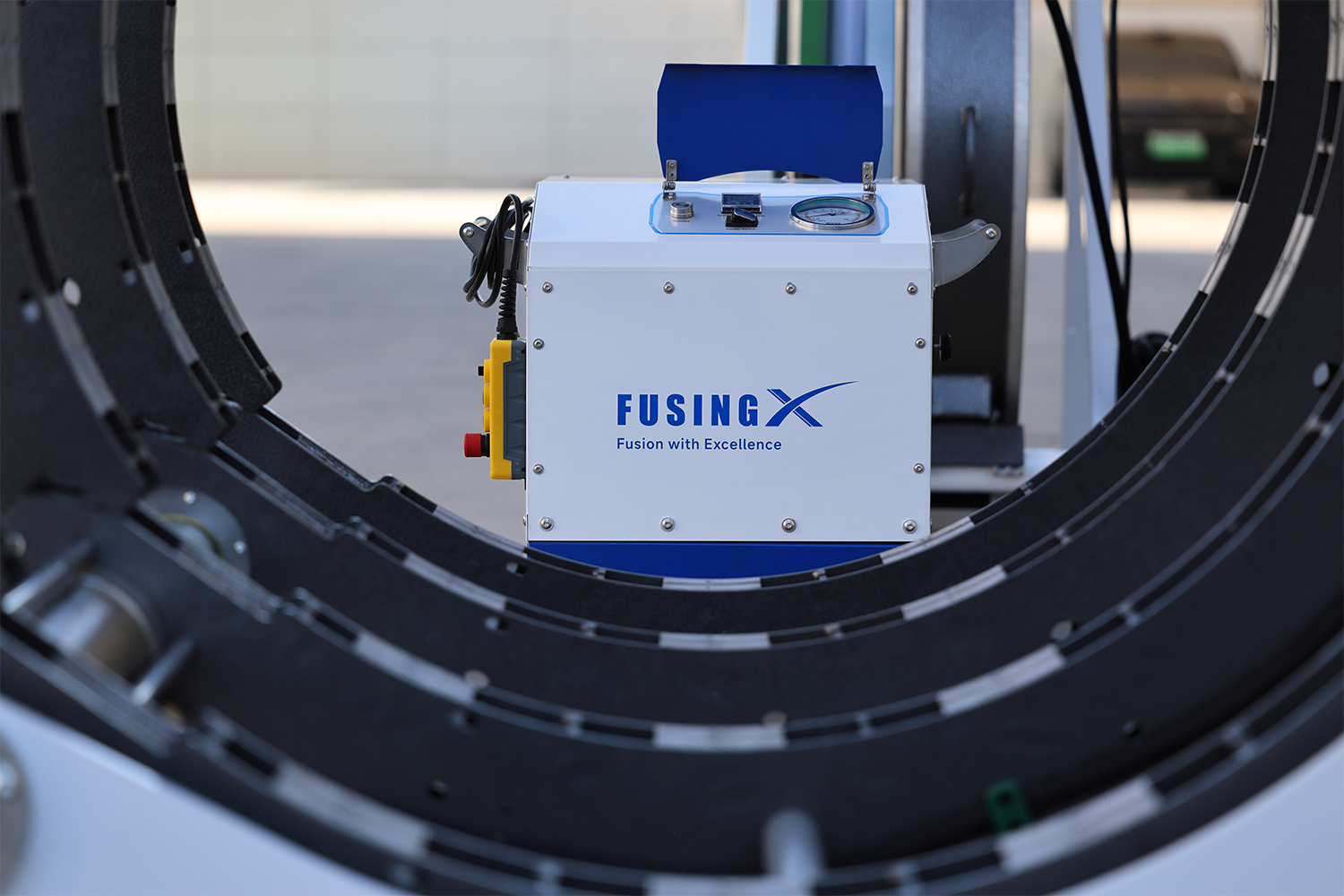

The remote control is a practical feature on the FX series, especially on large machines like the FX1200. On a large-diameter welding site, the operator often needs to observe the joint area closely instead of standing only beside the hydraulic unit.

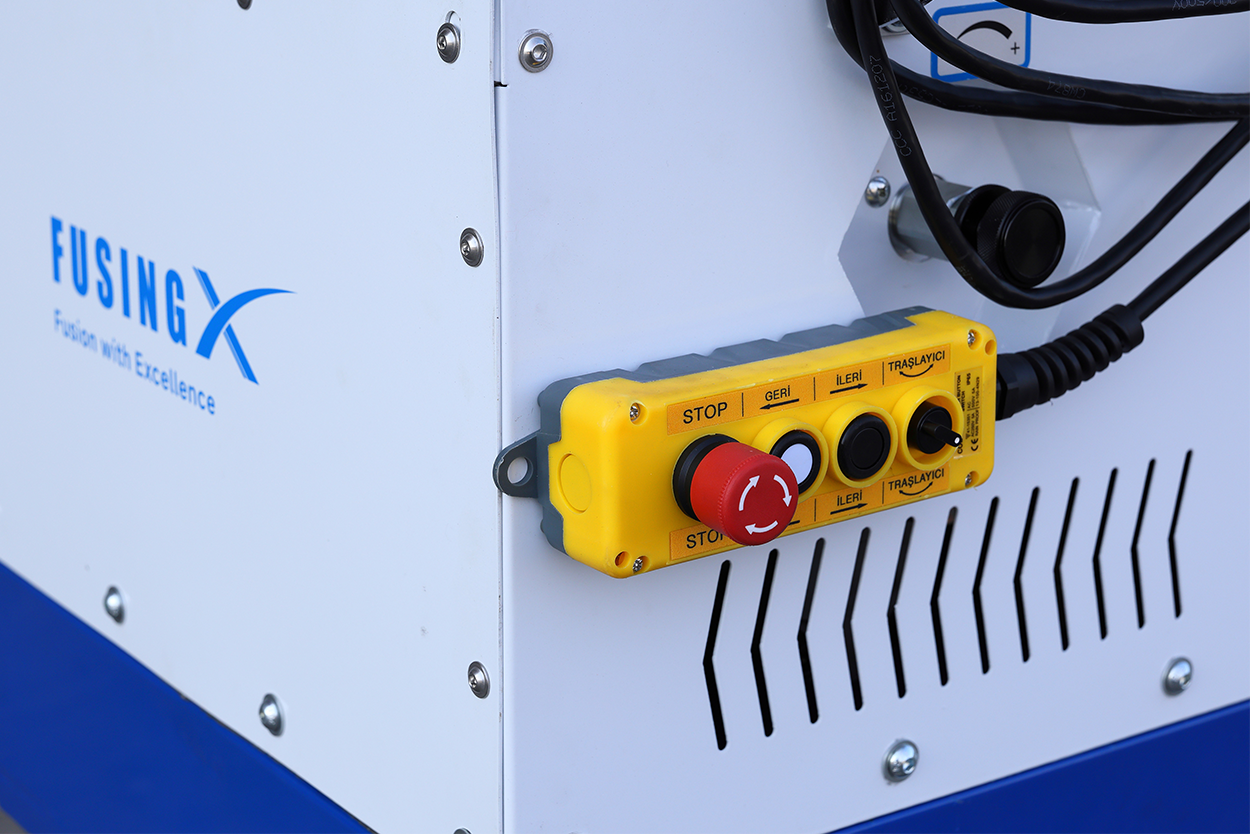

The FX1200 remote control supports forward movement, backward movement, facer switch, and emergency stop. With this design, the operator can choose a more suitable position to observe clamping, alignment, facing, and changeover.

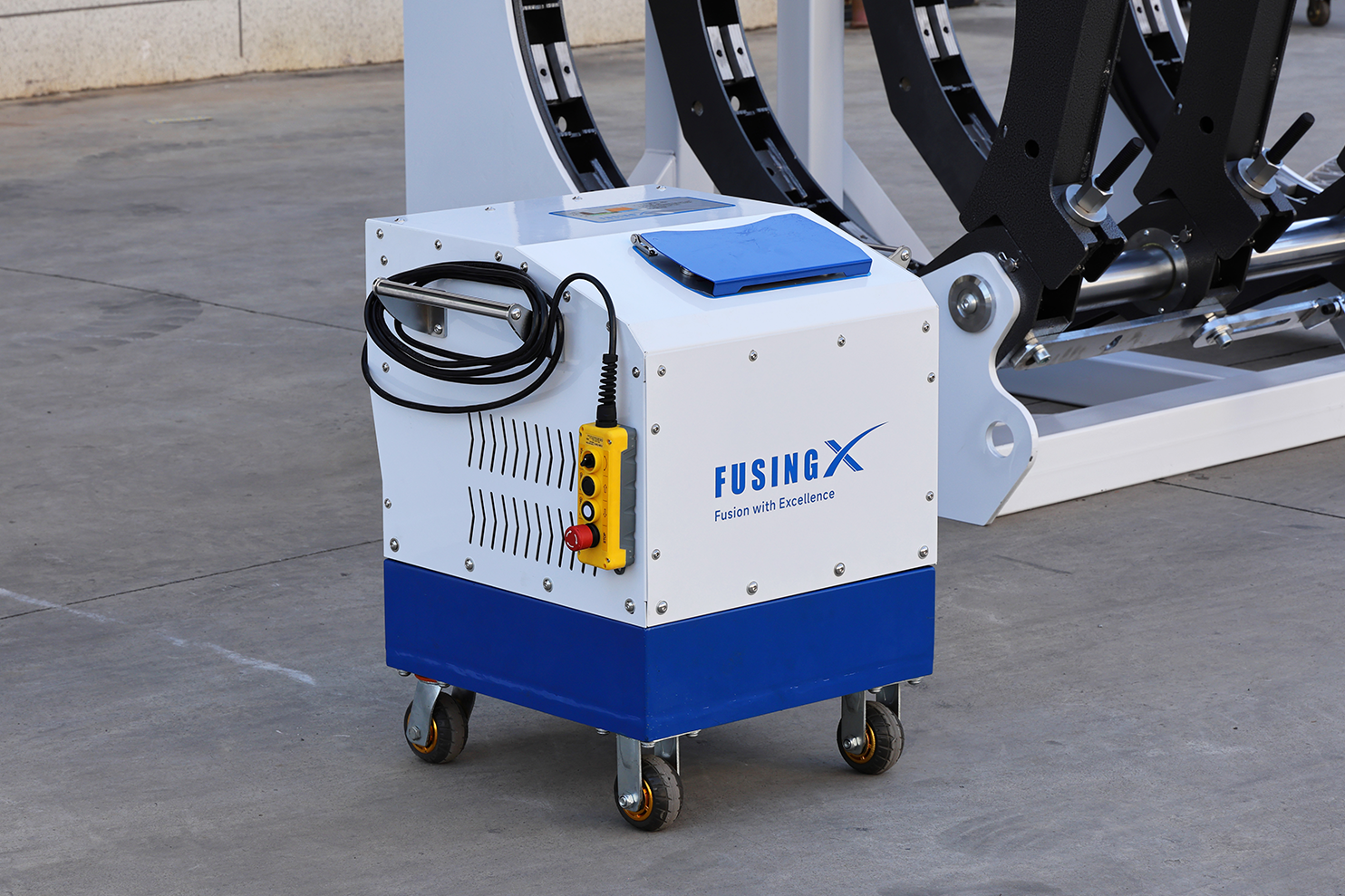

The back of the remote control has a magnetic design, so it can be attached to the hydraulic unit, machine frame, or other steel surfaces. It can be used like a fixed control panel or moved to a more convenient position when needed.
For large-diameter welding work, flexible operation is not just a small convenience. It can make the whole process easier to observe and control.
Practical Configuration for Long-Term Use
Some details of the FX1200 may not look dramatic at first glance, but they become more important during long-term use.
For example, the FX series is equipped with a green heating plate as standard. The heating plate uses a thick casting structure and a quality coating, and temperature inspection is carried out before delivery. For PE and HDPE pipe welding, stable heat transfer is an important part of process reliability.

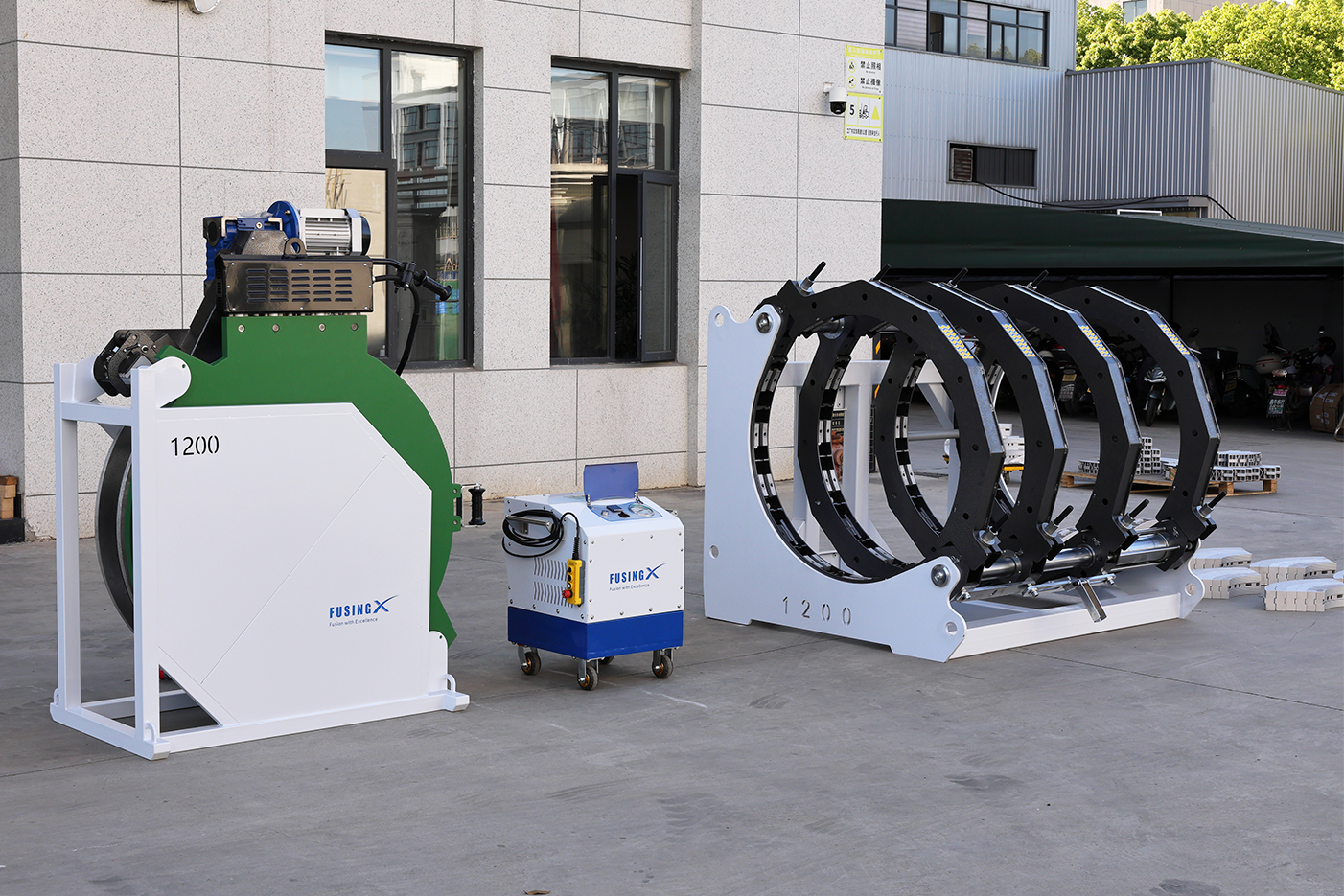

The frame, clamps, inserts, anti-slip pads, facer, heating plate, hydraulic unit, and remote control work together as a complete system. Each part may seem simple when viewed separately, but in real large-diameter welding work, these details affect operation, stability, and long-term performance.
A large-diameter butt fusion machine should not be judged only by its maximum welding size. It should also be evaluated by how well it holds the pipe, how stable the facing process is, how easily the operator can observe the joint, and how reliable the machine remains under regular use.
The FX1200 is designed around these practical requirements for large-diameter pipe welding.
For detailed specifications, configuration options, and more product photos, please visit the FX1200 butt fusion welding machine product page.
