FX1200 Factory Photos: A Real Look at a Large-Diameter Butt Fusion Machine
Recently, we took a new set of photos of the FX1200 butt fusion machine in our factory.

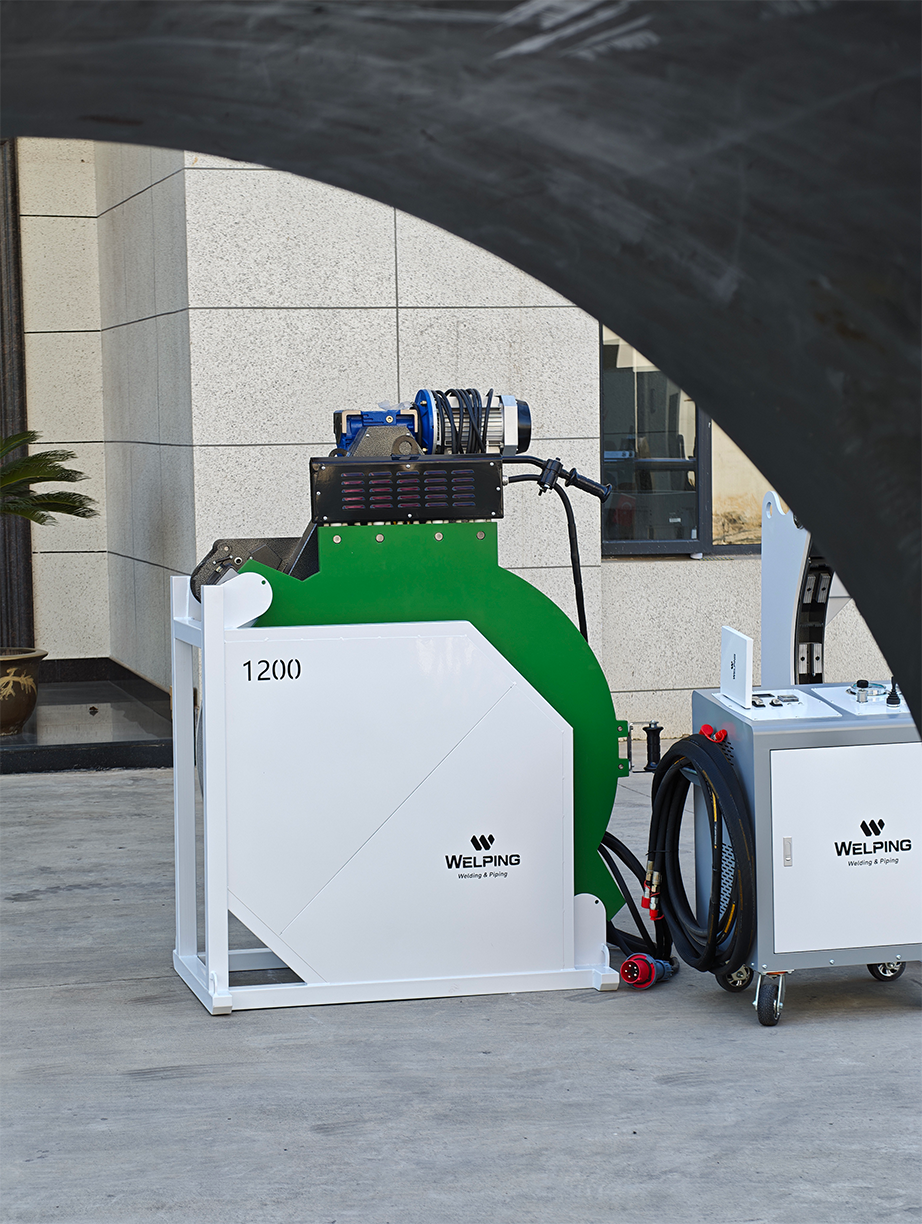

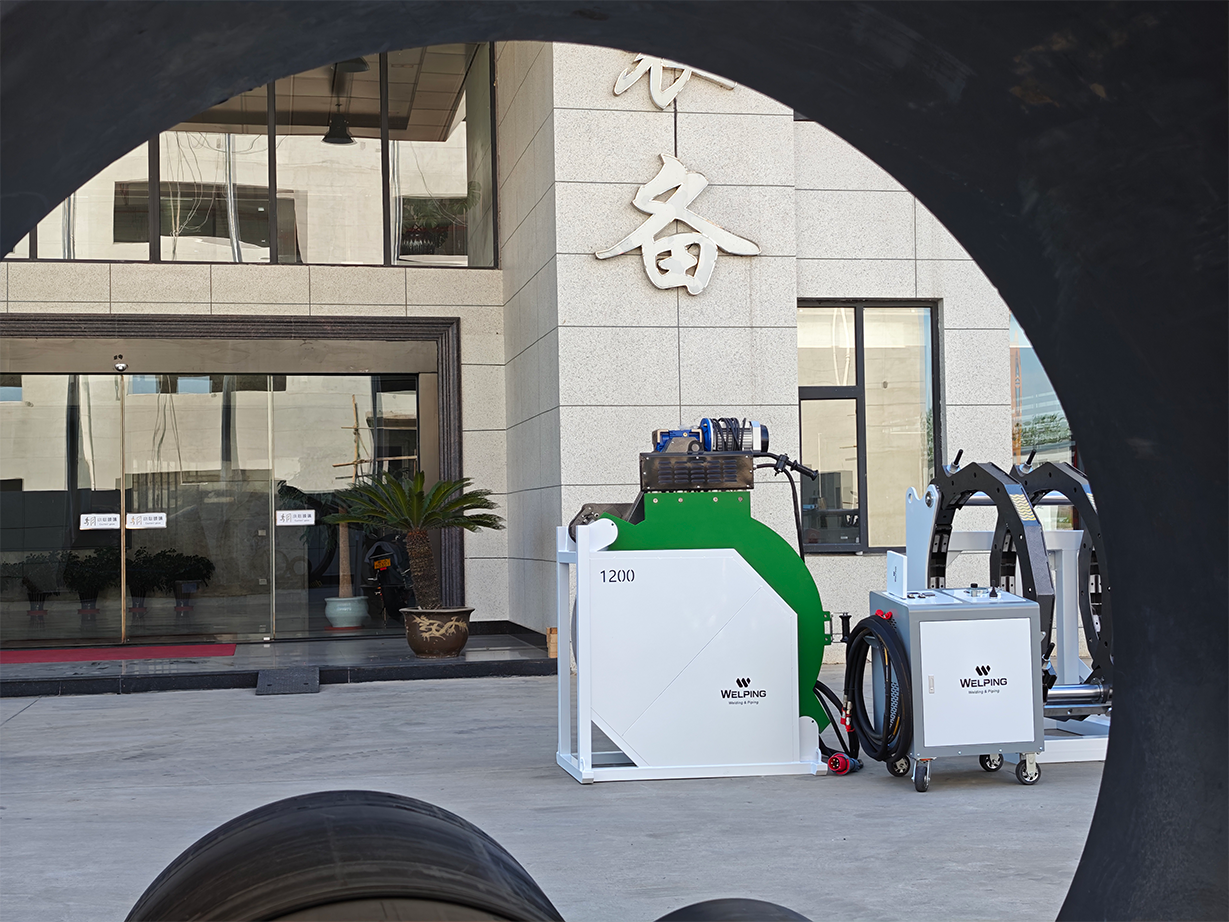

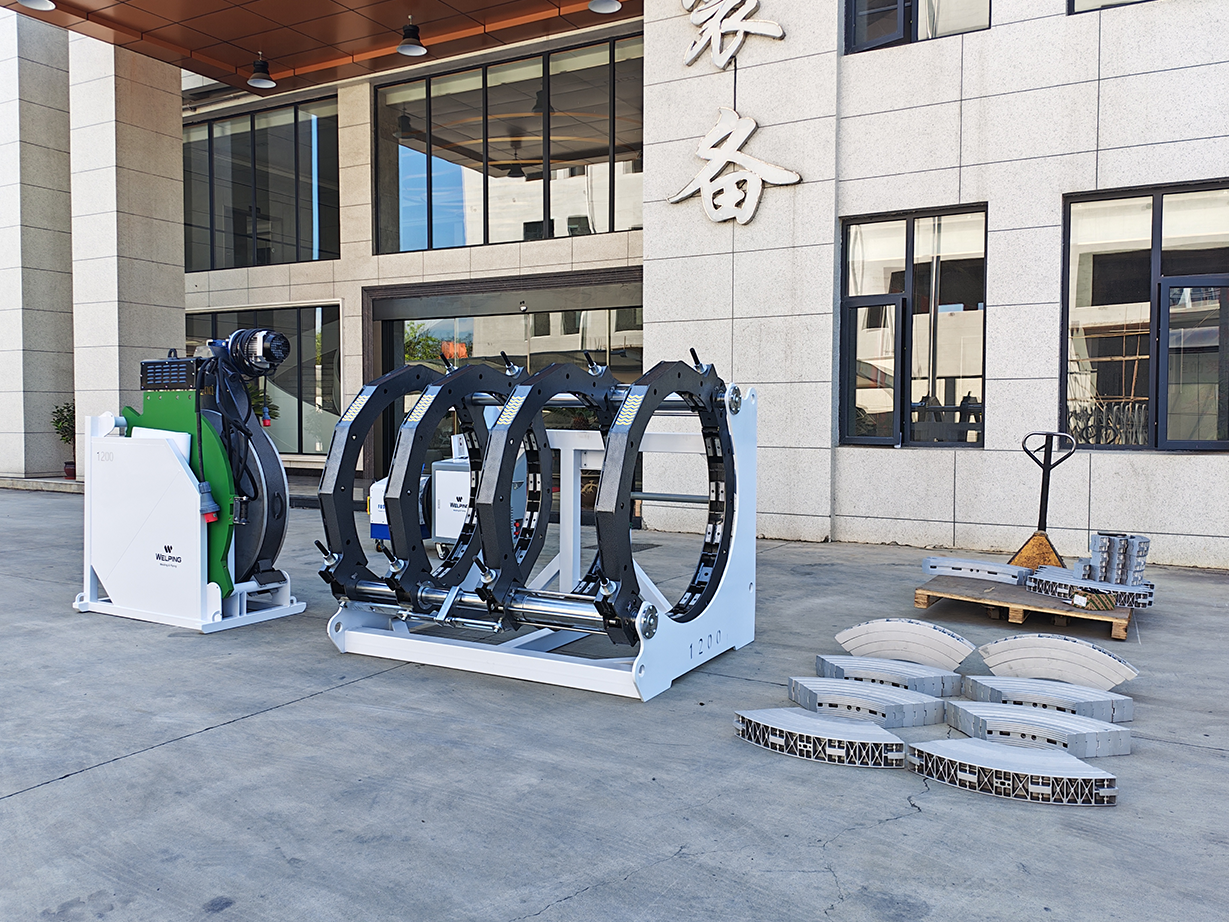

These are not the final retouched product photos, and the full product page is still being prepared. But even from these factory shots, the overall structure of the FX1200 is already clear: the large machine frame, clamping system, facer, heating plate, and hydraulic power unit can all be seen in their real working condition.
For large-diameter HDPE pipe welding, a machine is not judged by how complicated it looks. What matters more is whether the structure is solid, whether the pipe can be held steadily, and whether the operation remains reliable throughout the welding process.
The FX1200 is built for this kind of heavy-duty application. It is designed for large-diameter pipe welding, where the machine has to meet higher requirements for frame strength, pipe clamping, and hydraulic control. During key steps such as facing, heating, and welding pressure control, machine stability has a direct impact on the operator’s actual working experience.

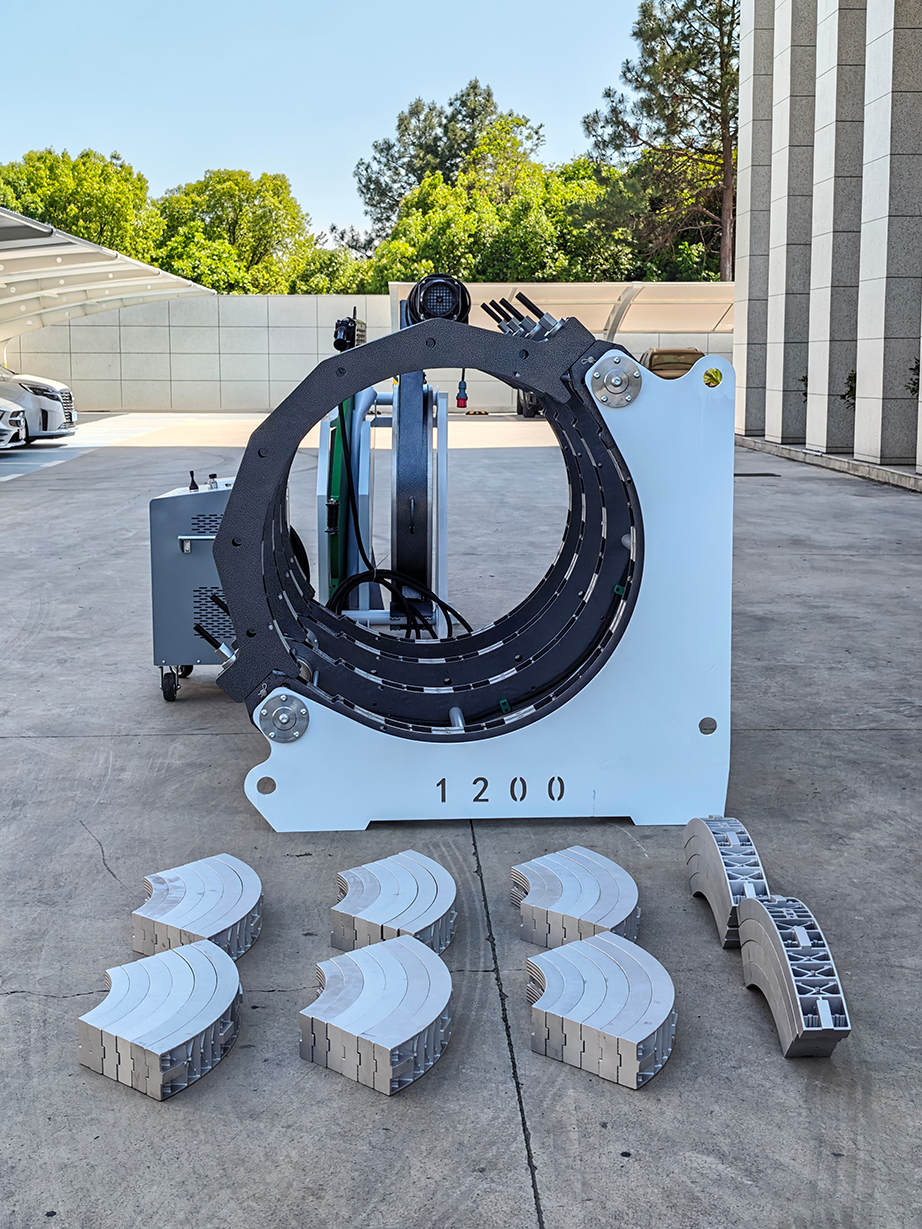

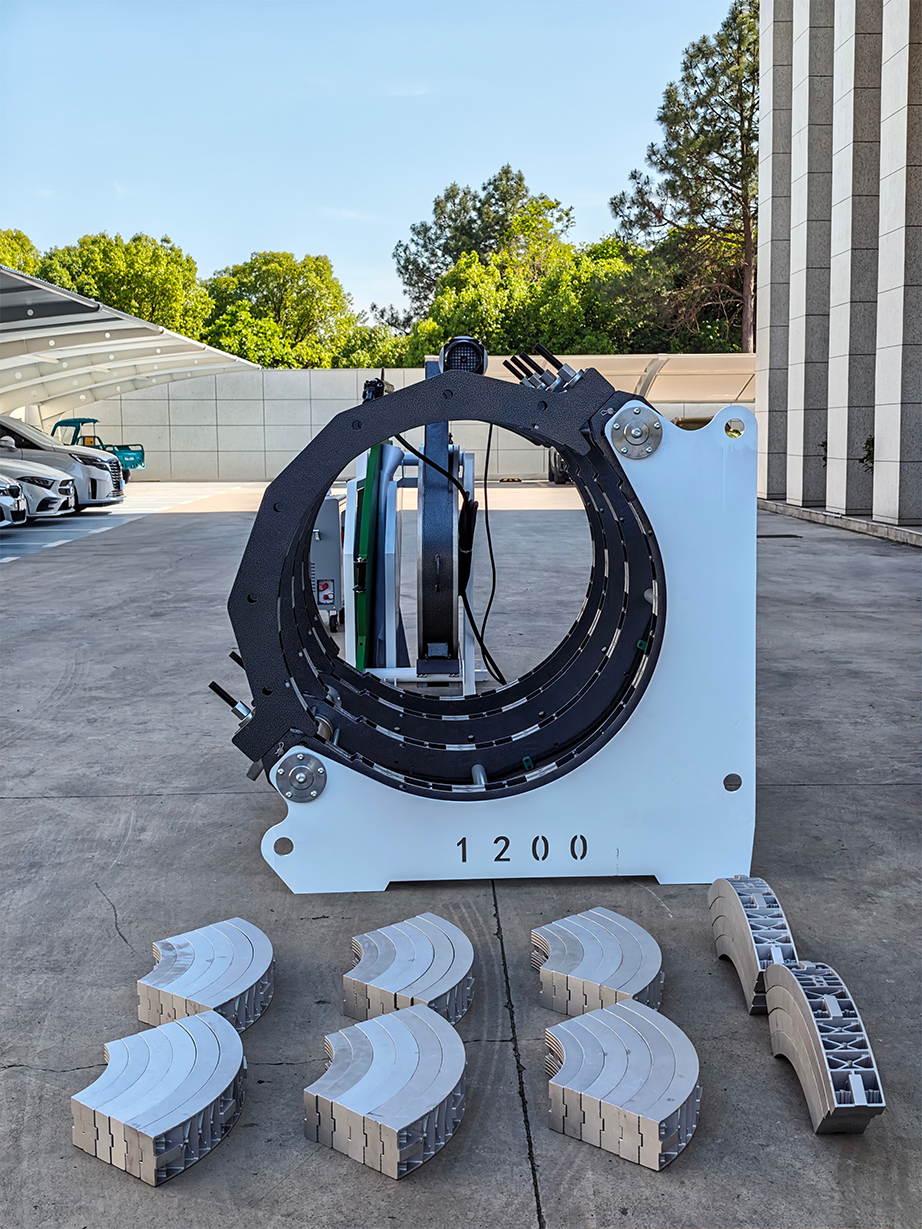

From these factory photos, it is clear that the FX1200 is not simply a larger version of a smaller machine. A machine of this size needs stronger structural support and more stable component matching. The large frame helps carry heavier pipes, the clamping system helps keep the pipe aligned, and the gear-driven facer supports a smoother facing process.
This is one of the main differences between large-diameter butt fusion machines and smaller models. As the pipe size increases, field operation becomes more demanding, and the basic structure of the machine becomes even more important.
At present, the FX Series butt fusion machines can be supplied up to 1800 mm. For extra-large models such as the FX1800, production is usually arranged according to customer order requirements rather than as a regular stock display model. Through these FX1200 factory photos, customers can first get a practical look at the structural foundation and production status behind the FX large-diameter machines.
More official photos, detailed specifications, and structural details of the FX1200 will be updated later. For large-diameter HDPE pipe welding projects, customers can also contact us to discuss suitable machine sizes and configurations based on actual project needs.
To learn more about other FX Series butt fusion machine models, please click here to visit the product page.
