Choosing a Small-Diameter Butt Fusion Machine: Why the FX160 Fits 63–160 mm Pipe Welding
In HDPE pipeline projects, small-diameter pipes are widely used.
Applications such as water supply systems, agricultural irrigation, landscaping networks, and small municipal installations often involve PE pipes in the 63–160 mm range.
Compared with large-diameter pipelines, work with smaller pipes is usually more flexible. Welding is frequently performed directly on site rather than in a workshop environment. Because of this, welding equipment needs to be reliable while also being compact and easy to handle during installation.
For this reason, small-diameter butt fusion machines are often designed with a focus on practical structure and ease of operation.
What Matters in a Small-Diameter Fusion Machine
Within the 63–160 mm pipe range, the pipes themselves are relatively light, but the welding work is often repetitive and performed across multiple locations.
If the machine is overly complex, it can actually slow down field work rather than improve it. In practice, small-diameter fusion machines are expected to offer several key characteristics:
· Compact structure that is easy to move
· Straightforward operation for field work
· Stable performance for consistent welding results
· Clear and simple component layout for easier maintenance
While these requirements may sound simple, they play an important role in real jobsite conditions.
FX160: Designed for 63–160 mm Pipe Welding
The FX160 butt fusion machine is developed specifically for this pipe size range.
It is designed for HDPE pipe welding from 63 mm to 160 mm, making it the compact model within the FX series.

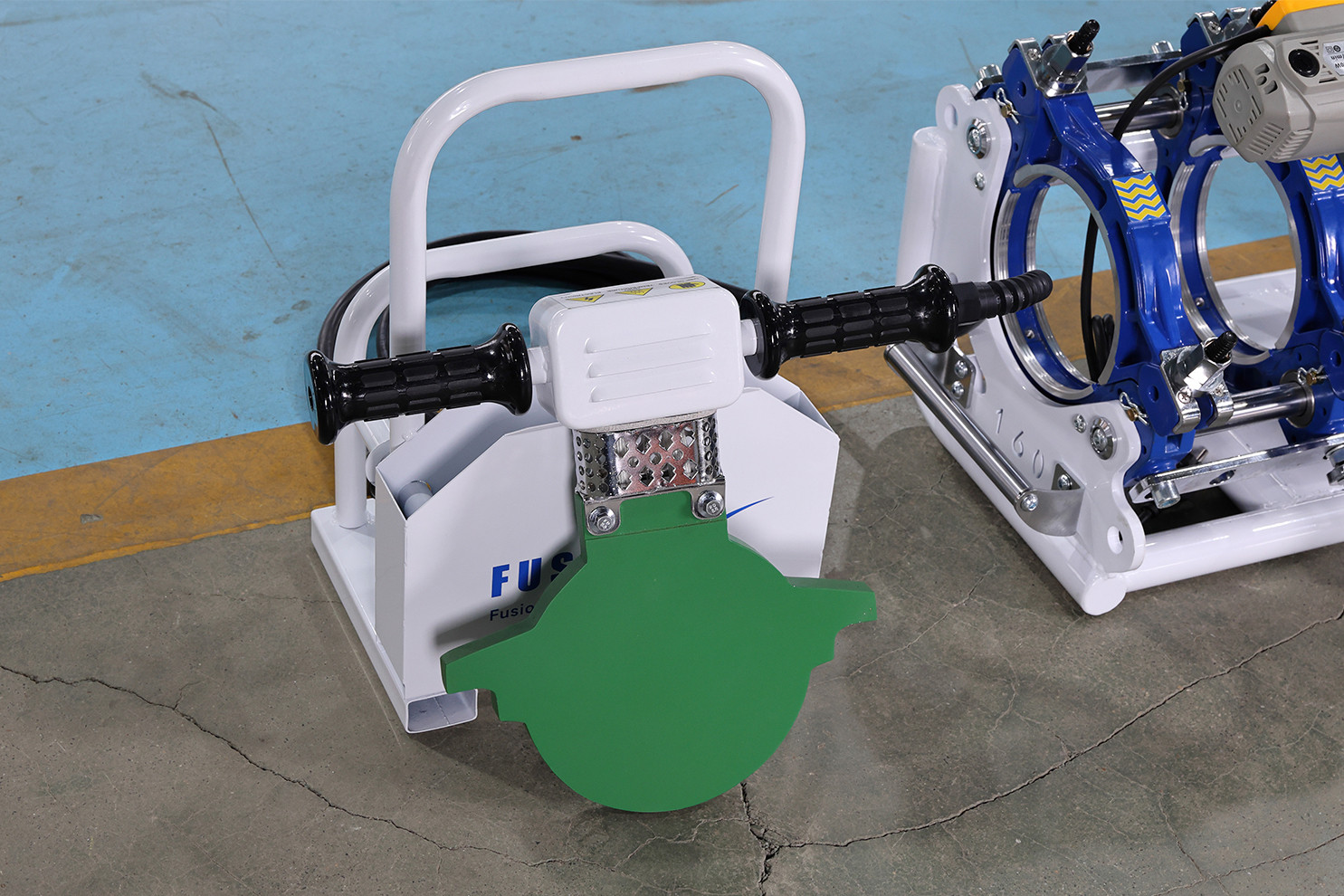

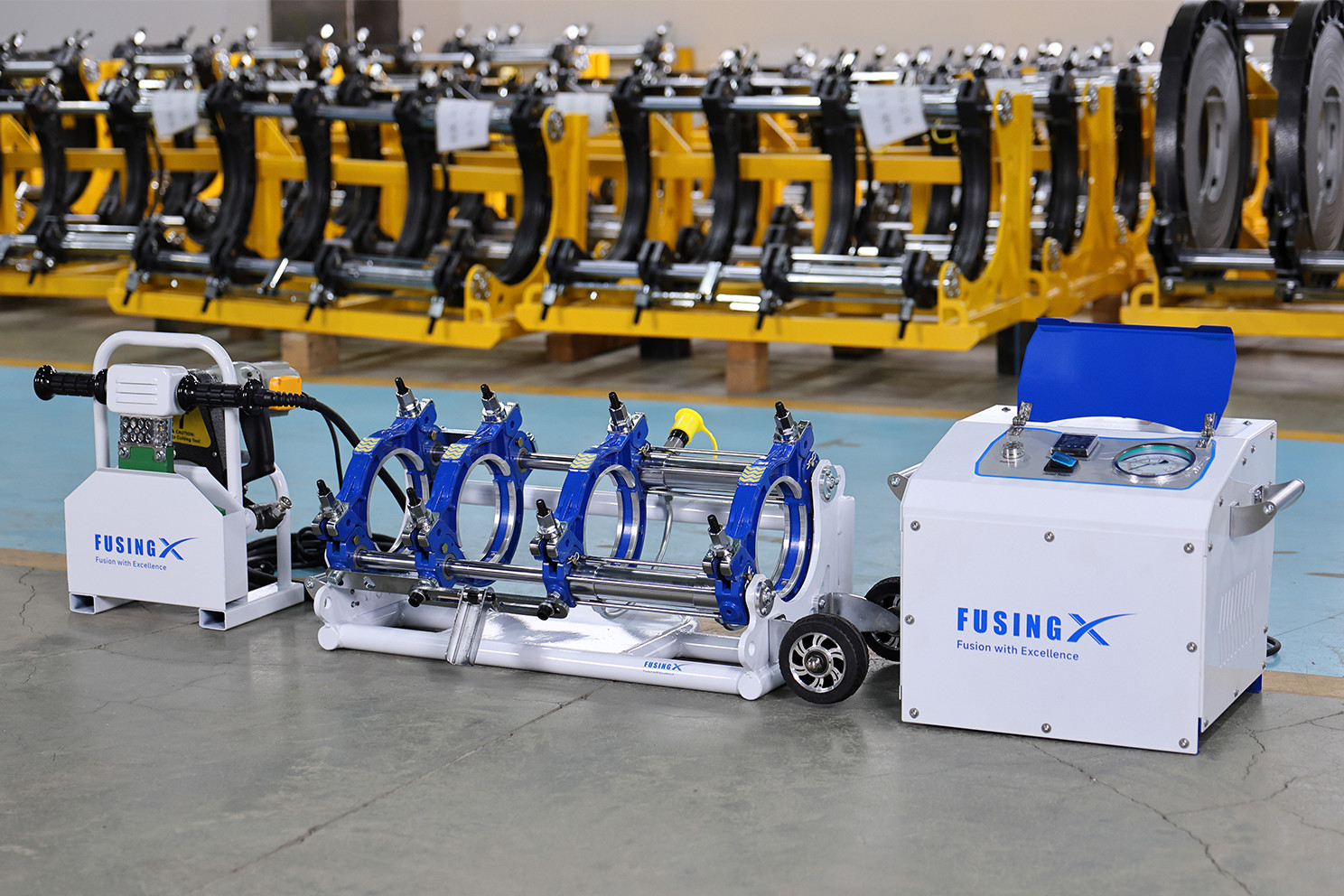

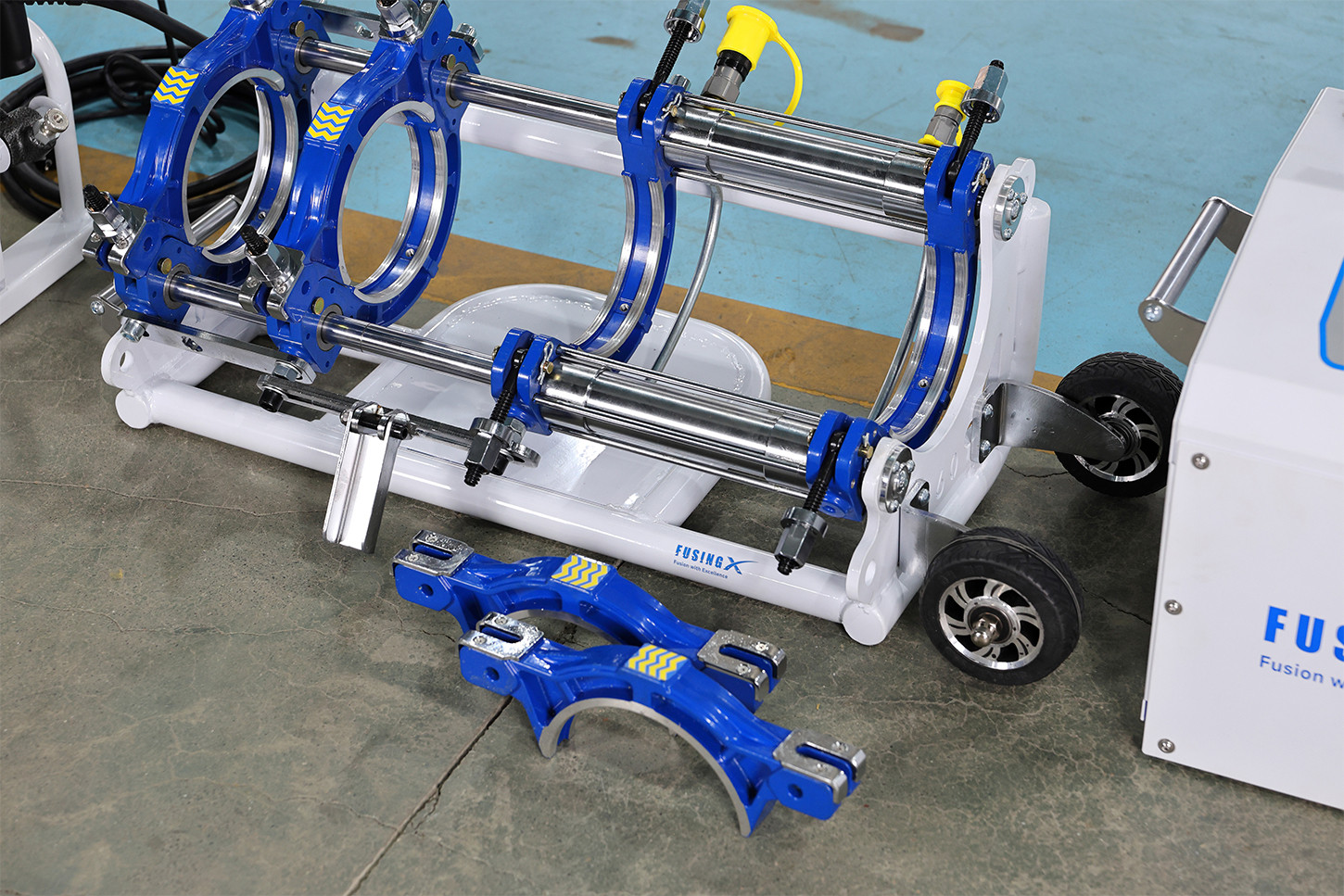

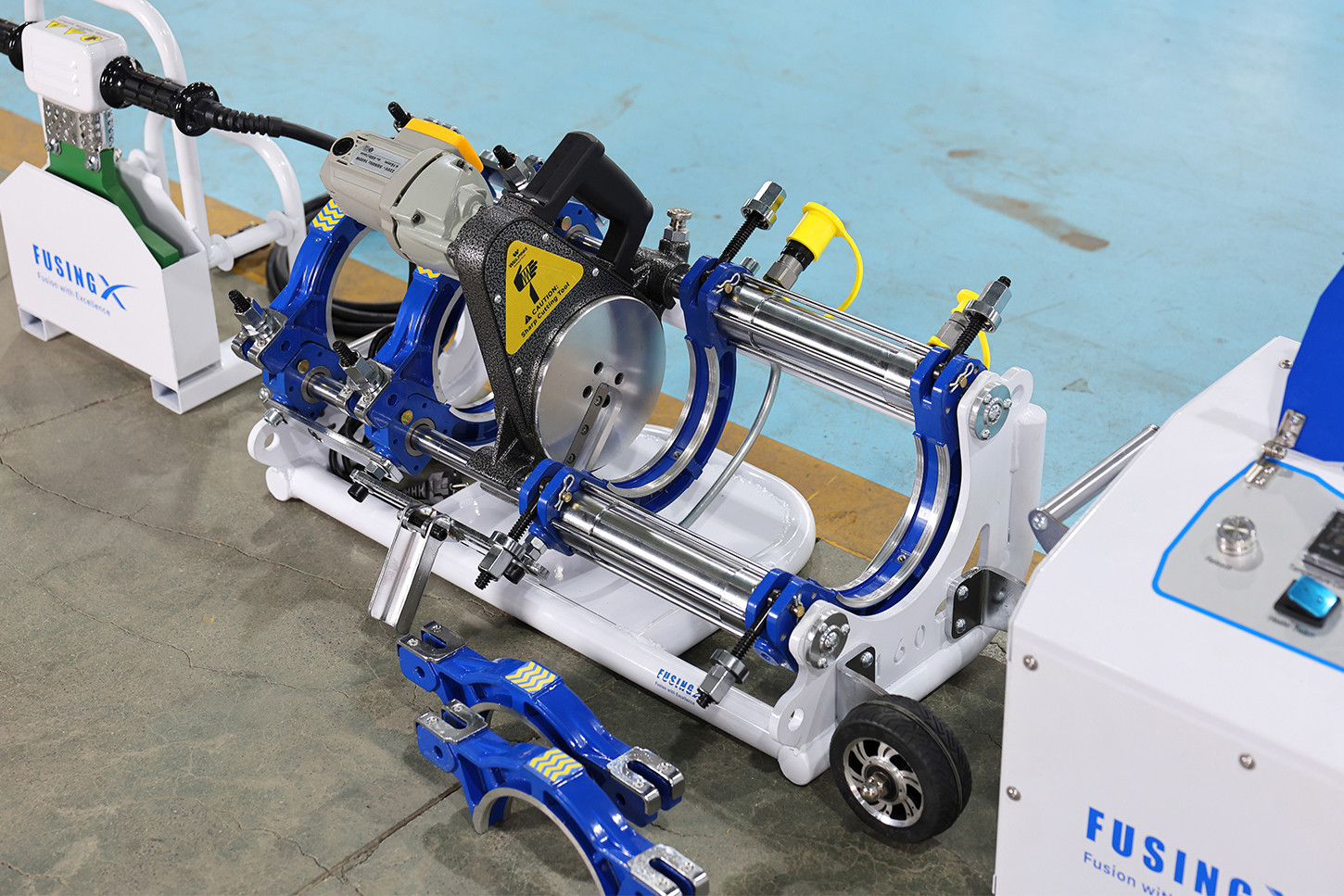

Structurally, the FX160 follows the standard configuration of a butt fusion machine, including the machine frame, hydraulic unit, electric facer, and heating plate. The layout of these components is clear and compact, allowing the equipment to remain stable during welding while still being practical for daily site use.
This structure helps balance welding stability with mobility, which is particularly important for small-diameter pipeline installations.
Stability from the FX Series Design
Although the FX160 is the smaller model in the FX range, it still reflects the design approach used across the series.
The machine operates with a hydraulic system and includes the essential components required for standard butt fusion procedures, such as pipe facing, heating, and fusion. These elements allow the welding process to follow established procedures used in HDPE pipeline construction.
For typical 63–160 mm pipe welding applications, this configuration provides a practical and reliable setup for daily work.
A Practical Solution for Small-Diameter HDPE Pipe Welding
Different pipe sizes often require different equipment design priorities.
For smaller pipes, the key factors are usually practicality, stability, and ease of operation rather than complex machine features.
The FX160 is built around these principles, offering a compact and dependable solution for small-diameter HDPE butt fusion welding.
