Why Move the Controls from the Hydraulic Unit to the Machine? FusingX’s Magnetic Wired Remote Control Design
The Practical Value of FusingX’s Second-Generation Magnetic Wired Remote Control
In butt fusion welding, stable machine performance is only part of the story. For operators on site, ease of control, visibility during the welding process, and overall working convenience are just as important to the actual experience.
On many butt fusion machines available on the market, the main operating functions are built into the hydraulic unit. That means the operator usually has to stand in front of the hydraulic station to control forward and backward movement or operate the facer. This setup works, of course, but in real use it creates a very obvious limitation: the operator is too far away from the machine to closely observe the pipe ends during key steps.
The second-generation wired remote control from FusingX was developed to solve exactly this problem.
1. A Limitation We Found in Real Operation
Earlier FusingX machines were also operated mainly from the hydraulic unit. The machines performed well, but through repeated testing and real working experience, we gradually realized that standing at the hydraulic station was not always the most practical way to work.
The reason is simple: in butt fusion welding, many important steps require the operator not only to control the machine, but also to watch the process closely while operating.
During facing, for example, the operator needs to check:
· whether the pipe ends have been fully faced
· whether the end surfaces are properly aligned and clean
· whether continuous and even shavings are being produced
· whether the pipe ends are ready for proper jointing
During heating, the operator also needs to observe:
· whether the heater plate contacts both pipe ends evenly
· whether the initial bead forms correctly
· whether the heating condition remains stable
· whether there is any abnormal change at the pipe ends
These are things that are much easier to judge when standing close to the machine. If the operator is fixed in front of the hydraulic unit, it becomes difficult to control the machine and inspect the welding condition at the same time.
2. Second-Generation Upgrade: Bringing Control Closer to the Machine
That is why FusingX developed this wired remote control as a second-generation upgrade.
It brings the most frequently used controls together in one separate handheld unit, allowing the operator to move freely and work right beside the welding machine instead of staying at the hydraulic station.
In practice, this means that during facing or heating, the operator can stand, squat, or even sit near the machine to observe the pipe ends closely while controlling the machine at the same time.
Compared with traditional operation from the hydraulic unit alone, this approach is much more flexible and far better suited to real jobsite conditions.
3. Magnetic Design for Convenient Placement
Another very practical detail of this remote control is its magnetic mounting design.
The unit can be attached directly to any suitable ferrous metal surface, such as:
· the casing of the hydraulic unit
· the frame of the butt fusion machine
· other steel parts nearby
This means the remote does not require an extra bracket, and it does not need to be left on the ground or placed somewhere temporarily when not in use. After operation, the user can simply attach it to a convenient metal surface and pick it up again whenever needed.
This is already clearly shown in your photos:

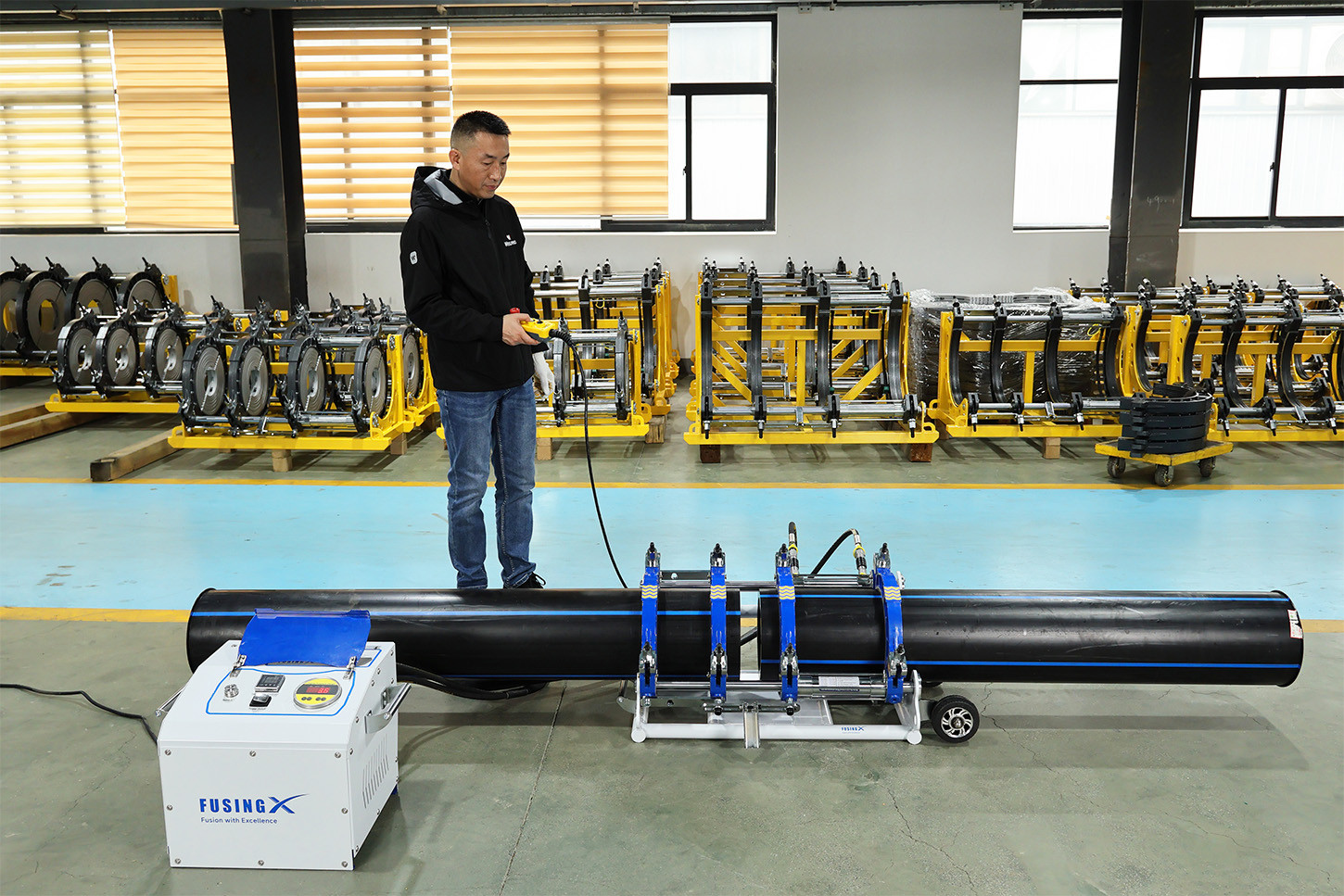

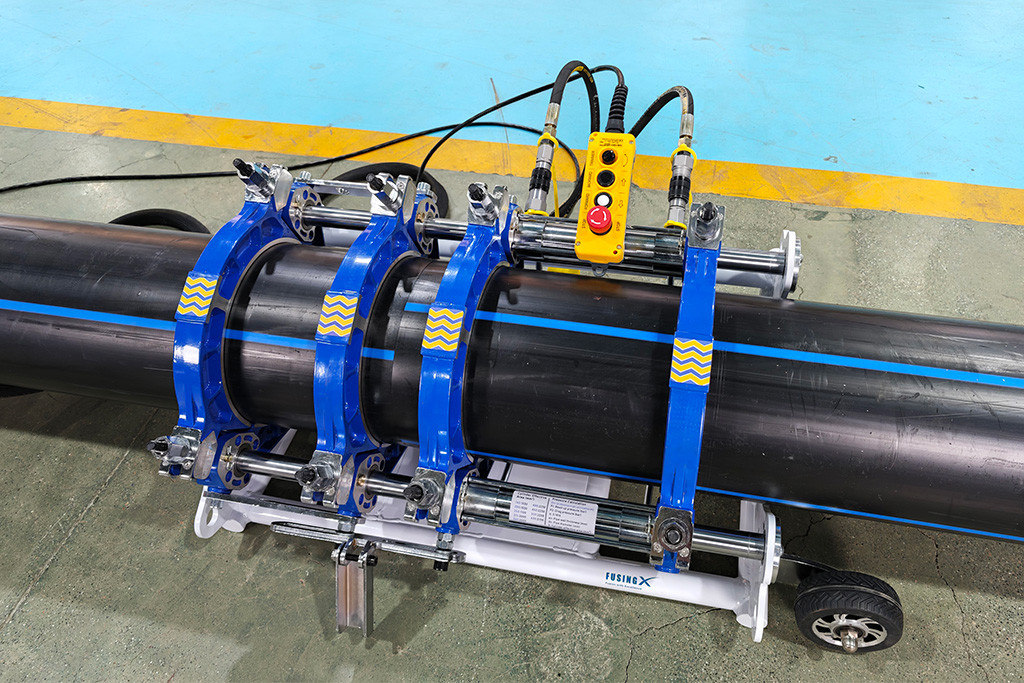

· In the first and second images, the remote is placed directly on the welding machine frame

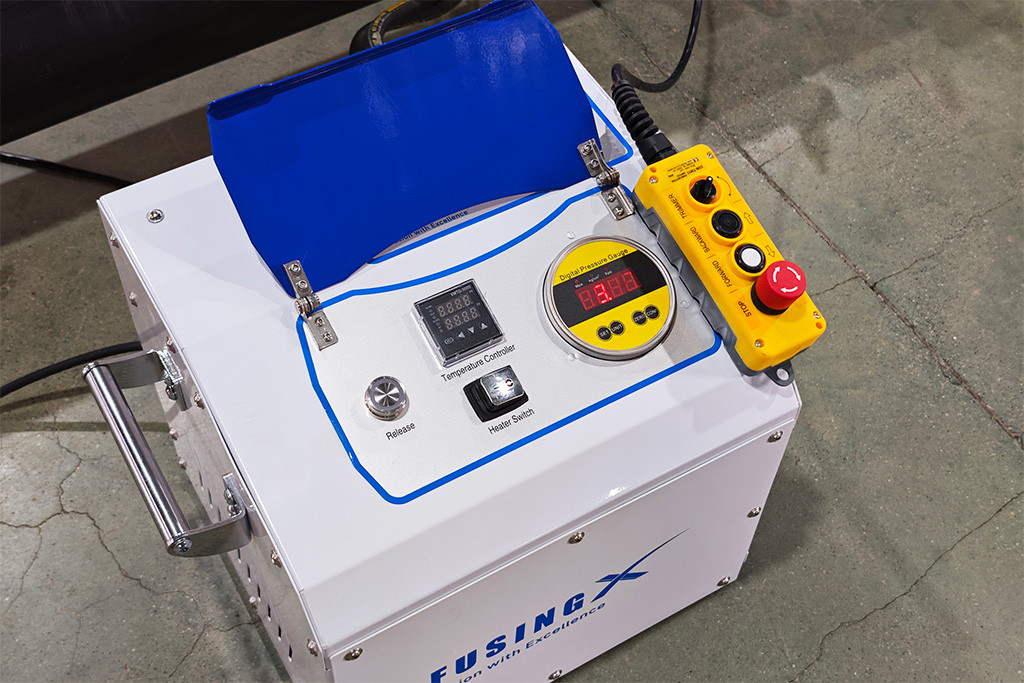

· In the third and fourth images, it is attached to the hydraulic unit
The design itself is simple, but in real work it makes a big difference.
Especially on site, where space is often limited and working conditions are not always ideal, a remote control that is easy to place, secure, and always within reach can significantly improve daily operation.
4. Wired, but Still Flexible
When people hear the word “remote,” they often think of something wireless. But this FusingX control unit is intentionally designed as a wired remote.
From a practical point of view, wired control has some clear advantages:
· stable connection
· direct response
· no battery concerns
· no signal interference
· reliable performance during long working hours
At the same time, being wired does not mean it limits operator movement. The cable length has been designed with normal welding requirements in mind, and it is fully sufficient for the operator to move from the hydraulic unit to the machine and work comfortably within the normal operating range.
So in real use, it offers the best of both sides:
· the stability and reliability of wired control
· the flexibility of mobile operation around the machine
For butt fusion welding in real field conditions, this is a practical and dependable solution.
5. The Real Improvement: Better Observation and More Efficient Operation
The value of this remote control is not simply that the buttons have been moved away from the hydraulic unit.
What really changes is where and how the operator can work.
In the past, the machine could still be operated successfully from the hydraulic station, but there was always a physical distance between the operator and the welding point. Now, the operator can move directly to the machine, control the operation, and observe the pipe ends at the same time.
The benefits are immediate:
· easier to confirm whether facing is complete
· easier to judge whether heating is sufficient
· easier to monitor bead formation
· easier to notice abnormal conditions in time
· less walking back and forth between the hydraulic unit and the machine
This advantage becomes even more obvious on larger machines, where the distance between the hydraulic unit and the frame is naturally greater.
From the perspective of actual jobsite use, this is not just an extra feature. It is a functional improvement that comes directly from real operating needs.
6. From “Operable” to “Easier to Operate”
Many machines can complete a weld. But what often makes the difference in real use is not only the major components — it is the smaller design details that improve the operator’s experience.
That is exactly where the value of the FusingX second-generation magnetic wired remote control lies. It is not simply an added component.
It is the result of rethinking what operators actually need on site:
· not just a machine that moves
· but a machine that is easier to observe
· easier to control
· and more comfortable to operate during critical welding steps
The magnetic structure solves the problem of where to place the remote.
The wired design ensures reliable and stable control.
And the ability to operate directly beside the machine allows the operator to work in a much more practical and efficient way.
For a butt fusion welding machine, this may seem like a small upgrade, but in real operation it is exactly the kind of detail that shows whether a machine is truly designed with the user in mind.
Conclusion
The FusingX second-generation wired remote control is a practical upgrade shaped by real welding experience.
It allows the operator to move beyond the fixed position at the hydraulic unit and work more freely beside the machine, where both control and observation are easier.
Combined with its magnetic mounting design and adequate cable length, this remote control offers a well-balanced solution in terms of reliability, convenience, and jobsite usability.
For butt fusion welding work that requires close observation during facing and heating, this design is not only more convenient — it is also more in line with real working conditions and can significantly improve the overall operating experience.
