Single-Size Clamp Inserts for Faster and More Stable PE Pipe Clamping
In PE pipe butt fusion welding, people often focus on the heating plate, hydraulic unit, and welding pressure. These are important, but pipe clamping is also a key part of the whole welding process.
If the pipe is not clamped firmly or aligned properly, it may affect facing, heating, and final joint quality. That is why the clamp insert design matters, especially for jobs where different pipe sizes are used frequently.

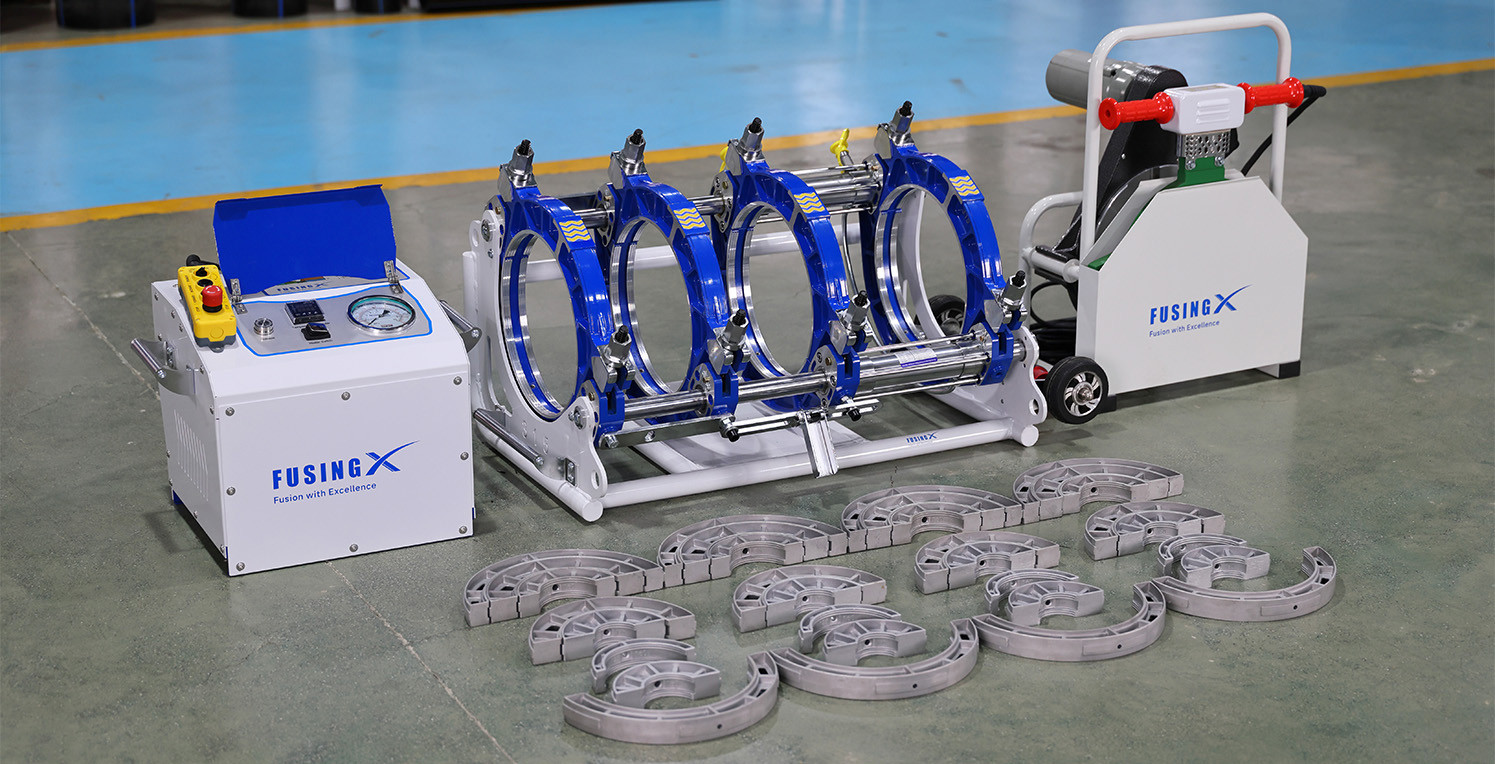

The FX Series butt fusion machines are equipped with single-size clamp inserts, making pipe clamping easier, faster, and more stable for daily jobsite use.
No More Repeated Insert Stacking
Traditional clamp inserts usually require several layers to match different pipe sizes. Every time the pipe size changes, operators need to select, stack, and install the right combination of inserts.
This may not seem complicated at first, but on a busy jobsite, repeated insert stacking can take extra time and make the operation less convenient.
Single-size clamp inserts make the process more direct. Each insert is designed for a specific pipe diameter, so the operator can install it more easily without building up multiple layers. This helps simplify the preparation work and keeps the working area more organized.
Faster Clamping and Easier Size Changes
In real pipe welding projects, a butt fusion machine may need to work with different pipe sizes in the same job. The easier the clamp inserts are to handle, the faster the machine can be prepared for the next weld.
With a clear single-size design, FX Series clamp inserts are easy to identify and install. Operators can complete pipe clamping more quickly, reducing waiting time and repeated adjustments.
For projects that require continuous welding, this small detail can make daily operation smoother and more efficient.
Stable Clamping for Better Alignment
Clamp inserts do more than hold the pipe in place. They also help keep the pipe properly centered before welding.
If the clamping is not stable, the pipe may shift slightly during facing or pipe movement. This can lead to extra alignment work before the welding process continues.

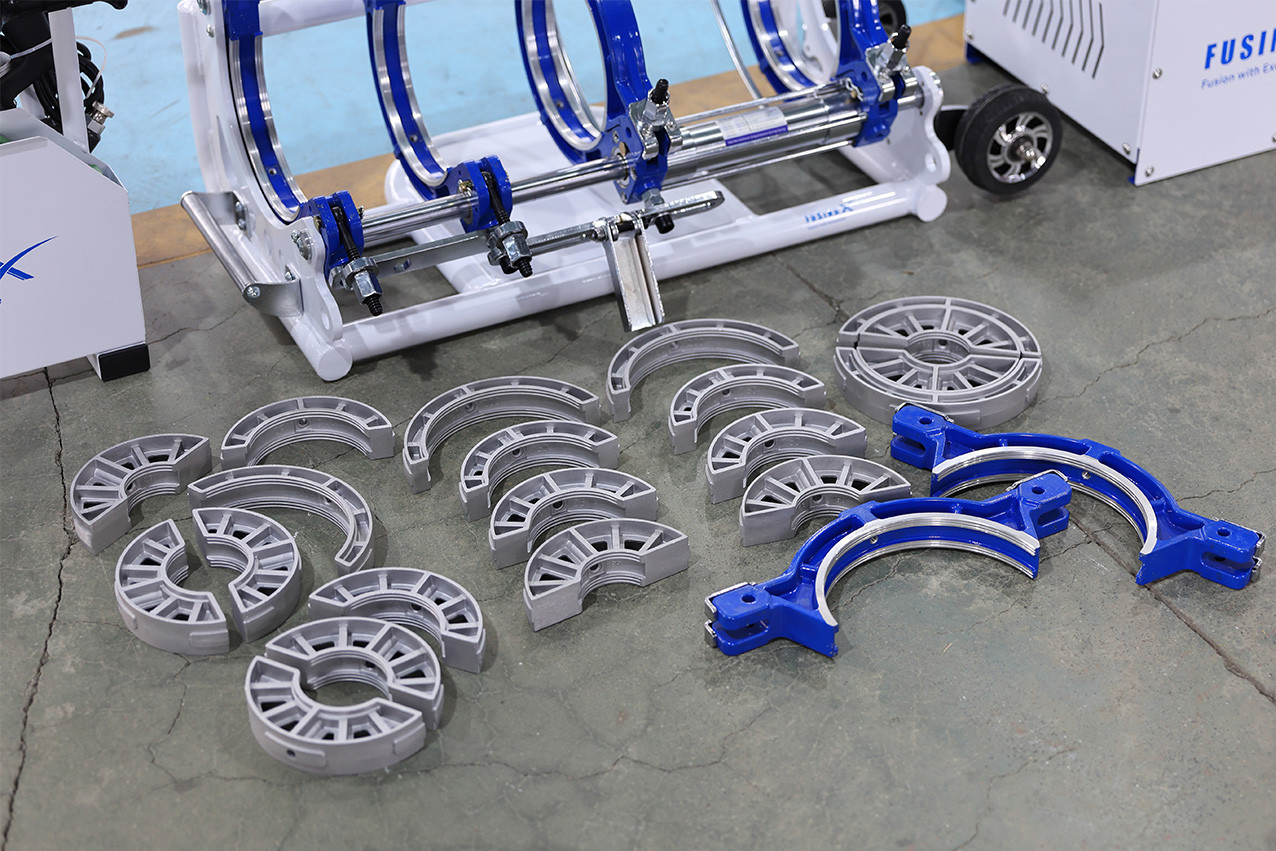

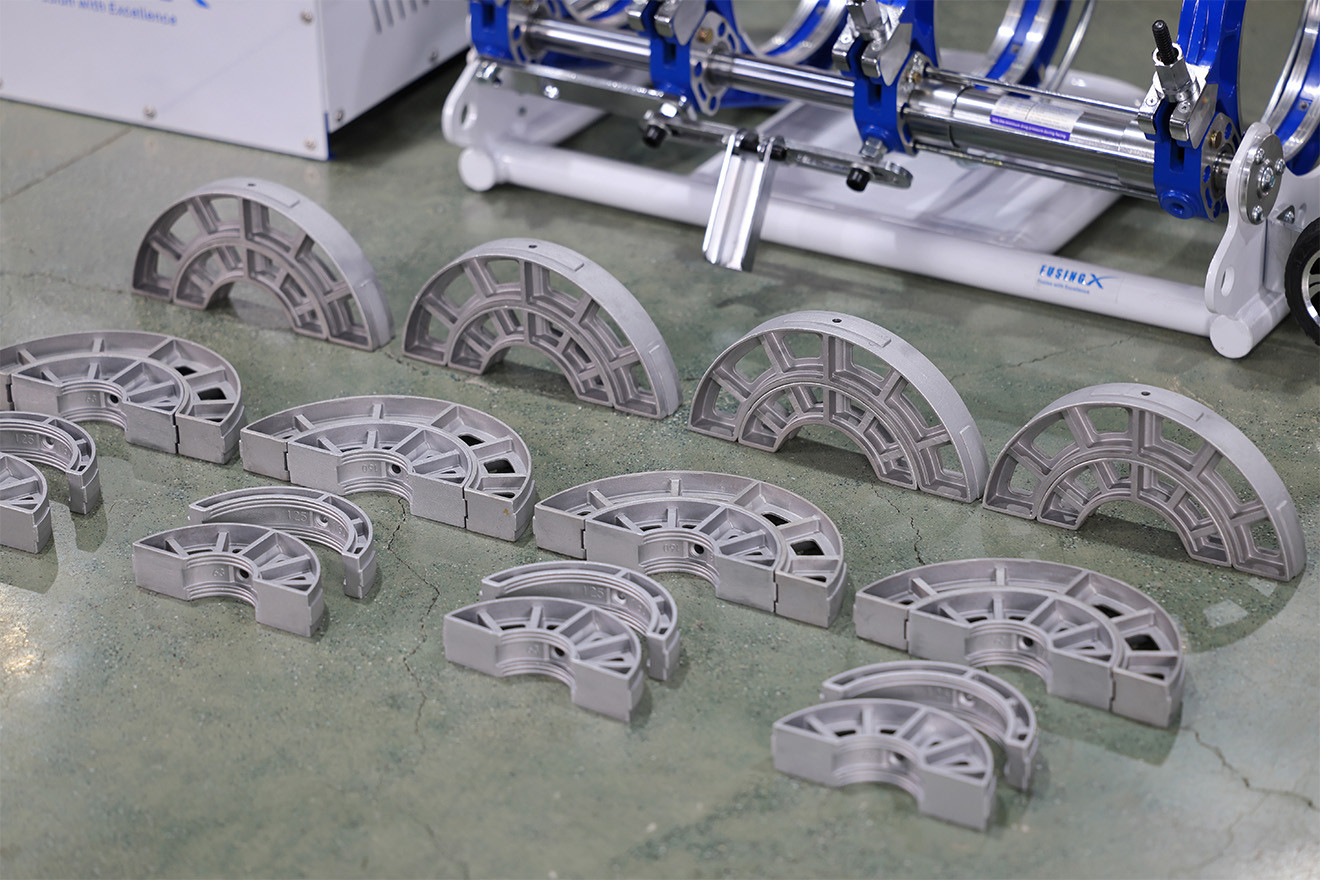

FX Series single-size clamp inserts are made with a strong aluminum die-cast structure, offering good strength and dimensional stability. Once the pipe is placed and clamped, the inserts help provide firm support and better alignment for the next steps of welding.
Practical Details for Professional Welding
The FX Series is designed for professional butt fusion welding applications. In addition to single-size clamp inserts, the machines also feature a robust steel frame, intelligent hydraulic control system, anti-wear pads, and a thickened PTFE-coated heating plate.
These details work together to improve stability, ease of operation, and long-term usability.
For jobsite users, a good butt fusion machine is not only about technical parameters. It should also make every step of the operation more convenient and reliable. The single-size clamp insert is one of those practical details that can improve the overall user experience.
Conclusion
Single-size clamp inserts may look like a small part of the machine, but they are used in every pipe clamping process.
For the FX Series butt fusion machines, this design helps reduce insert stacking, makes pipe size changes easier, and supports more stable pipe alignment.
In long-term welding work, a simpler and more stable clamping design can help operators work more efficiently and complete PE pipe butt fusion welding with greater confidence.
