Welping Data Logger: A Practical Option for Butt Fusion Welding Records
In butt fusion welding projects, the welding result is important, but the welding record is also becoming increasingly important.
For municipal water supply, gas pipelines, industrial piping, mining projects, and large-diameter PE pipeline construction, project owners often need clear welding data for quality control, project acceptance, and future traceability.

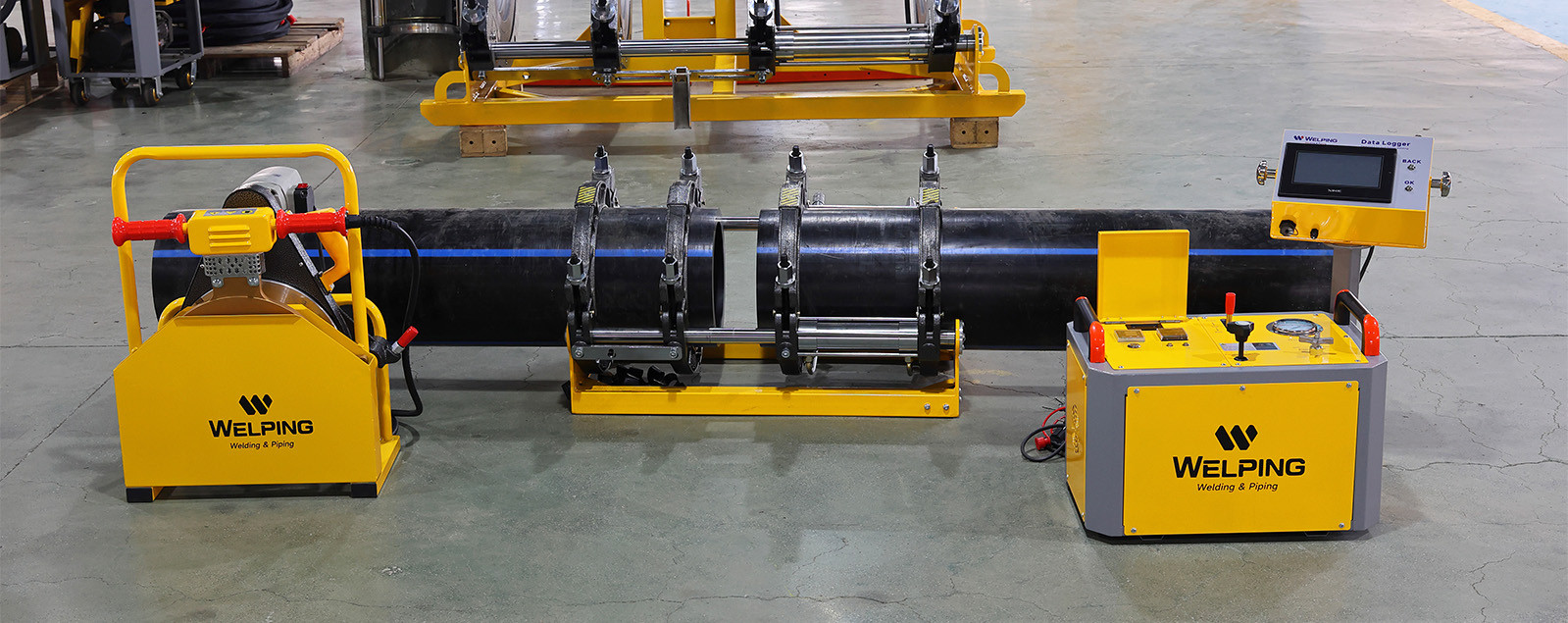

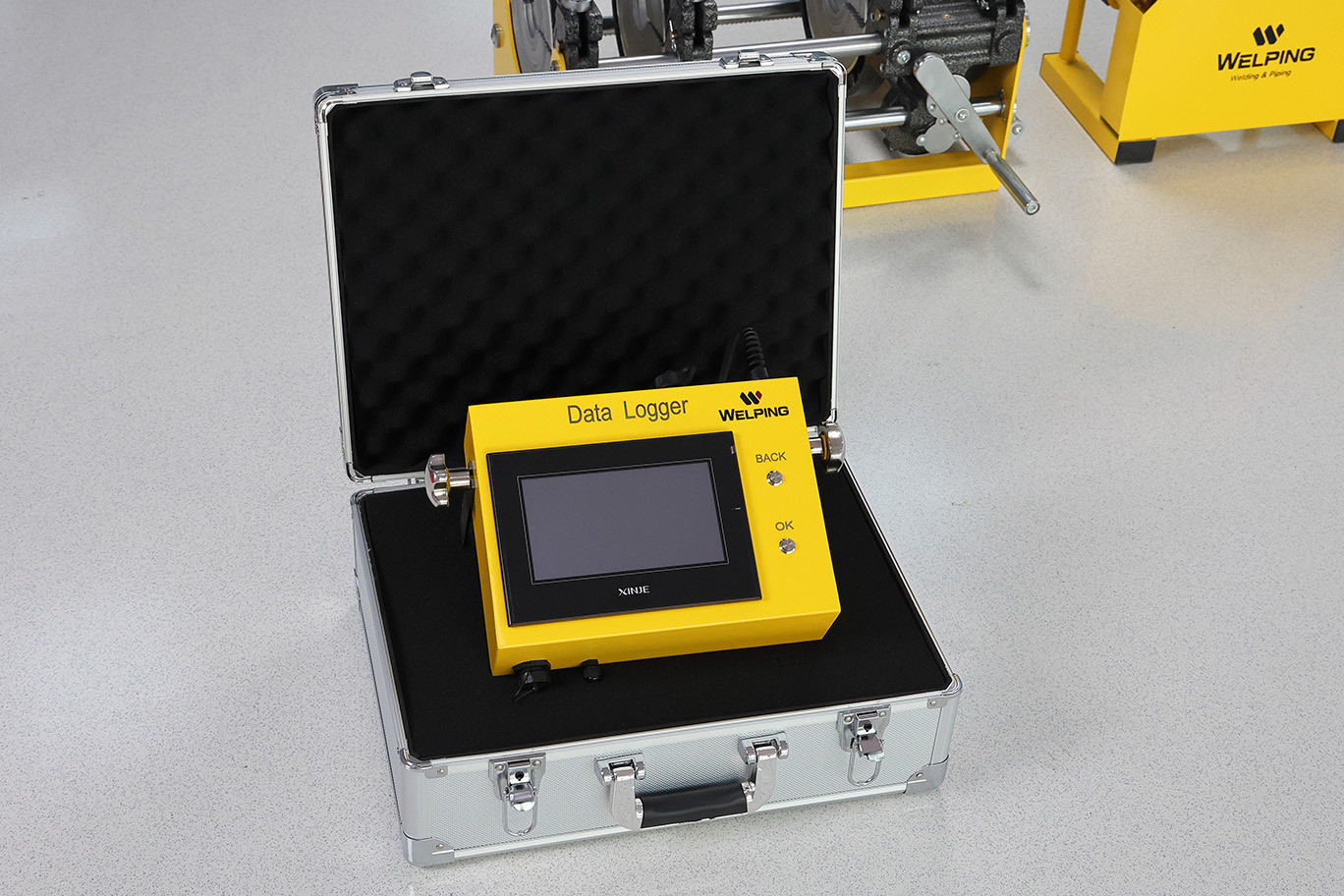

The Welping data logger is an optional device for butt fusion welding machines. It can be installed on the hydraulic station and used together with the welding machine to record key welding parameters during the fusion process.

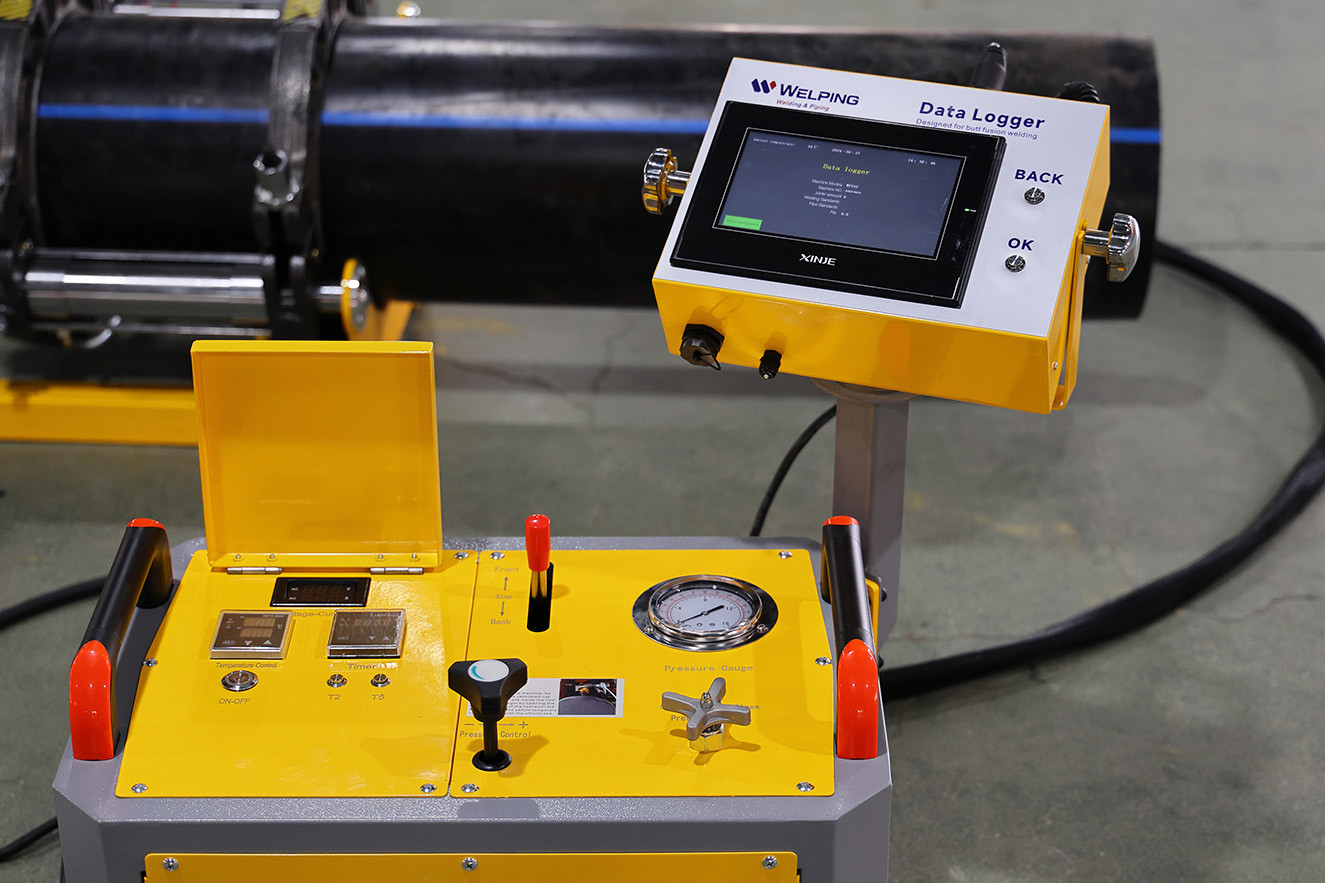

Installed on the Hydraulic Station for Easier Operation

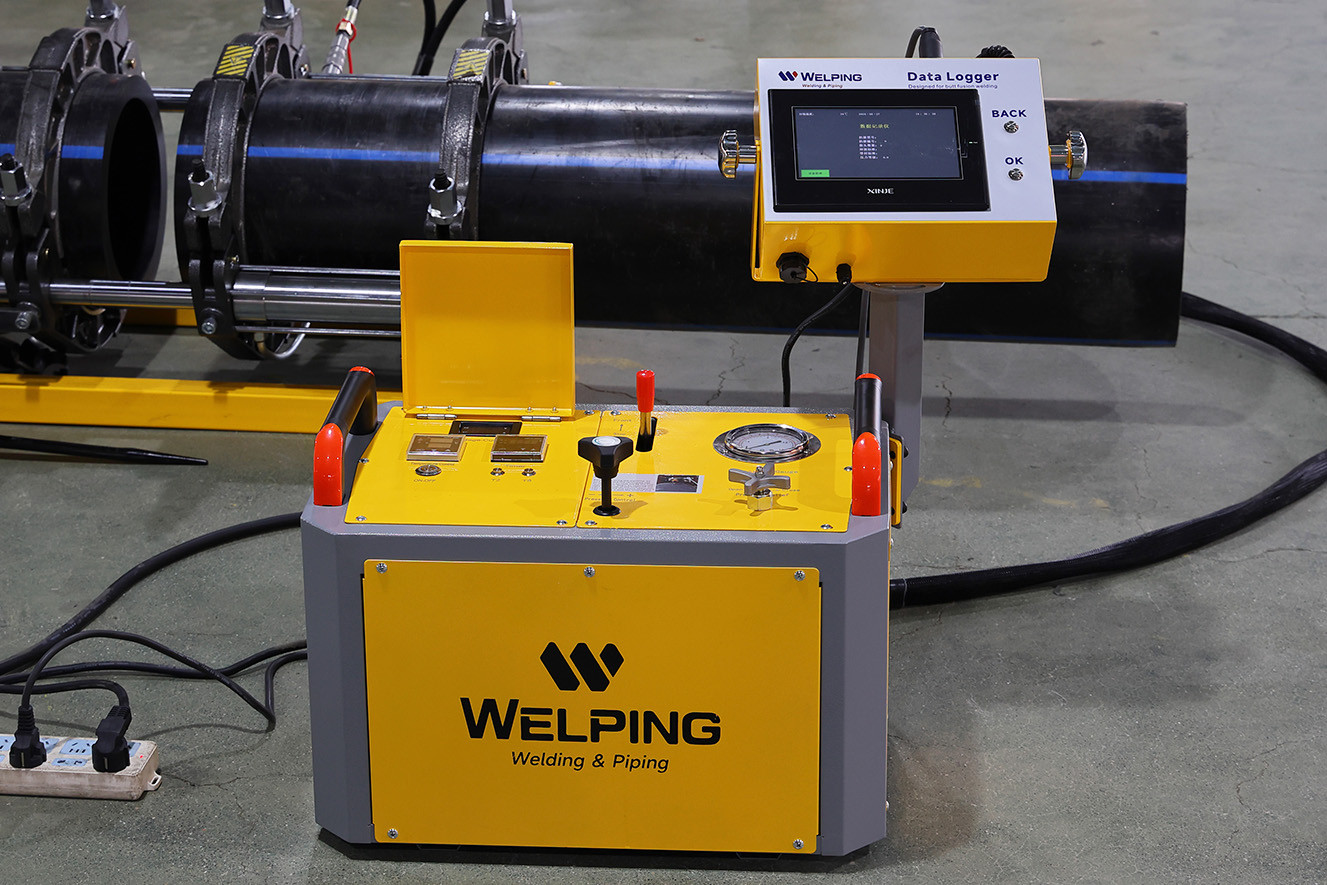

The data logger can be mounted directly on the hydraulic station, making the whole welding system more integrated and easier to operate on site.
This installation method is especially useful for projects where welding records need to be checked, exported, printed, or submitted after construction. Instead of using a separate recording device, operators can manage the welding data directly from the hydraulic station during the welding process.
Recording Key Welding Parameters
During butt fusion welding, parameters such as temperature, pressure, heating time, soaking time, and cooling time all play an important role in the final welding quality.
The Welping data logger records the key data of each welding joint, including welding temperature, actual pressure, heating time, soaking time, cooling time, and related welding records.
With these records, project teams can better understand the actual welding process instead of relying only on manual notes or operator memory.
Data Storage, USB Export, and Built-in Printing
The data logger can store up to 500 welding records, which is practical for daily project documentation and welding data management.
Welding records can be exported by USB, making it easier to save the data on a computer, prepare project documents, or submit records to customers.

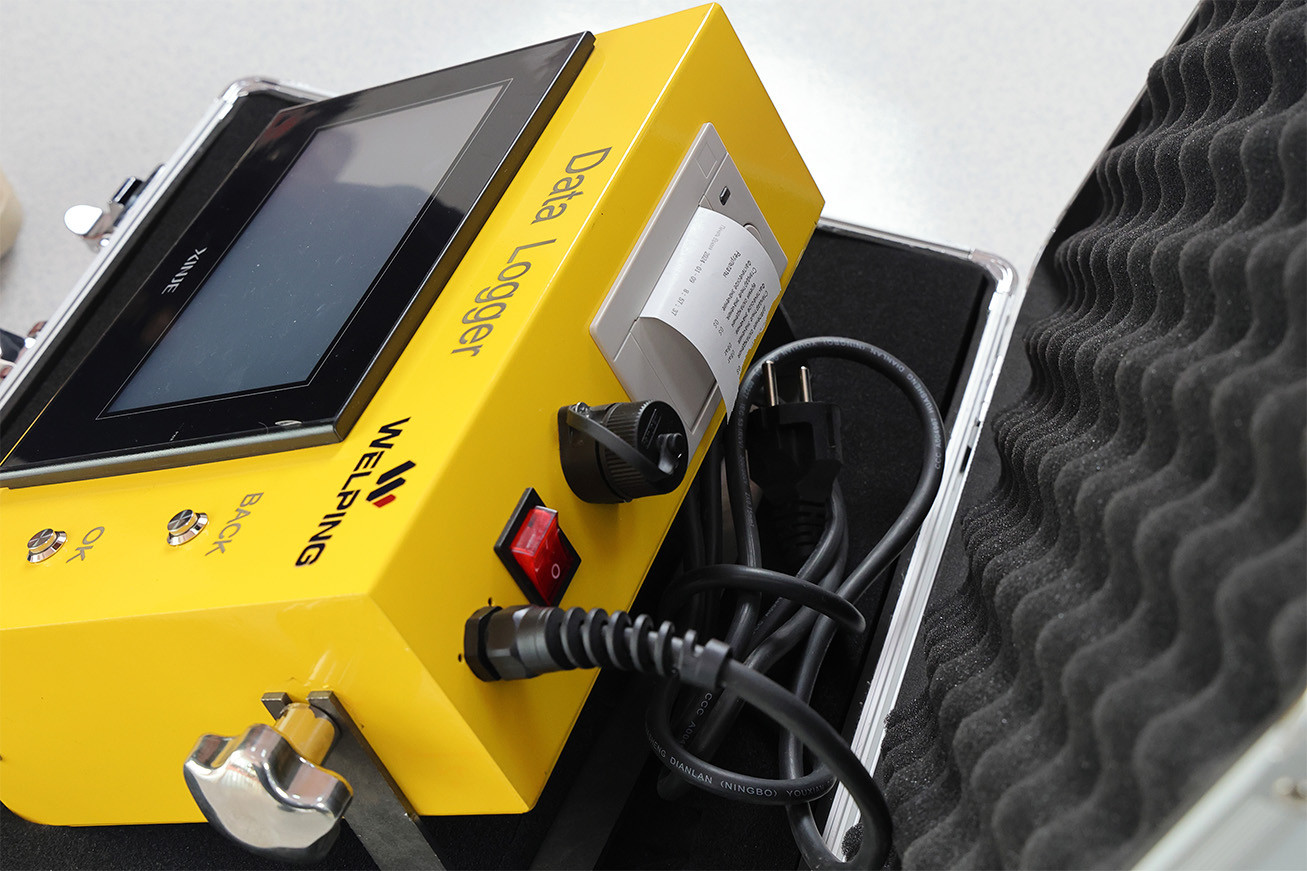

The built-in printer is another useful feature. Operators can print welding records directly on site, which is convenient for customer confirmation, site documentation, and project acceptance.
ISO and DVS Parameter Reference
The data logger supports parameter reference based on common welding standards such as ISO and DVS.
This helps operators check welding parameters more conveniently and makes the welding process easier to manage, especially for projects with specific technical or documentation requirements.
Multi-language Configuration
The Welping data logger comes standard with three languages: Chinese, English, and Russian.
For special project requirements, Polish and Spanish language versions can also be customized. This makes the device more suitable for international projects and local operators in different markets.
Suitable for Projects That Require Welding Records
A data logger may not be necessary for every small welding job. However, for projects that require welding reports, quality traceability, and project documentation, it is a very practical optional configuration.
It is suitable for municipal pipeline projects, gas pipeline construction, industrial piping, large-diameter PE pipe welding, and other applications where welding data needs to be recorded and managed.
Making Every Joint More Traceable
The value of the Welping data logger is not only in recording parameters. More importantly, it helps project teams manage welding data in a clearer and more reliable way.
For butt fusion welding projects that focus on quality control, project acceptance, and long-term traceability, the data logger helps make every welding joint easier to check, record, and trace.
