FX500 Butt Fusion Welding Machine
The FX500 butt fusion welding machine is a commonly used mid-range model in the FusingX FX series, designed for everyday HDPE pipe welding work.
The 500 mm pipe size is widely used in water supply and pipeline projects, and the FX500 is configured specifically around this common working range.
Familiar structure, clean overall layout

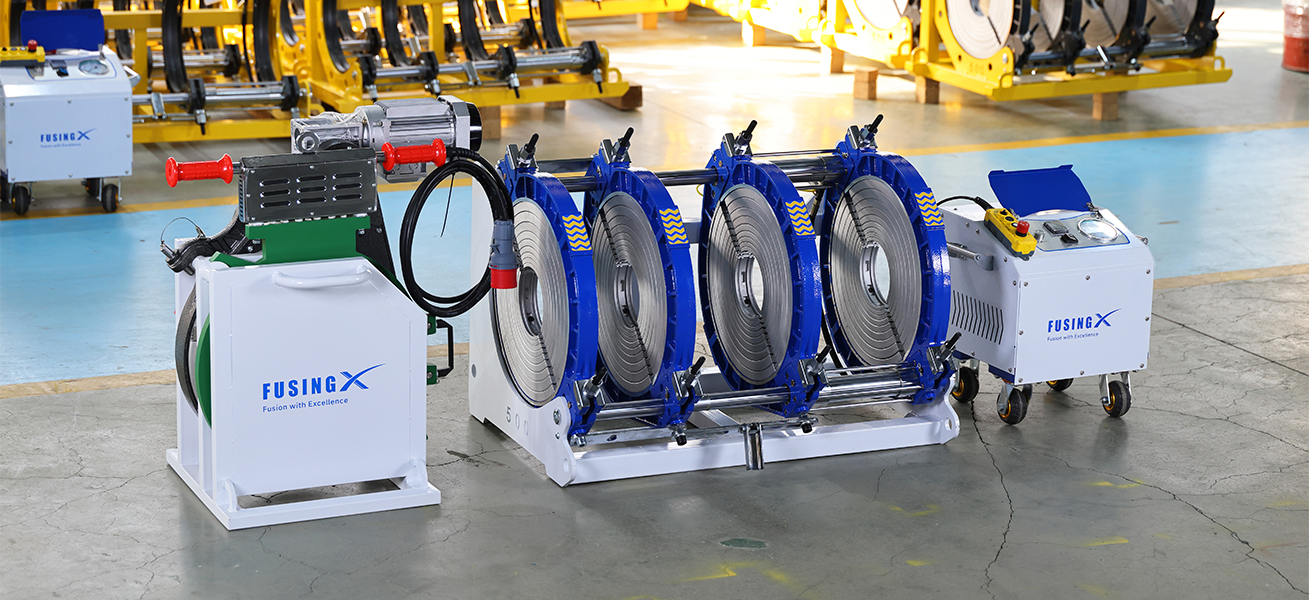

From the overall view, the FX500 follows a familiar setup.
The clamping frame, hydraulic power unit, facer, and heating plate are all independent units that operators are used to.
What stands out is that the layout looks balanced and tidy once set up, without feeling crowded on site.
Clamping frame focused on stability
The clamping frame uses a straightforward structure with evenly distributed clamps.
During pipe loading and alignment, the pipe position is easy to control and does not require repeated adjustment.
This is not a new concept, but it works well in daily use.

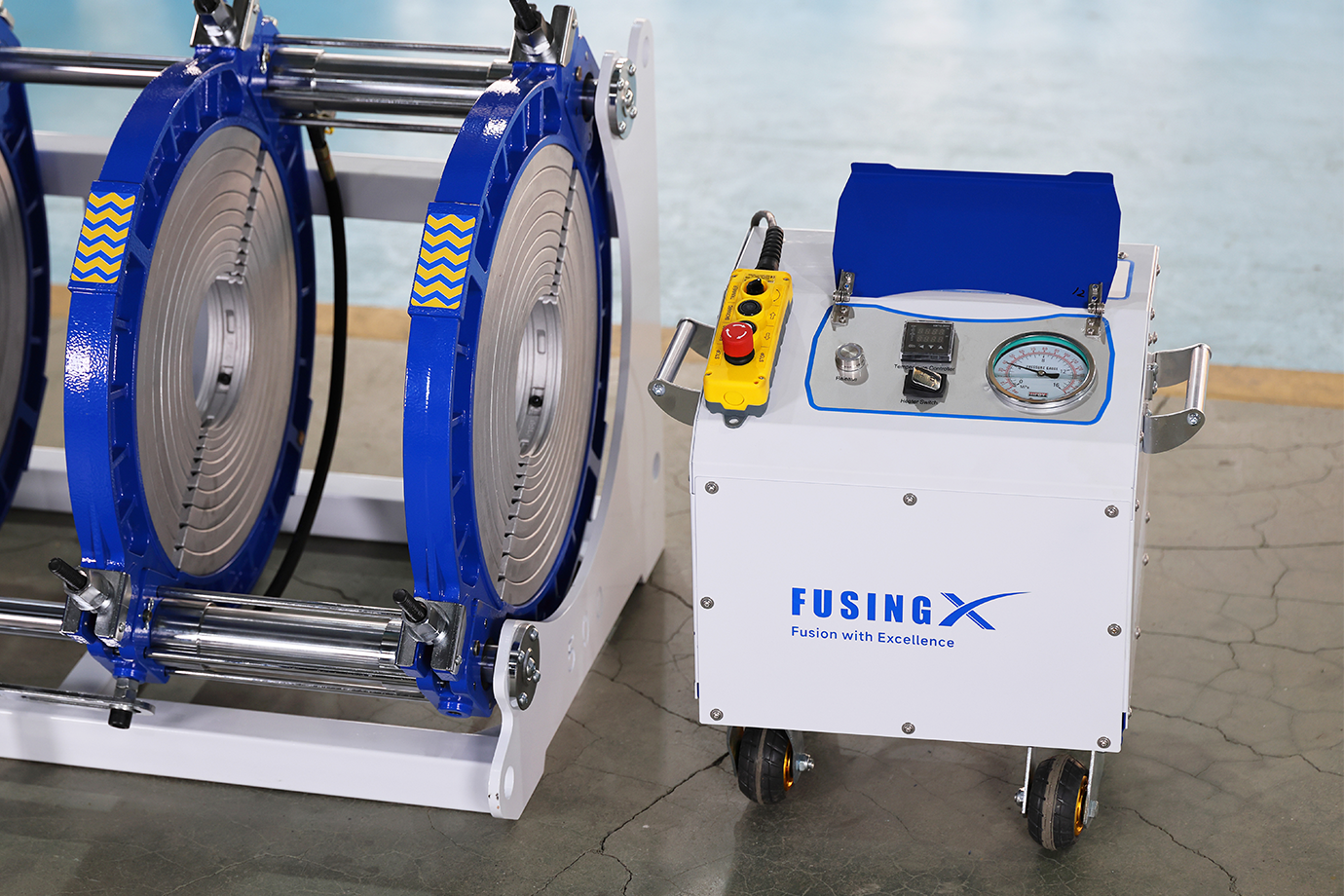

Mobile hydraulic power unit
The hydraulic power unit is a separate unit mounted on wheels, making it easy to move around the site.
The control panel is simple, with the pressure gauge and main controls clearly arranged.
This makes operation more intuitive for the operator.
Standard facer and heating plate
The FX500 is equipped with an independent facer and heating plate.
· The facer prepares clean and even pipe ends before welding
· The heating plate provides stable heating for proper pipe fusion
Both units are simple in structure and easy to handle during daily work.
In short
The FusingX FX500 butt fusion welding machine is not built to highlight special features.
It is a practical, well-balanced machine designed around a commonly used pipe size and everyday welding work.

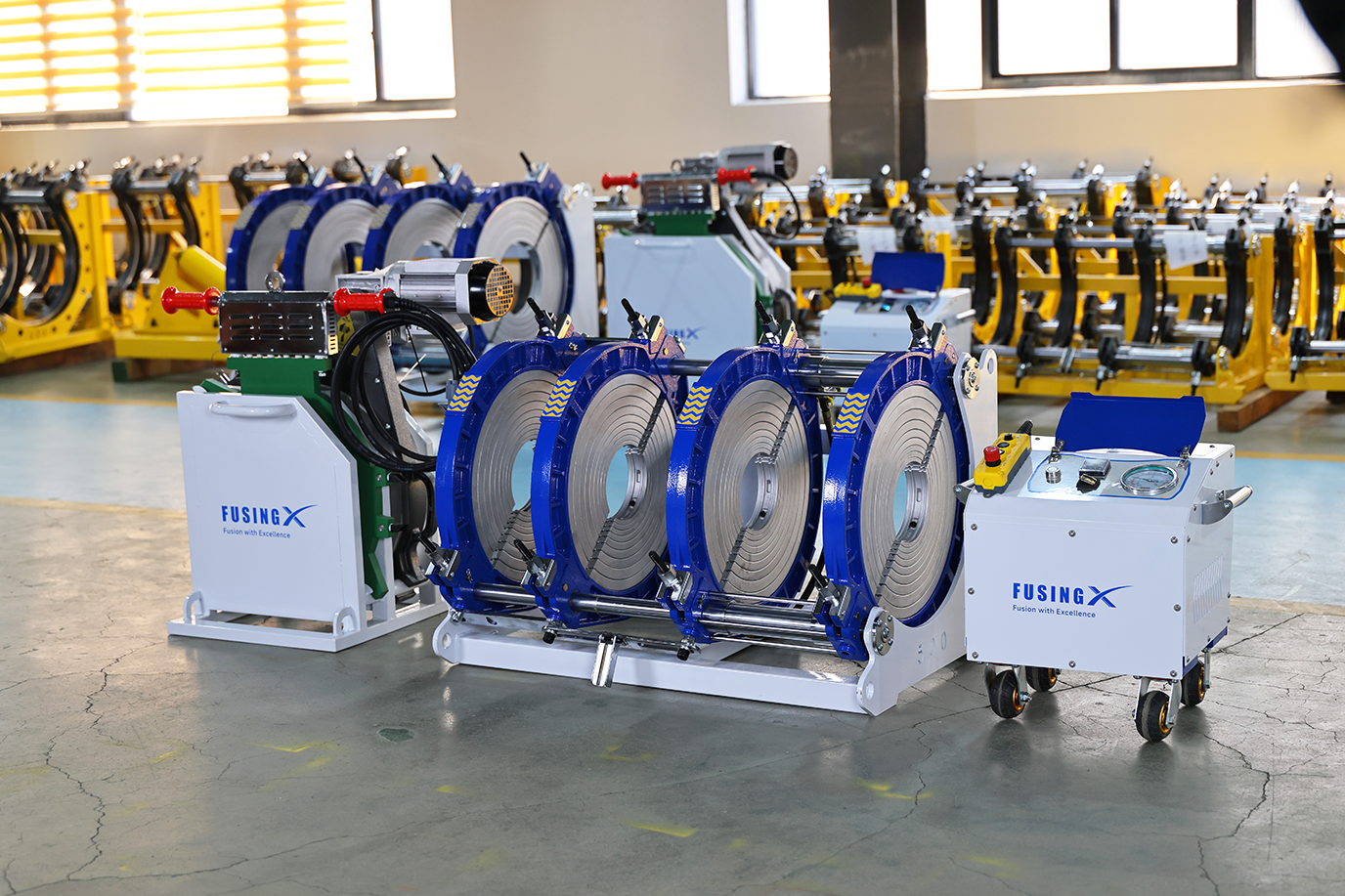

The factory photos show the FX500 in its real working configuration.
