Why a Lifting Crane Matters for Large-Diameter Butt Fusion Welding
In butt fusion welding, the larger the pipe size, the more demanding the operation becomes. For small and medium-sized machines, the heating plate and facer can usually be moved and positioned by hand. But when the welding range moves into larger diameters, these components become much bigger, heavier, and more difficult to handle safely.
That is why a lifting crane becomes a practical option for many large-diameter butt fusion machines.
The lifting crane is usually installed behind the machine and connected to the main frame. Its main function is to assist with the movement, positioning, removal, and reset of the heating plate and facer. Instead of relying completely on manual handling, operators can move these heavy components in a safer, smoother, and more controlled way.
Larger Machines Bring More Than Just Larger Pipe Sizes
As the pipe diameter increases, the machine frame becomes larger, and so do the heating plate and facer. For machines of 630mm and above, these parts are already heavy enough to make manual handling difficult in real jobsite conditions.

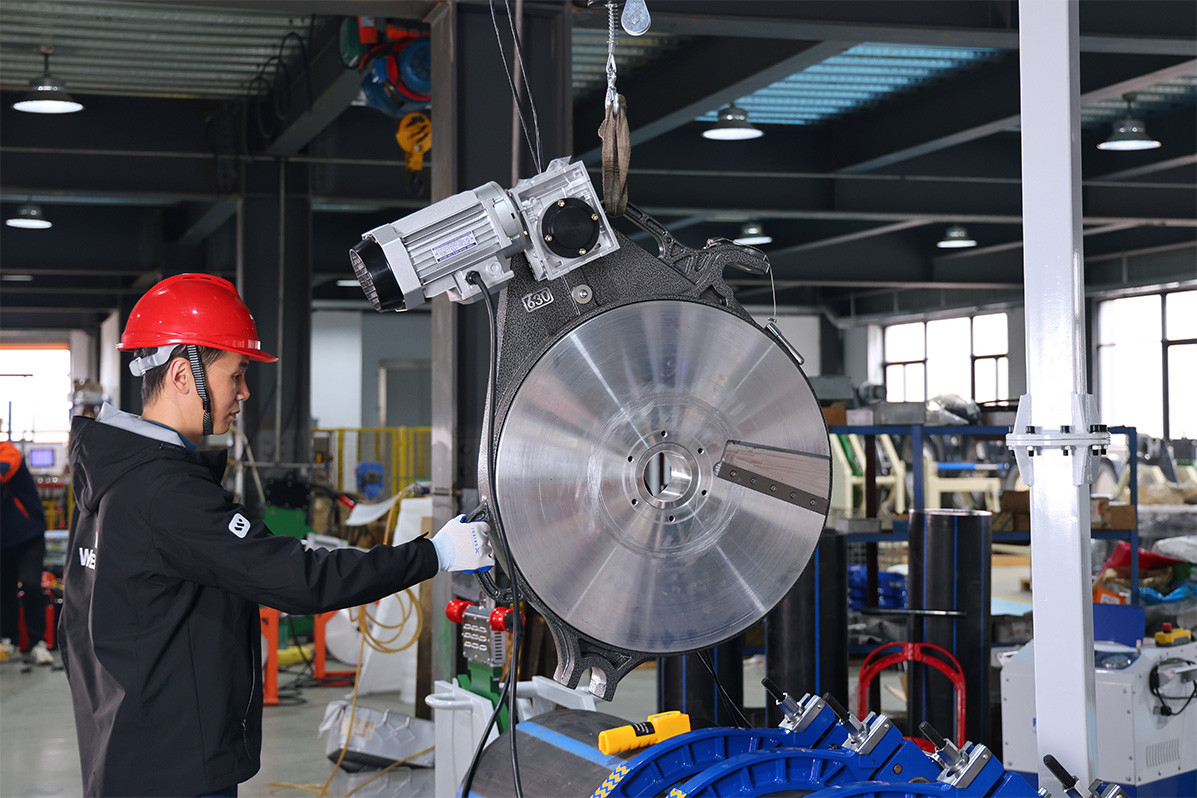

The facer is a heavy mechanical component. During movement and installation, it needs to stay stable. If it swings, drops, or knocks against the machine frame, it may interrupt the operation or even damage the equipment.

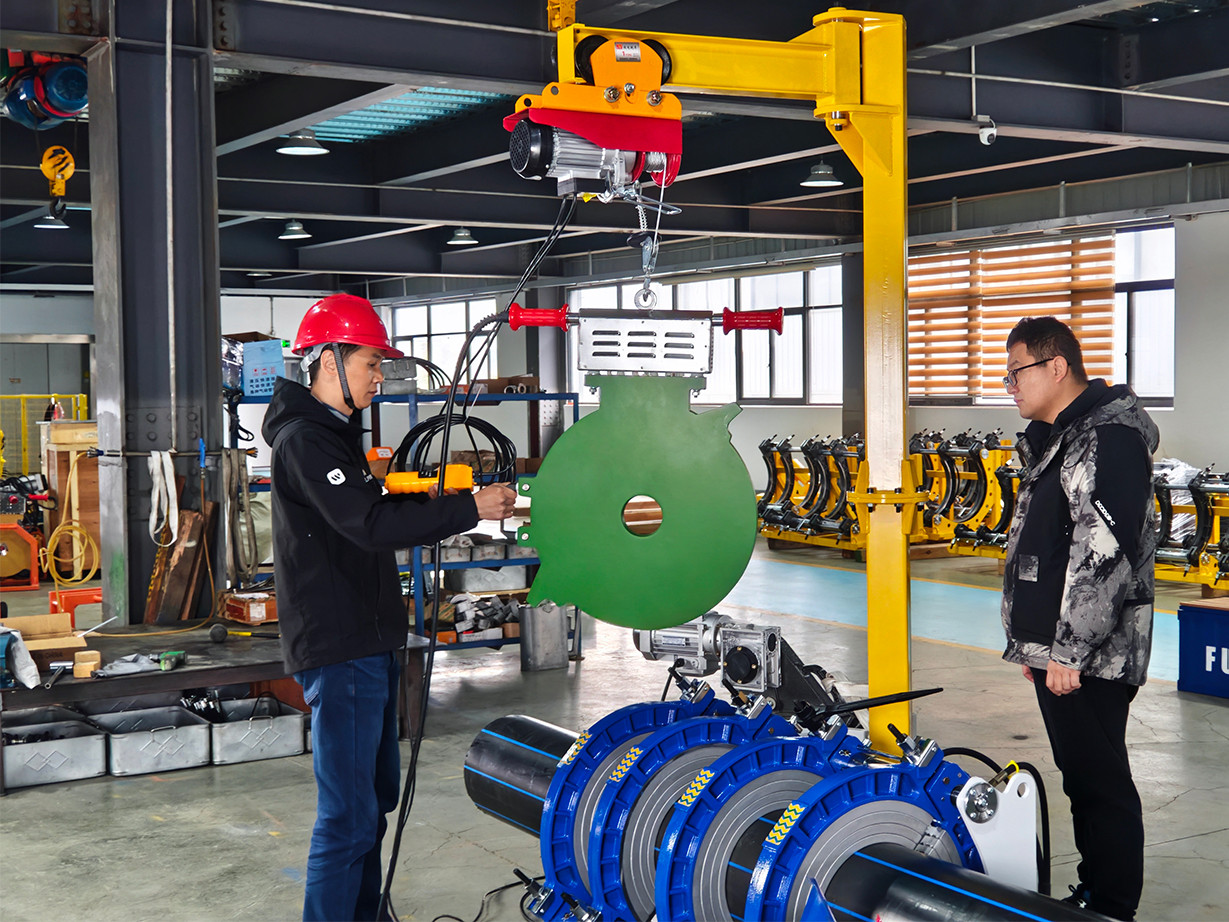

The heating plate brings another challenge: high temperature.
During the welding process, the heating plate is usually operated at around 220°C. At this temperature, handling the plate by hand is not only difficult because of its weight, but also risky because of the heat. A small mistake may lead to burns, collisions, or damage to the machine.
So, when it comes to the heating plate, the problem is not only that it is heavy. It is also hot.
How the Lifting Crane Helps During Operation
The lifting crane is not just an extra accessory. It is designed to solve a real handling problem in large-diameter butt fusion welding.

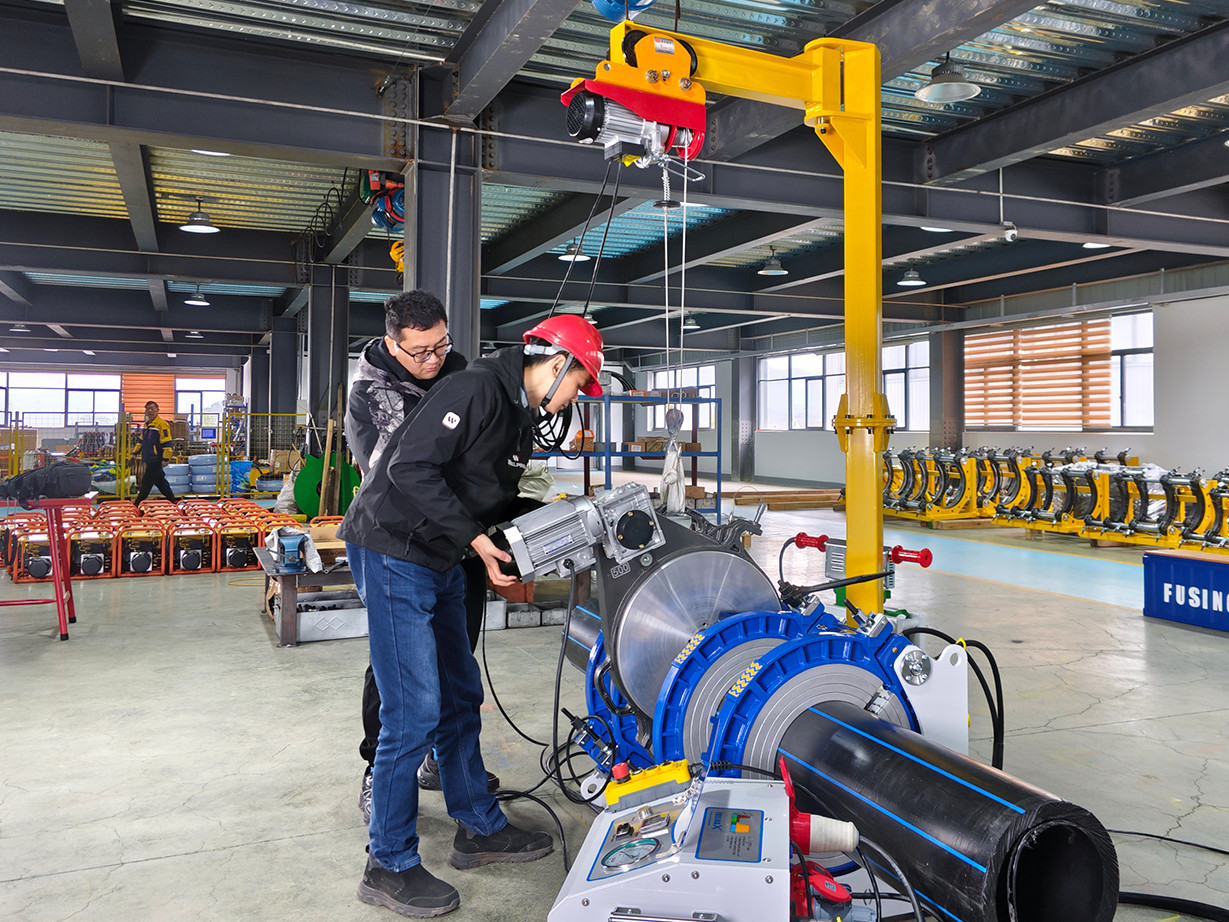

During operation, the crane helps lift, move, install, remove, and return the heating plate and facer. Compared with manual handling, this makes the movement more stable and the working process more predictable.
This is especially important in large-diameter welding, where each welding cycle includes clamping, facing, heating, changeover, joining, and cooling under pressure. If the heating plate and facer are difficult to move, the whole operation can become slower and less controlled.
With the assistance of a lifting crane, operators can manage heavy components more easily and reduce the uncertainty caused by manual lifting and multiple-person handling.
Which Machine Sizes Should Consider a Lifting Crane?
In general, butt fusion machines of 630mm and above are more suitable for a lifting crane. From this size range, the heating plate and facer become much heavier, and the operation requires better stability and safety.
However, the lifting crane is not only for machines above 630mm.
Some customers also choose a lifting crane for 400mm, 450mm, and 500mm machines. For these sizes, the heating plate and facer may still be moved manually with more than one operator, but this depends on the working conditions, operation frequency, and safety requirements.
If the machine is used frequently, or if the jobsite has higher safety expectations, a lifting crane is still a valuable option. This is especially true when the heating plate is working at high temperature and direct manual handling should be reduced as much as possible.
Safety, Stability, and Easier Handling
The most obvious benefit of a lifting crane is that it reduces labor intensity. But its value goes beyond saving physical effort.
First, it improves safety. By reducing direct manual handling of heavy and hot components, the crane helps lower the risk of burns, injuries, and handling mistakes.
Second, it makes the operation easier. On large machines, repeatedly moving the heating plate and facer by hand can be tiring and inefficient. With crane assistance, operators can focus more on the welding process itself.
Third, it improves stability. The heating plate and facer can be moved, positioned, and reset in a more controlled way. This helps keep the workflow smoother and reduces the chance of accidental collision between components.
For continuous welding jobs or large-diameter pipeline projects, this stability becomes even more important. A lifting crane helps make the whole welding process safer, smoother, and better suited for long working hours.
More Than an Optional Accessory
A lifting crane is an optional configuration for butt fusion machines, but for large-size equipment, it can make a clear difference in daily operation.
For 630mm and above butt fusion welding projects, the crane is not only a tool for easier handling. It also helps improve safety, stability, and working efficiency. For 400mm, 450mm, and 500mm machines, it can also be a practical choice when the machine is used frequently or when safety is a major concern.
In large-diameter HDPE pipe welding, a good machine should not only complete the welding job. It should also make the operation safer, more controlled, and more efficient. This is exactly where the lifting crane adds real value.
