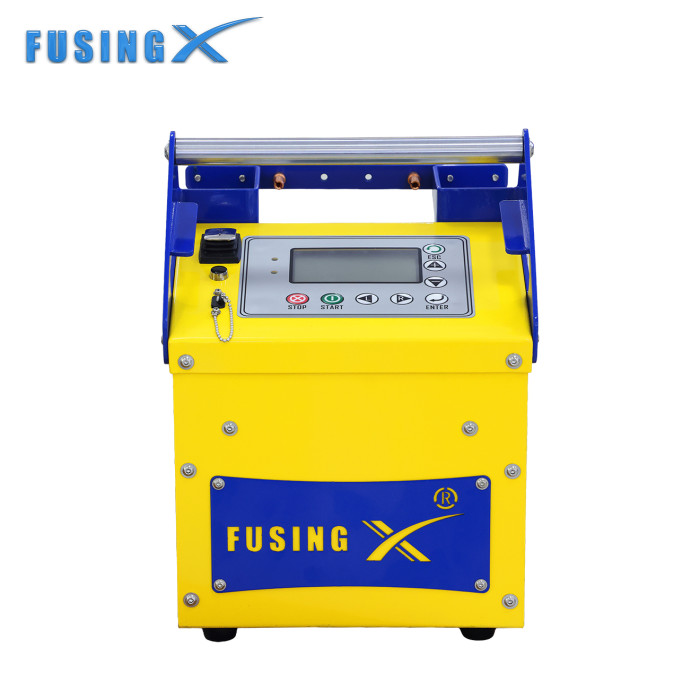

FusingX FX40E / FX45E / FX60E Electrofusion Welding Machine for HDPE Pipe Fittings
| Share | |
|---|---|
| Categories | Electrofusion Machines |
| Brand | FusingX |
| Model | FX40E / FX45E / FX60E |
| Welding Type | Electrofusion |
| Material | PE, PP |
| Power Supply | 220V ±20%, 40–65 Hz |
| Control Mode | Constant Voltage / Constant Current |
| Operation | Automatic & Manual |
| Ambient Temperature | -15°C ~ 45°C |
| Data Interface | USB port, barcode scanner, optional printer |
Detail Information

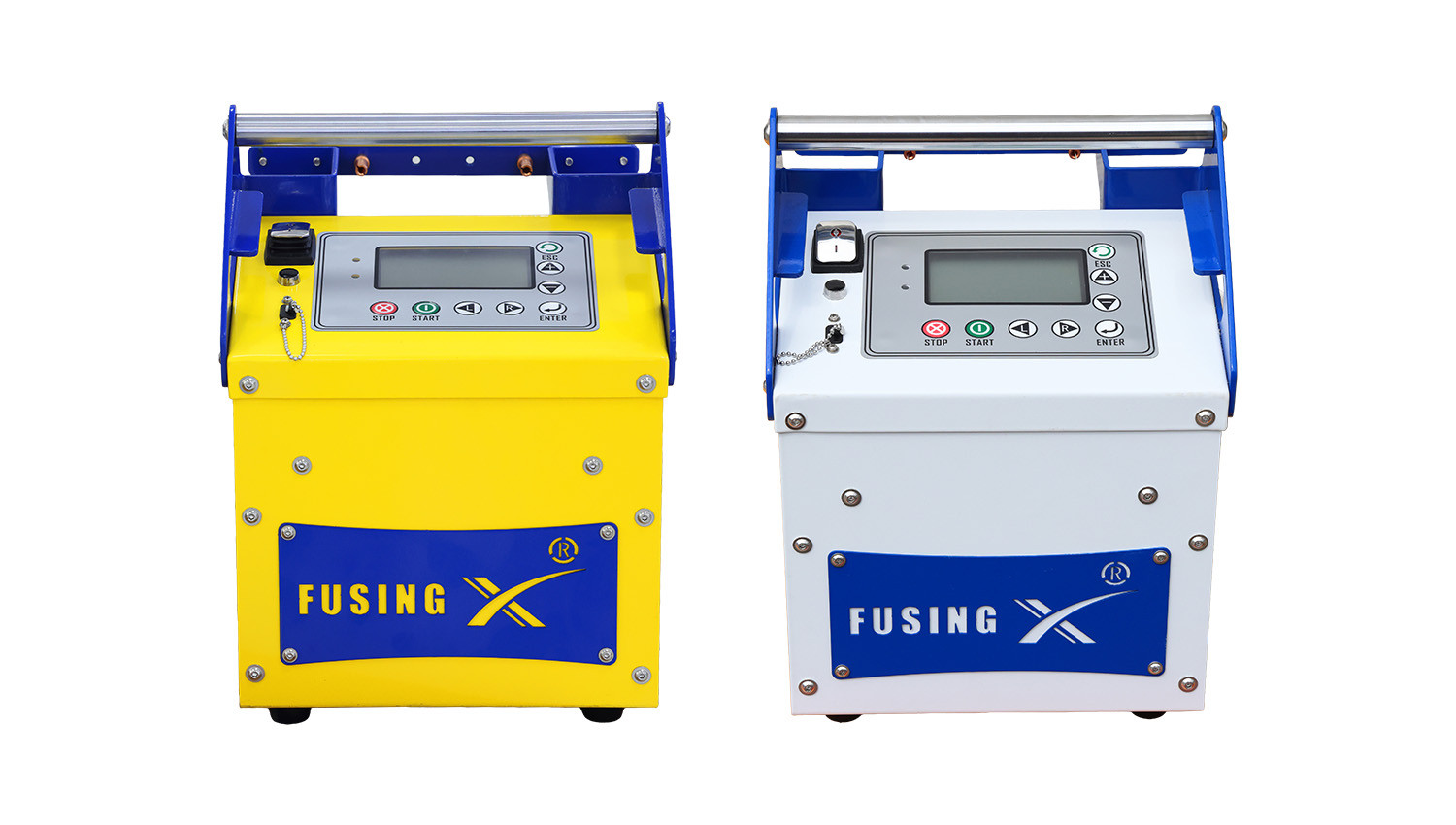

FX Series Electrofusion Welding Machines
(FX40E / FX45E / FX60E)
Overview
Electrofusion welding machines designed for PE and PP pipe fittings. Suitable for gas, water, fire protection, and industrial piping systems. The FX series delivers stable output and simplified operation for consistent welding performance across different job site conditions.
General Specifications
Model: | FX40E / FX45E / FX60E |
Welding mode: | Automatic and Manual |
Suitable material: | PE, PP |
Power supply: | 220V±20%, 40~65 Hz |
Ambient temperature: | -15~45°C |
Control mode: | Constant voltage / Constant current |
Data record: | 500 |
Duty rate: | 60% |
Data interface: | Barcode scanner, USB port, optional printer |
Key Features
Smart Control System
Streamlined control logic improves operation efficiency and reduces manual errors.
Consistent Welding Output
Stable voltage and current control ensure accurate welding cycles and consistent joint quality.
Data Recording & Connectivity
Supports barcode scanning, USB data export, and optional printing for welding traceability.
Durable Frame Design
Heavy-duty steel housing designed for field use, resistant to dust and impact.
Structure / Details

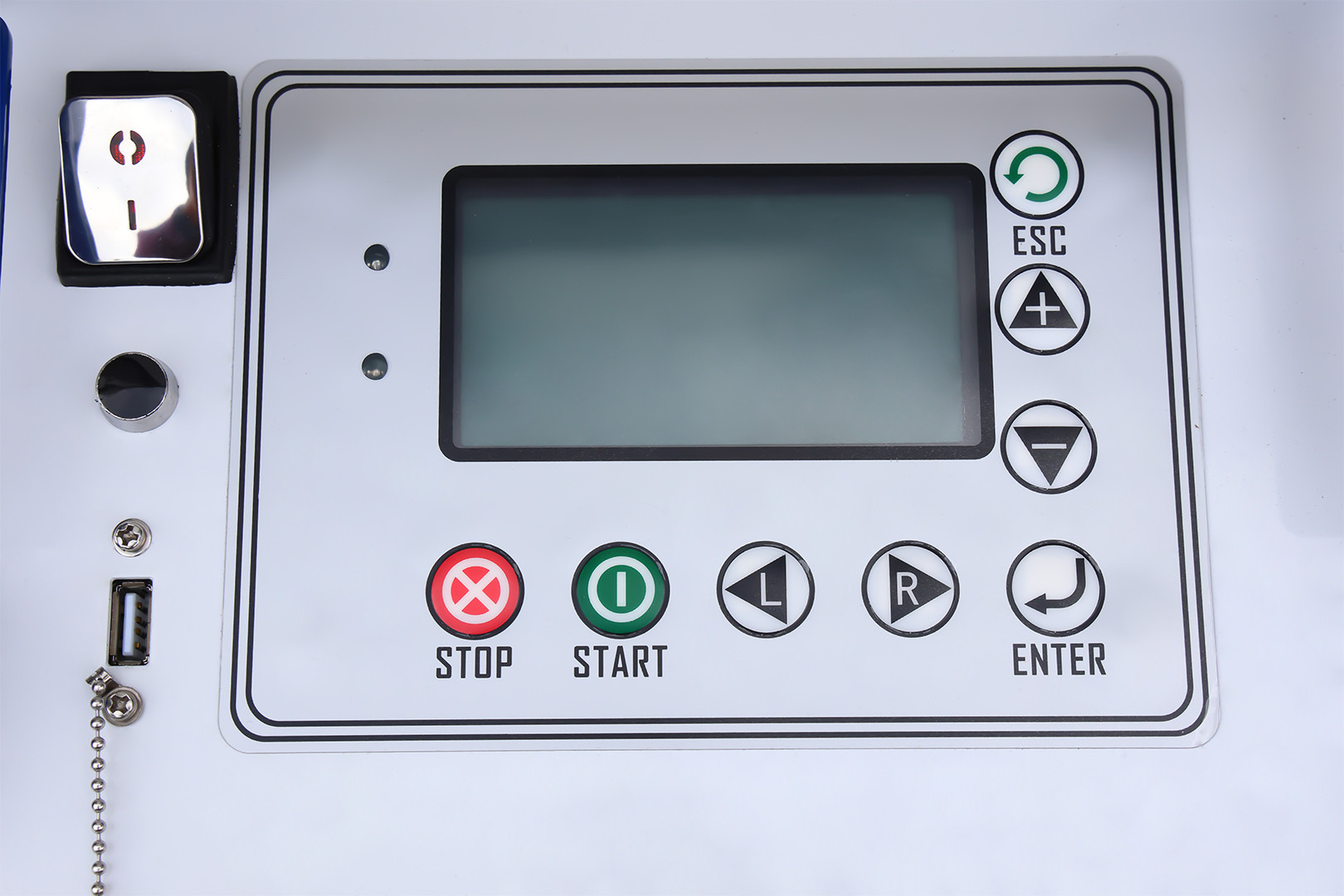

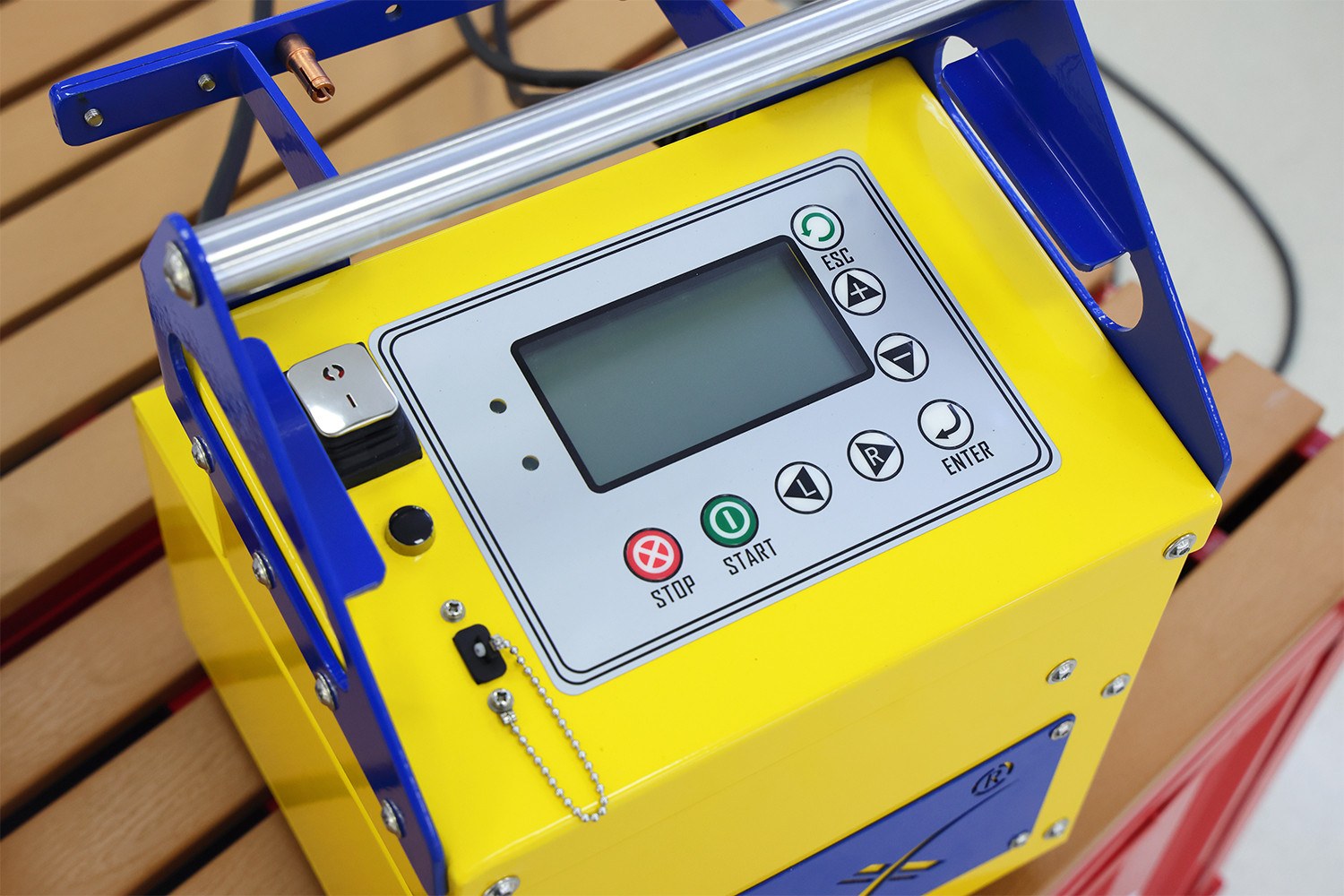

Control Panel
Intuitive interface with LCD display for easy operation and parameter control.
Standard USB output port.

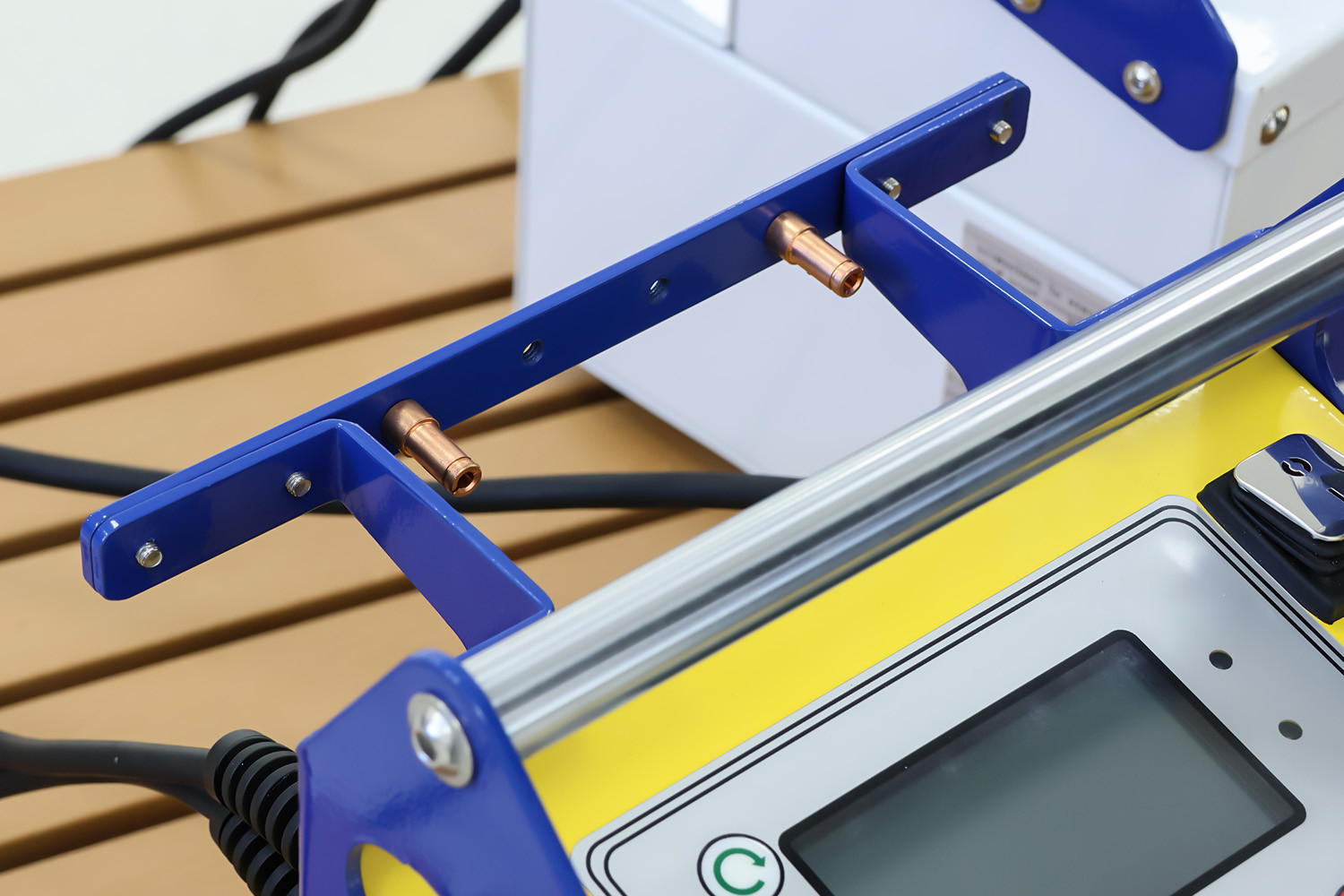

Connection Ports
Well-arranged ports ensure stable connections for welding cables and accessories.

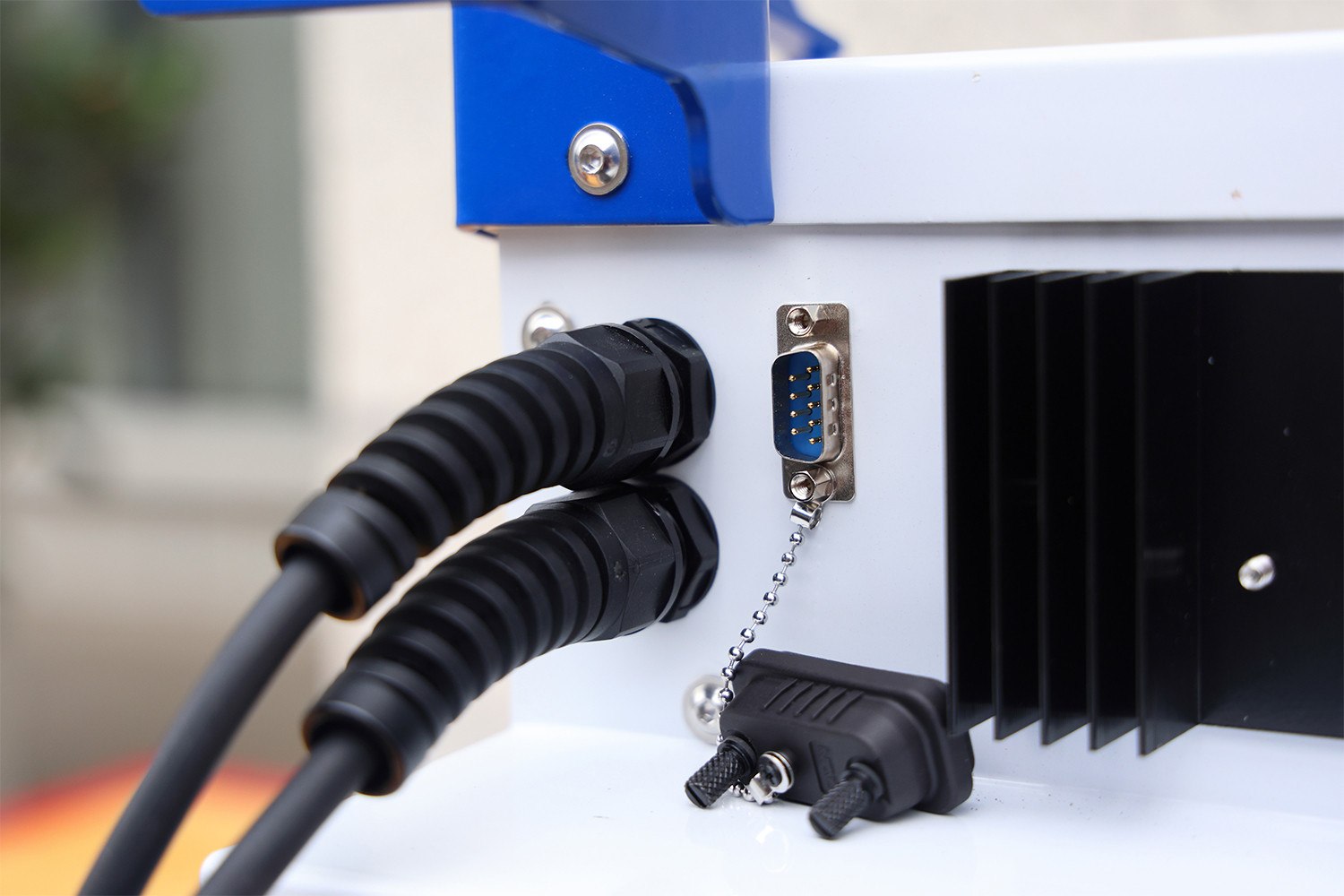

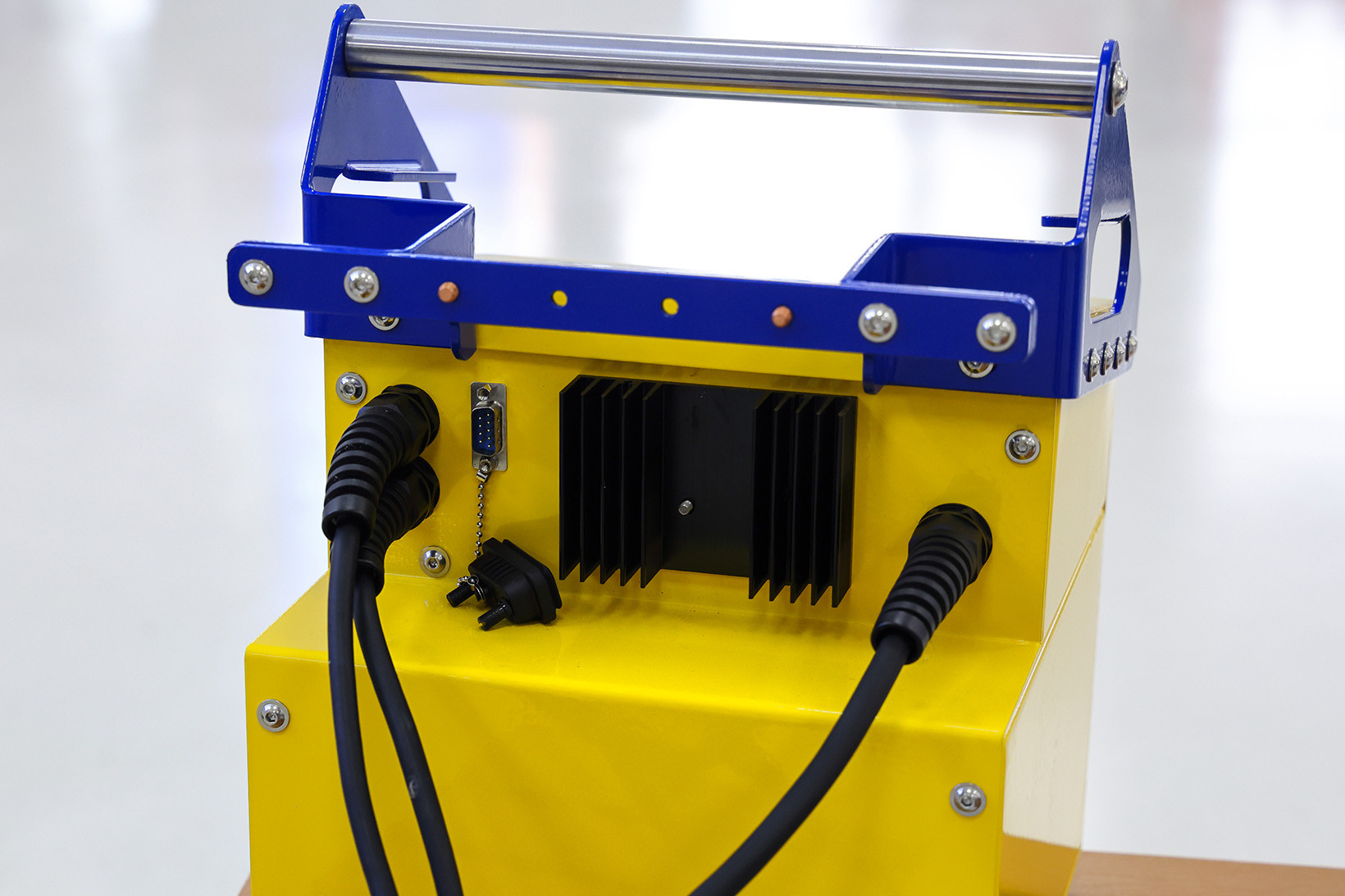

Backside Layout
Compact rear design with integrated components for efficient heat dissipation and durability.

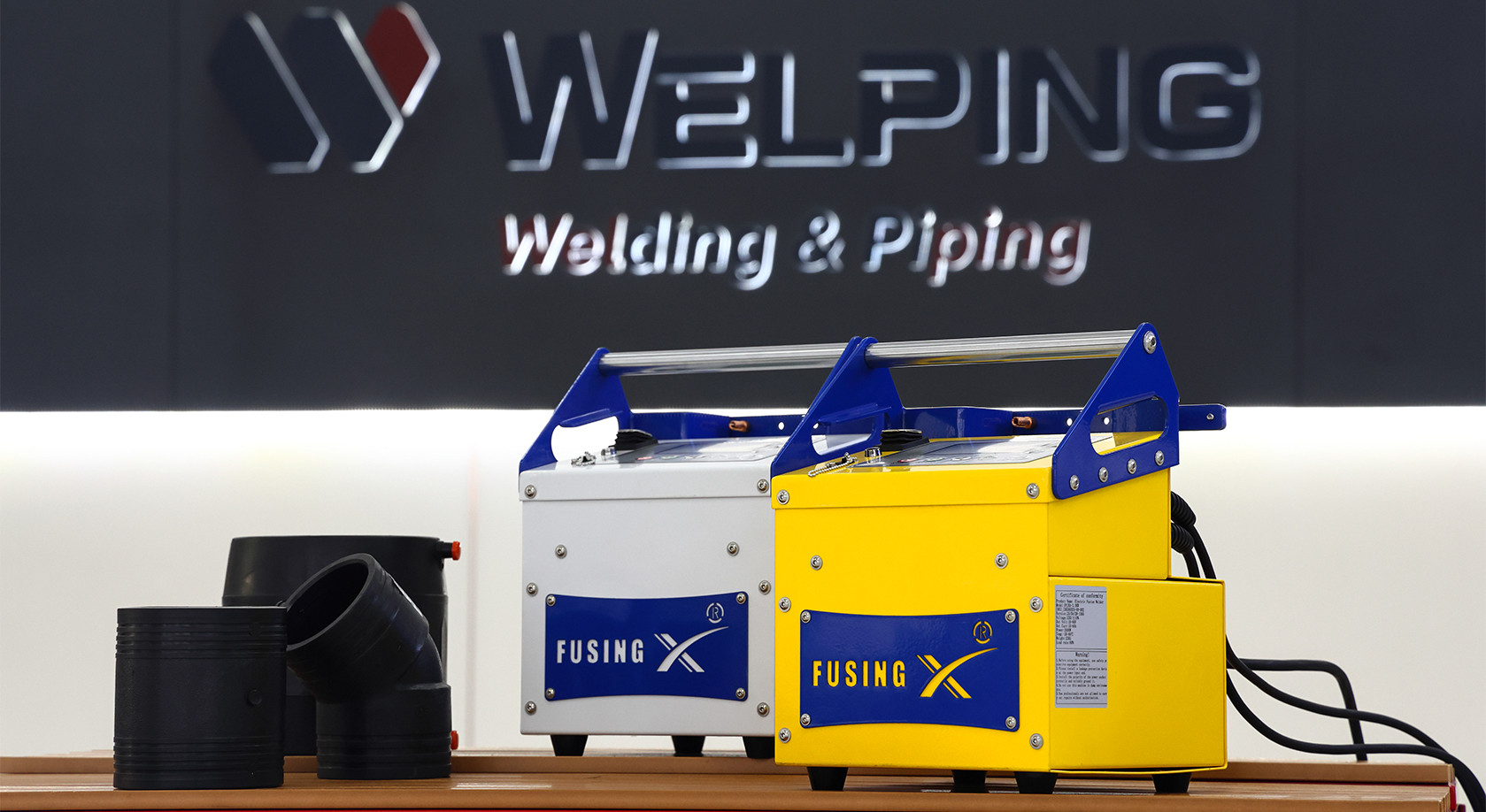

Model Selection
Multiple models available for different pipe sizes and project requirements.
| Model | Welding Range | Power | Output voltage | Output Current |
| FX40E | 20–355 mm | 4000W | 3~60V | 3~60A |
| FX45E | 20–630 mm | 6000W | 3~95V | 3~60A |
| FX60E | 20–630 mm | 6000W | 3~60V | 3~90A |

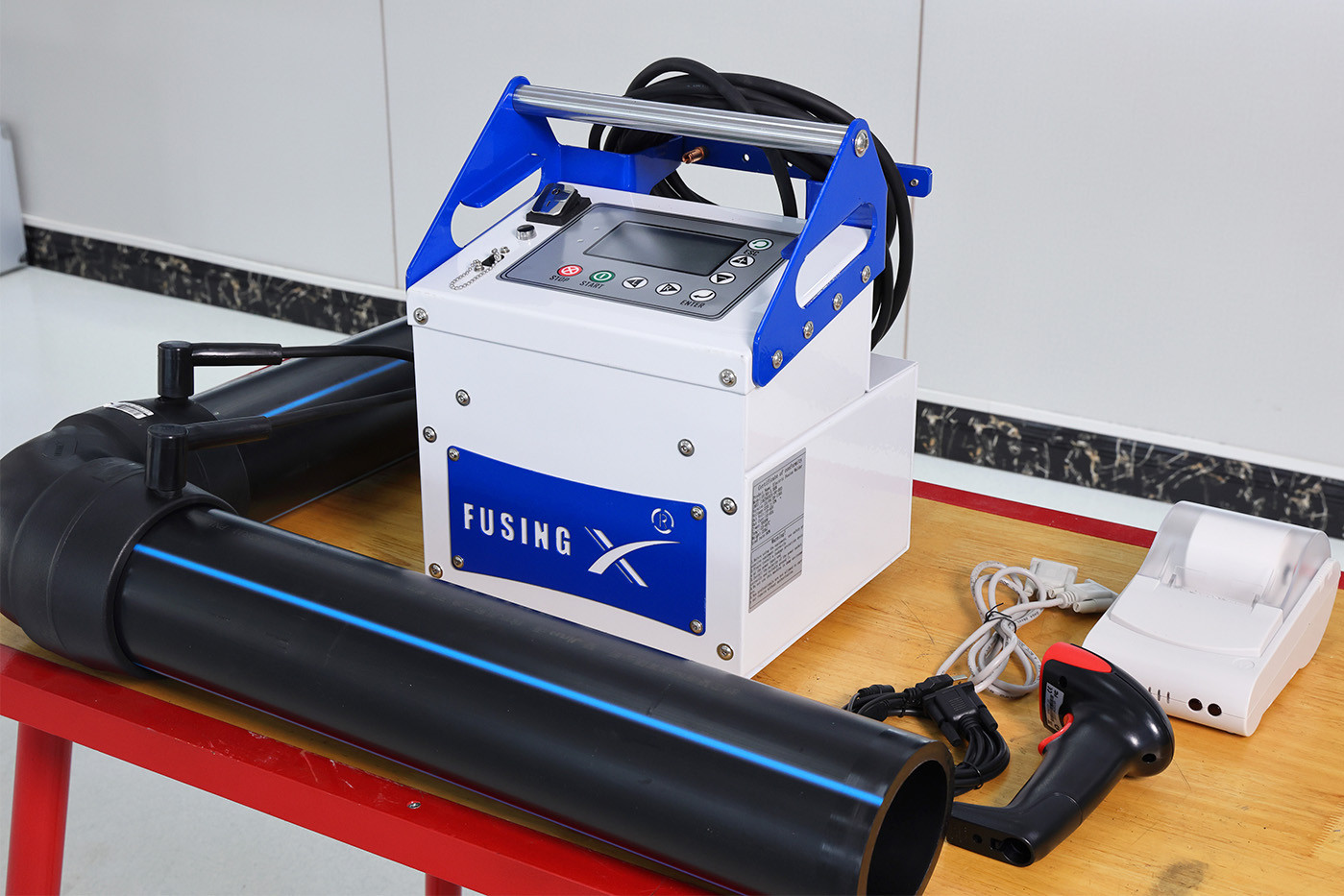

Applications

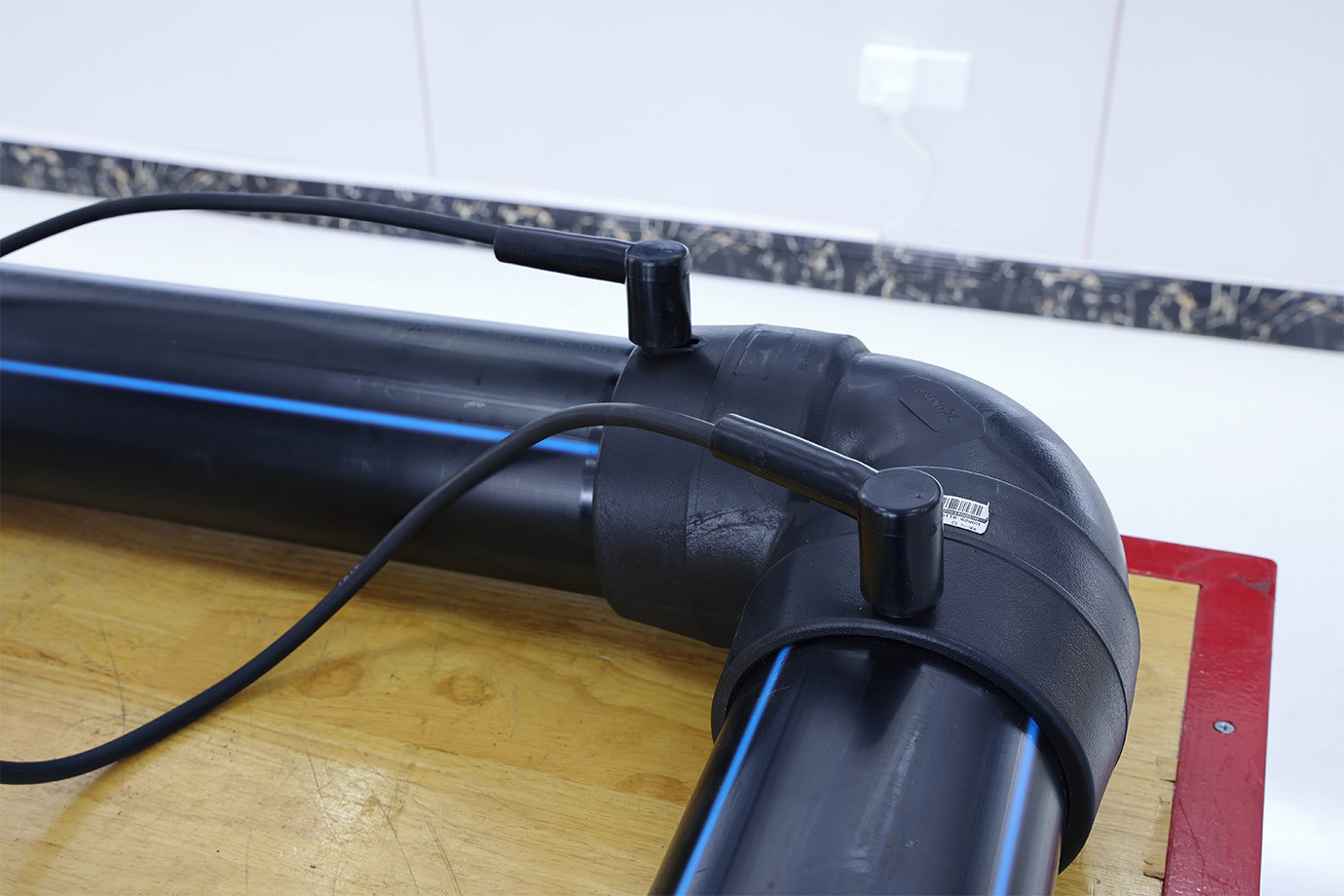

Suitable for electrofusion welding in gas, water, fire protection, and industrial piping systems.
· Gas pipeline systems
· Water supply systems
· Fire protection piping
· Industrial piping systems
Standard and Optional Accessories

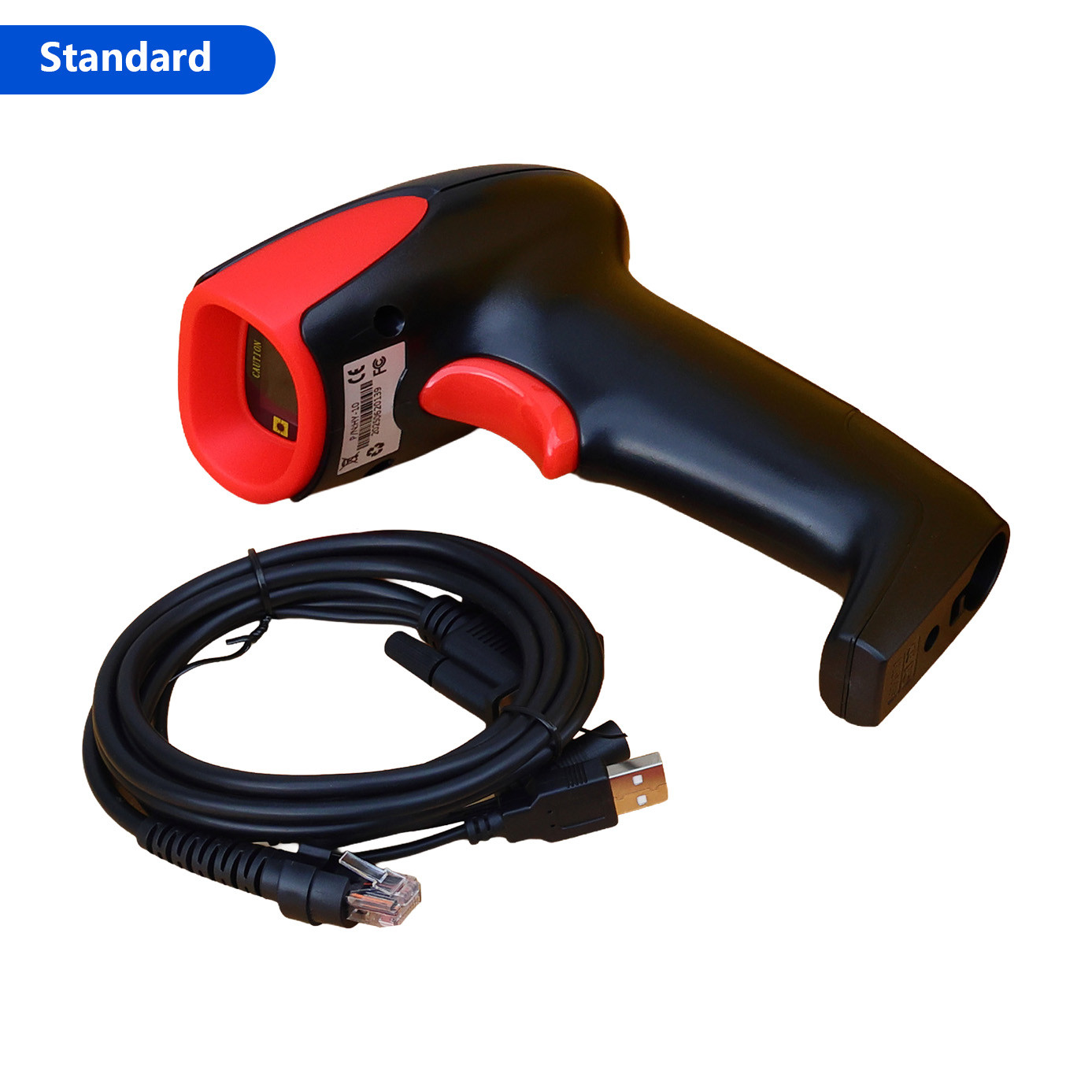

Barcode Scanner
Scans fitting barcodes to load welding parameters.

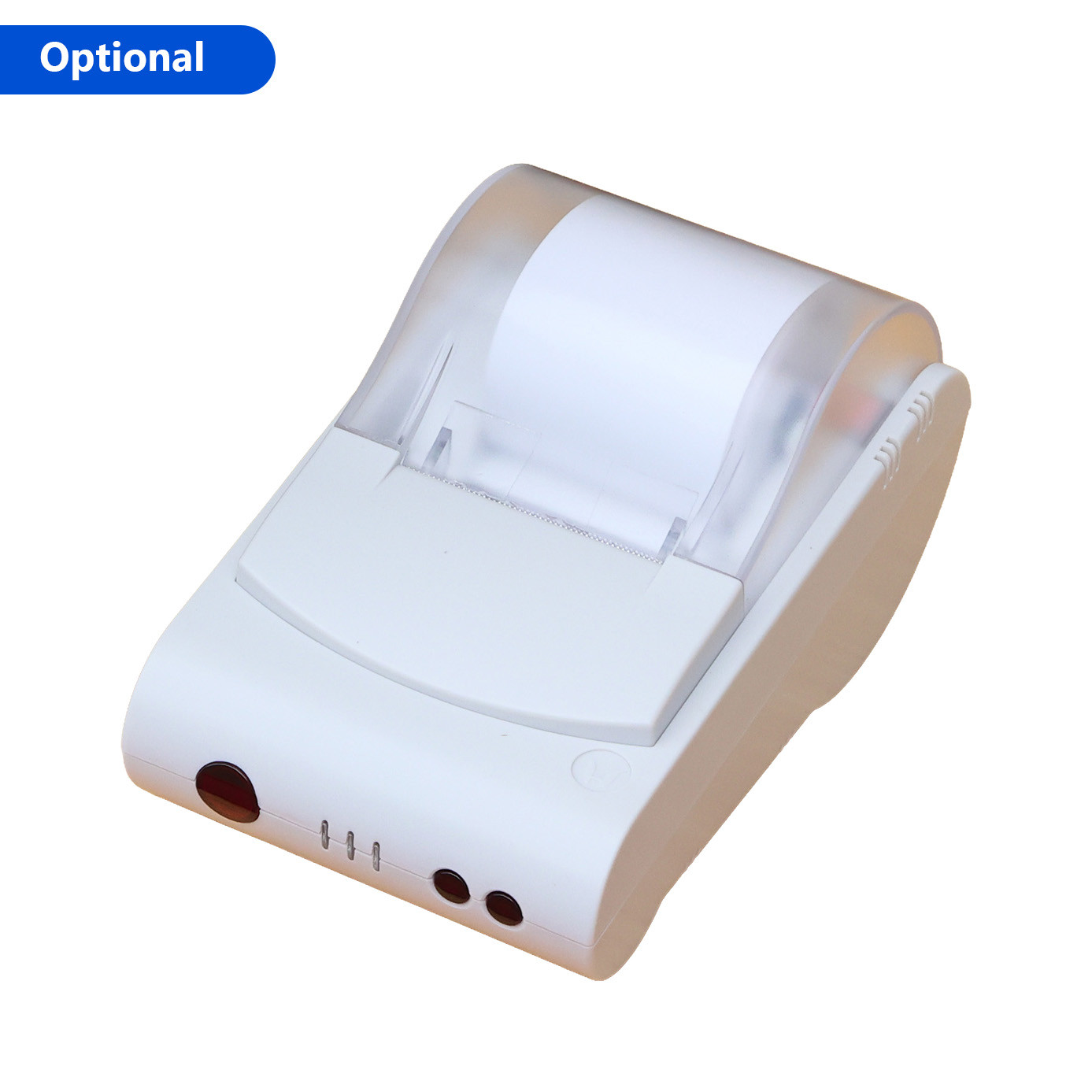

Printer
Prints welding data for traceability and records.

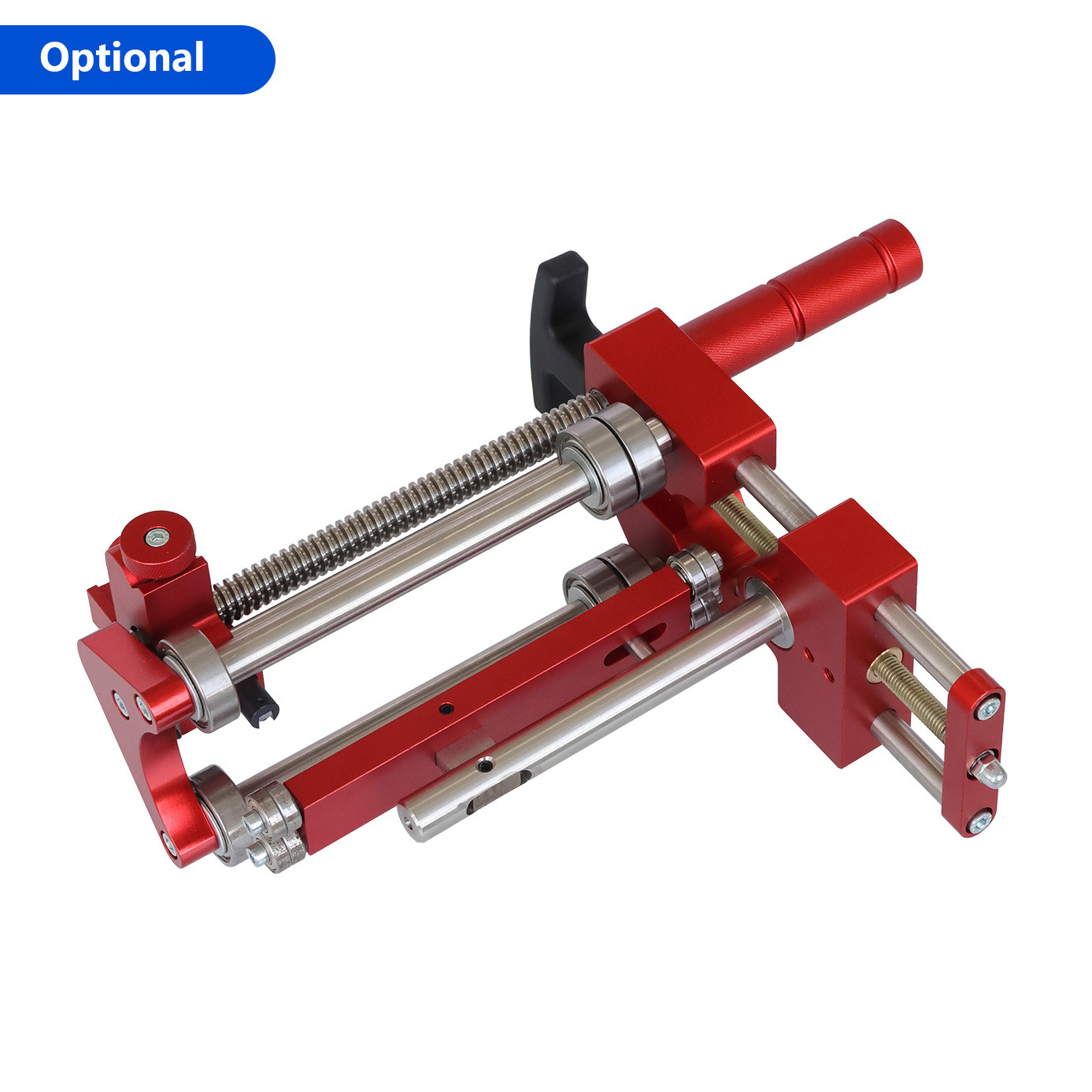

Scraper
Removes oxidation layer from PE pipe surface before electrofusion.

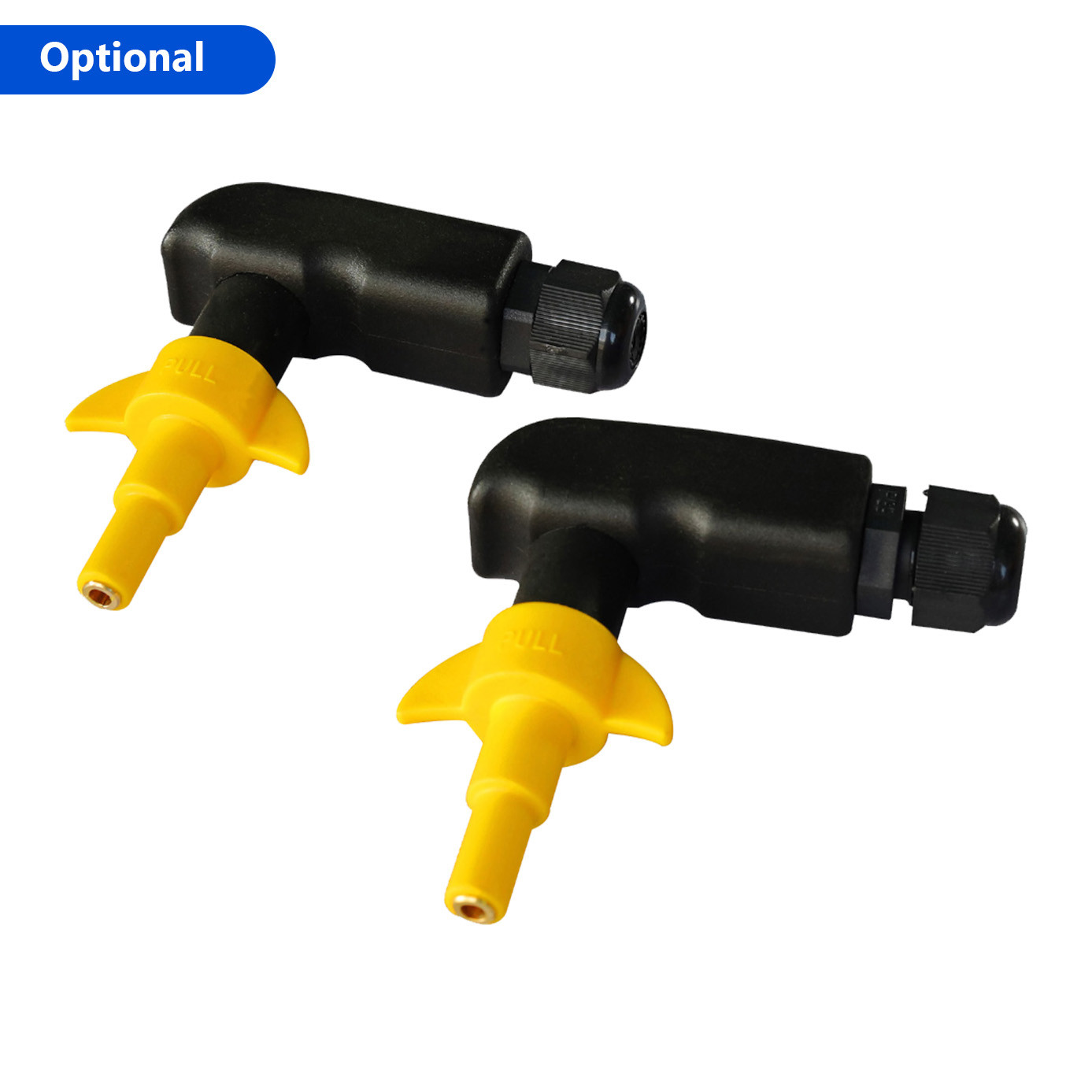

Multi-purpose Plug
Used for connecting auxiliary devices to the control unit during operation.
Standard configuration may vary by model. Optional items available upon request.
