FX Series Green Heating Plate: Engineering Choice, Not Just a Color
Within our butt fusion machine product range, we use several types of heating plates.
Different series and application requirements call for different standards in structure, materials, and temperature stability.
The green heating plate represents the highest standard within our heating plate system and is therefore supplied as standard equipment on FX series butt fusion machines only.
Since the FX series is positioned as our high-end machine range, using a higher-spec heating plate for critical components is a natural and reasonable configuration choice.
Temperature Consistency Starts at the Factory
In butt fusion welding, temperature consistency across the heating plate plays a critical role in weld quality.
To reduce uncertainty caused by temperature deviation, every green heating plate used on the FX series undergoes multi-point temperature testing after production.
Using dedicated measuring equipment, we check 12 key points across the heating plate surface.
This approach focuses on overall temperature distribution rather than relying on a single measurement point.

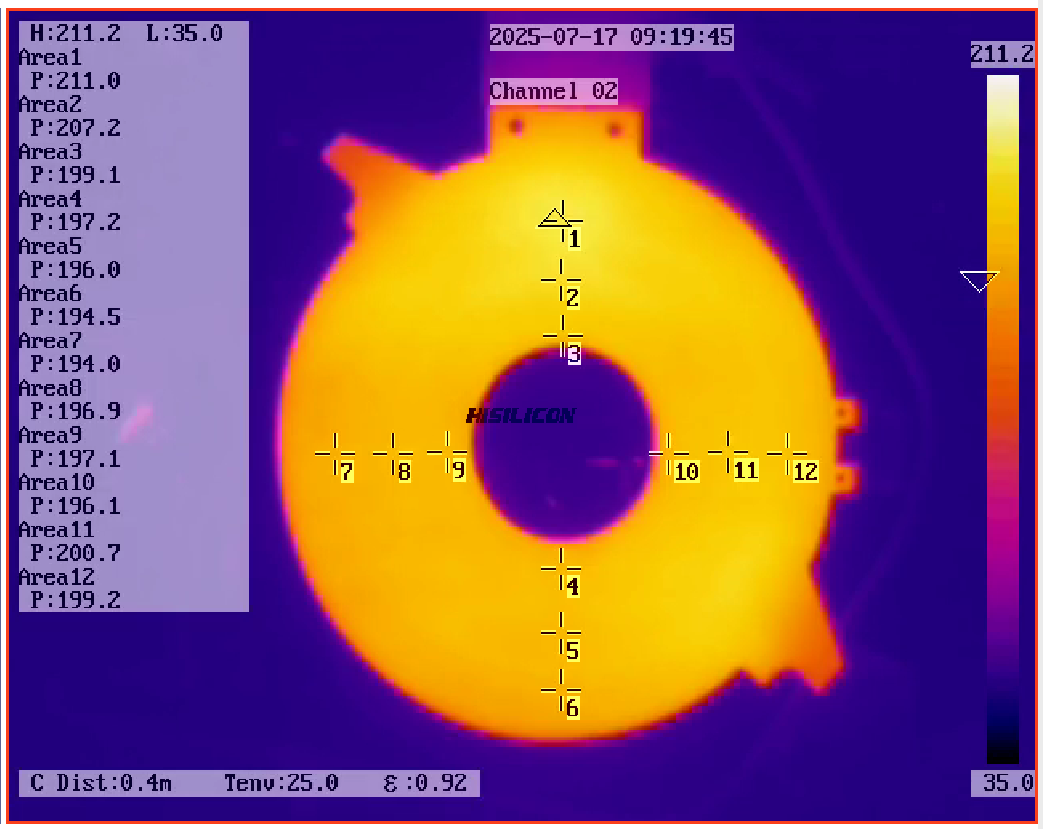

Infrared thermal images clearly show how the plate performs under operating conditions.
Heating Plate Structure Designed for Stable Operation
The green heating plate is not defined by appearance alone. Its structure is designed with long-term stability in mind:
· Thicker plate body
Helps improve heat retention and temperature stability
· High-quality non-stick coating
Balances durability with practical maintenance needs

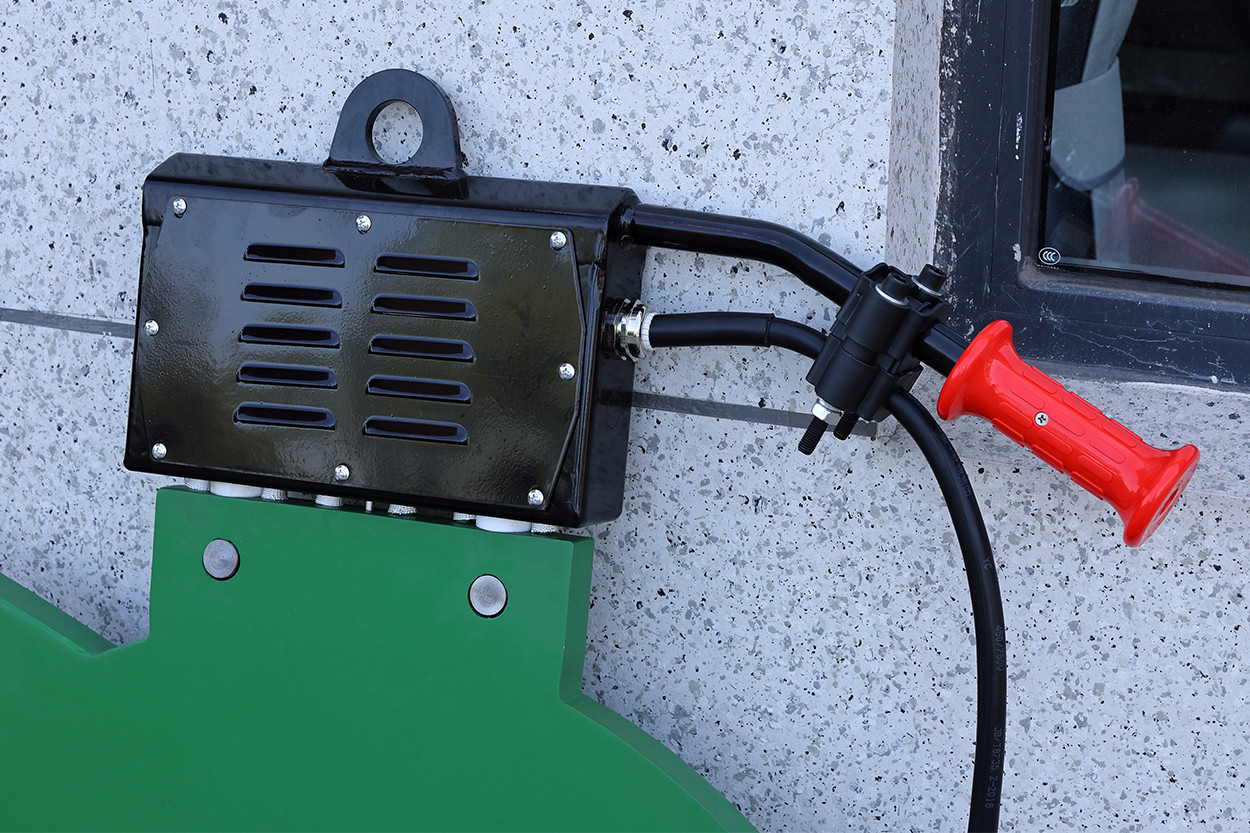

· Internal use of reliable electrical components
Supports continuous and stable heating performance

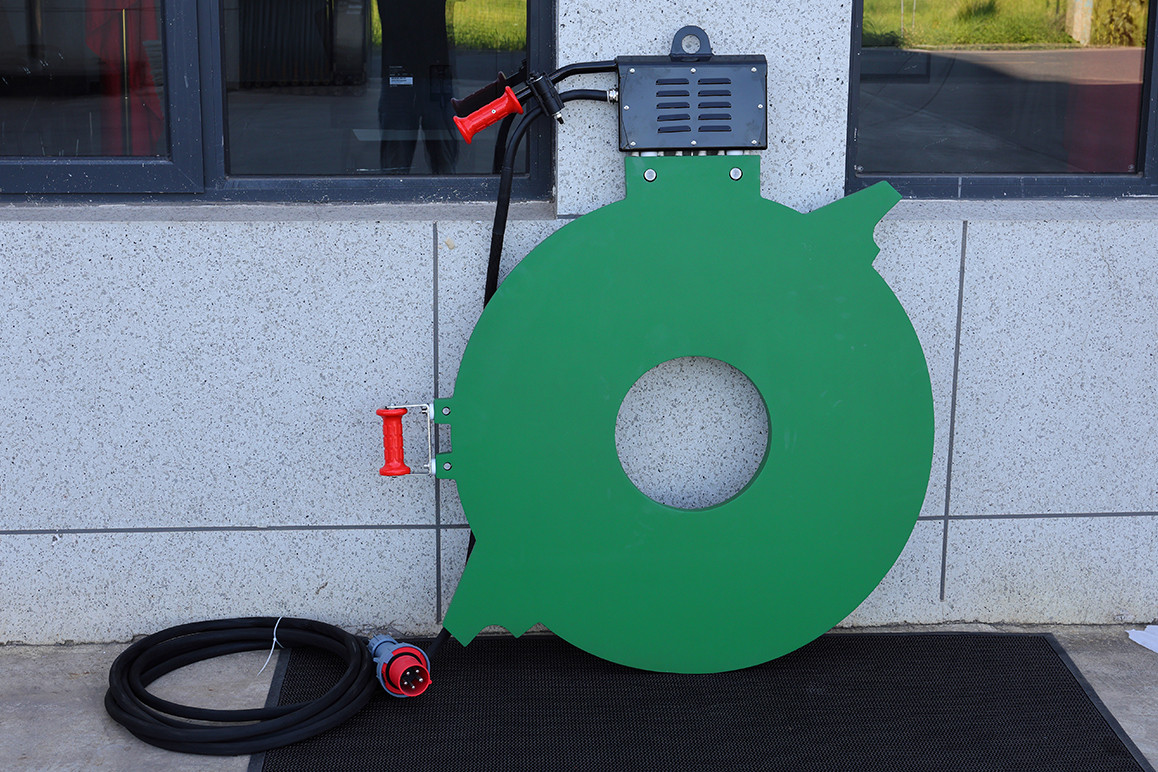

· Standard large-size industrial plug
Better suited for jobsite use, providing more reliable electrical connections
These design choices are made to support consistent performance in real welding conditions, rather than to emphasize specifications on paper.
Part of the FX Series System Configuration
The green heating plate is not a standalone component.
It is part of the overall FX series configuration and is selected to match the machine’s structure, operating conditions, and intended use.
For the FX series, the focus is on long-term stability and consistency during welding operations.
The green heating plate plays a key role in supporting that goal.
