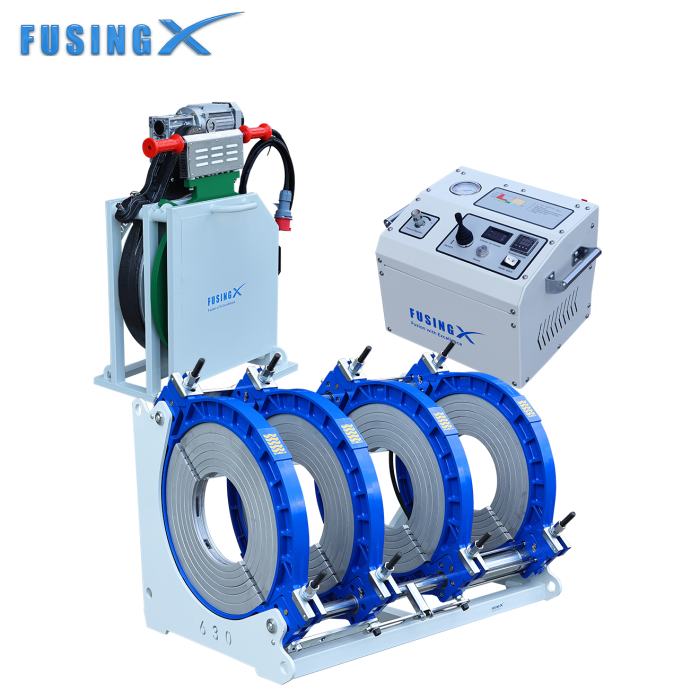

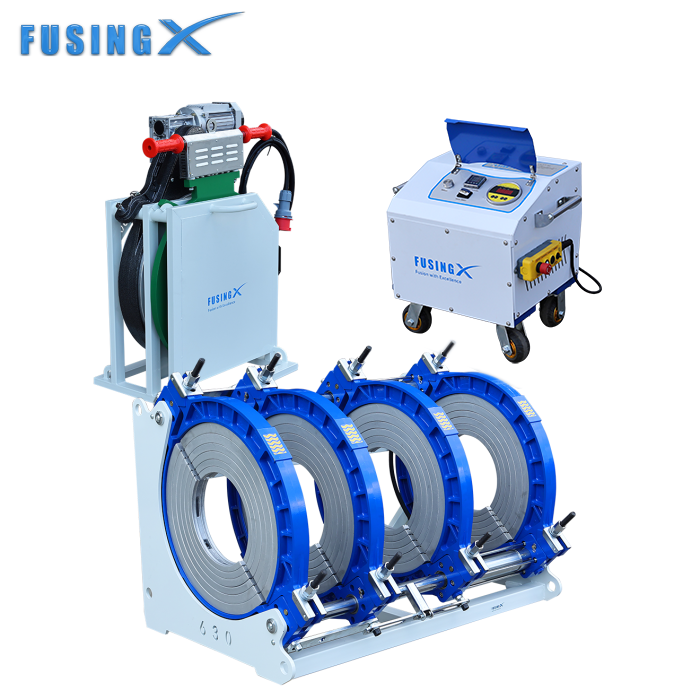

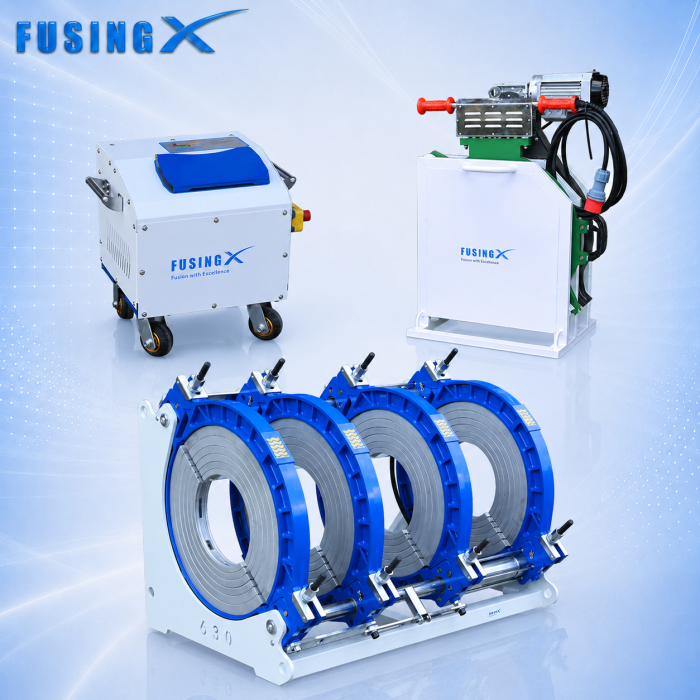

High Level Hydraulic Butt Fusion Welding Machine Semi Automatic Butt Welding Machine FusingX 315/630
| Share | |
|---|---|
| Categories | FX-Butt Fusion Welding Machine |
| Trademark/Brand | FusingX |
| Model | FX630 |
| OEM&ODM | Support |
| Welding Range | 315 mm – 630 mm (with clamp inserts) |
| Frame | Steel welded, reinforced structure |
| Hydraulic Unit | Integrated hydraulic & electrical system |
| Heating Plate | Cast aluminum, PEFT coating, ±7ºC control |
| Facer | Gear transmission, HSS blades, copper motor |
| Power Supply | Aviation plug, heavy-duty power cord |
| Portability | Handles & wheels, compact enclosure |
| Download |  |
| Update Time | Jan 14,2026 |
Detail Information
FX630 Butt Fusion Machine — Fusion with Excellence
（Precision · Intelligence · Excellence）
Key Highlights
· Robust Frame: Heavy-duty steel welded design for stable performance
· Innovative HPU: Smart hydraulic system with fast switching & easy operation
· Precision Heating Plate: Stable temperature control with anti-stick coating
· Durable Facer: Gear-driven with powerful motor and HSS double-edge blades

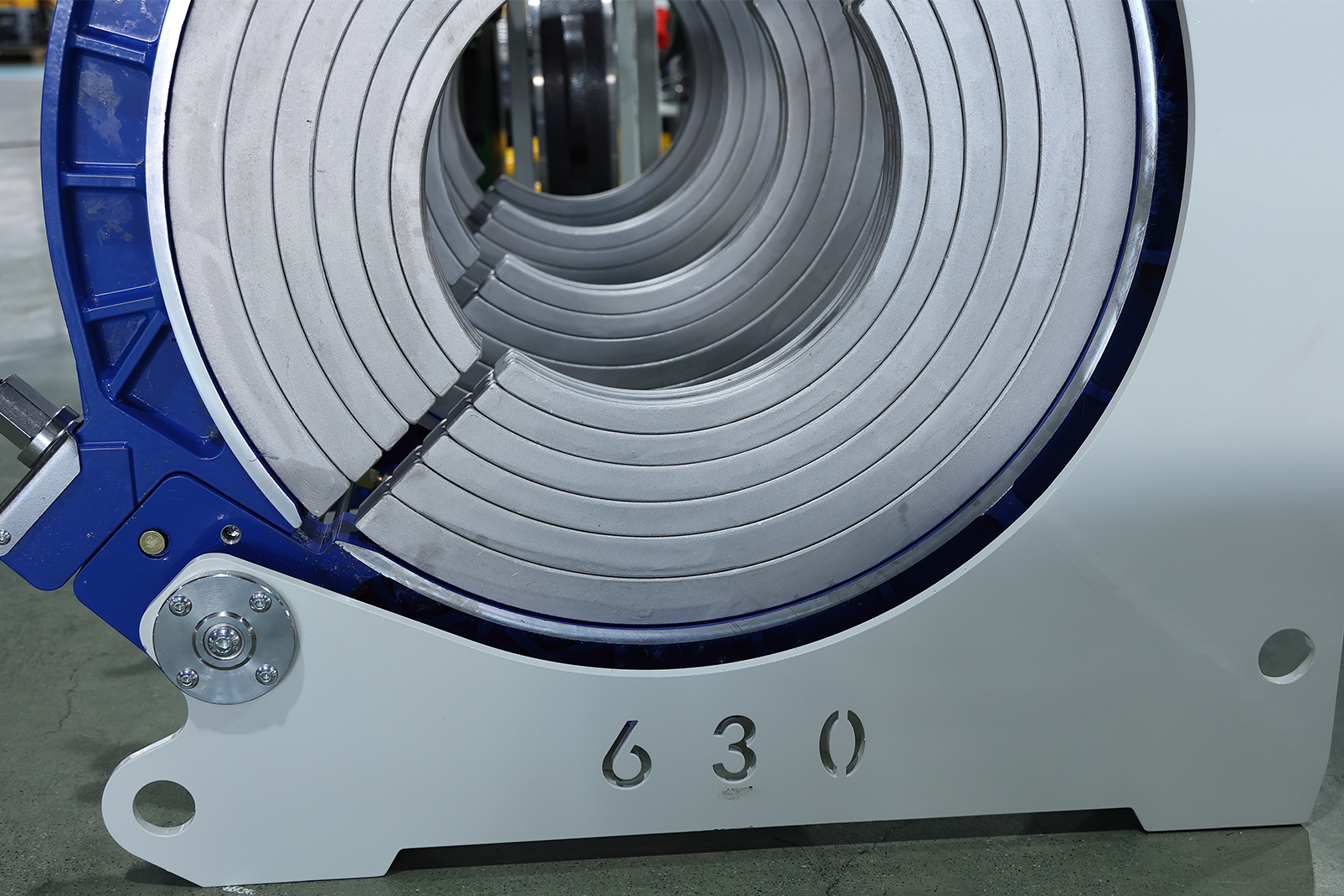

· Single-Size Clamp Inserts: Improve efficiency and accuracy across pipe sizes
Product Overview

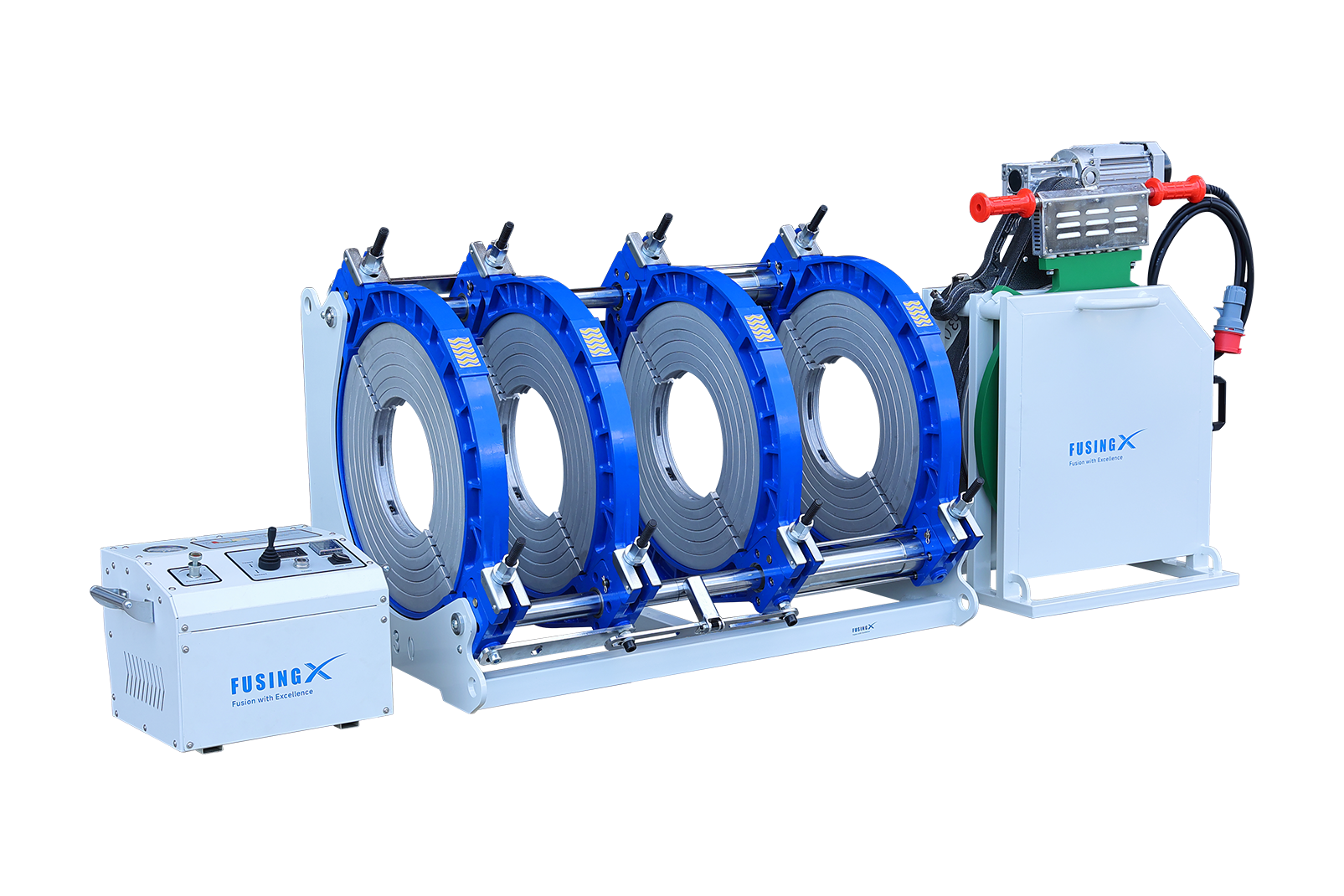

The FX630 is a semi-automatic butt fusion machine designed for HDPE pipe welding from 315mm to 630mm. With a reinforced frame, advanced hydraulic control, and precise heating technology, it offers contractors a reliable solution for municipal, industrial, and energy projects.
| Model No. | FX630 | Control | Semi-Automatic |
| Frequency Range | Low Frequency | Electric Current | AC |
| Type | Resistance Butt Welder | Hydraulic Station | Enclosed |
| Warranty | 1 Year | Package Quantity | 2PCS |
OEM&ODM | Support | Shipping | by Sea or by Air |
Certificate | IS09001,CE | MOQ | No Limit |
After Service | Online | Material | Aluminium,Steel |
Transport Package | Plywood Case | Specification | Hydraulic drive |
Trademark | FUSINGX | Origin | China |
HS Code | 8515809090 | Production Capacity | 20000 Pieces/Year |
PARAMETER
| Model | FX630 |
| Suitable materials | HDPE,PE,PP, PB,PVDF |
| Range | 315-355-400-450-500-560-630mm |
Rated Voltage | AC 380V, 50Hz, 3PH |
Rated Power | 10.1kw |
Heating plate | 7.5kw |
Trimmer | 1.5kw |
Hydraulic Unit | 1.1kw |
Max.Temperature of heating plate | 270ºC |
Pressure gauge | 0-10Mpa |
Certificate | ISO/CE/VOC/Calibration |
| Warranty | 18 Months |
PRODUCT DETAILS MAP

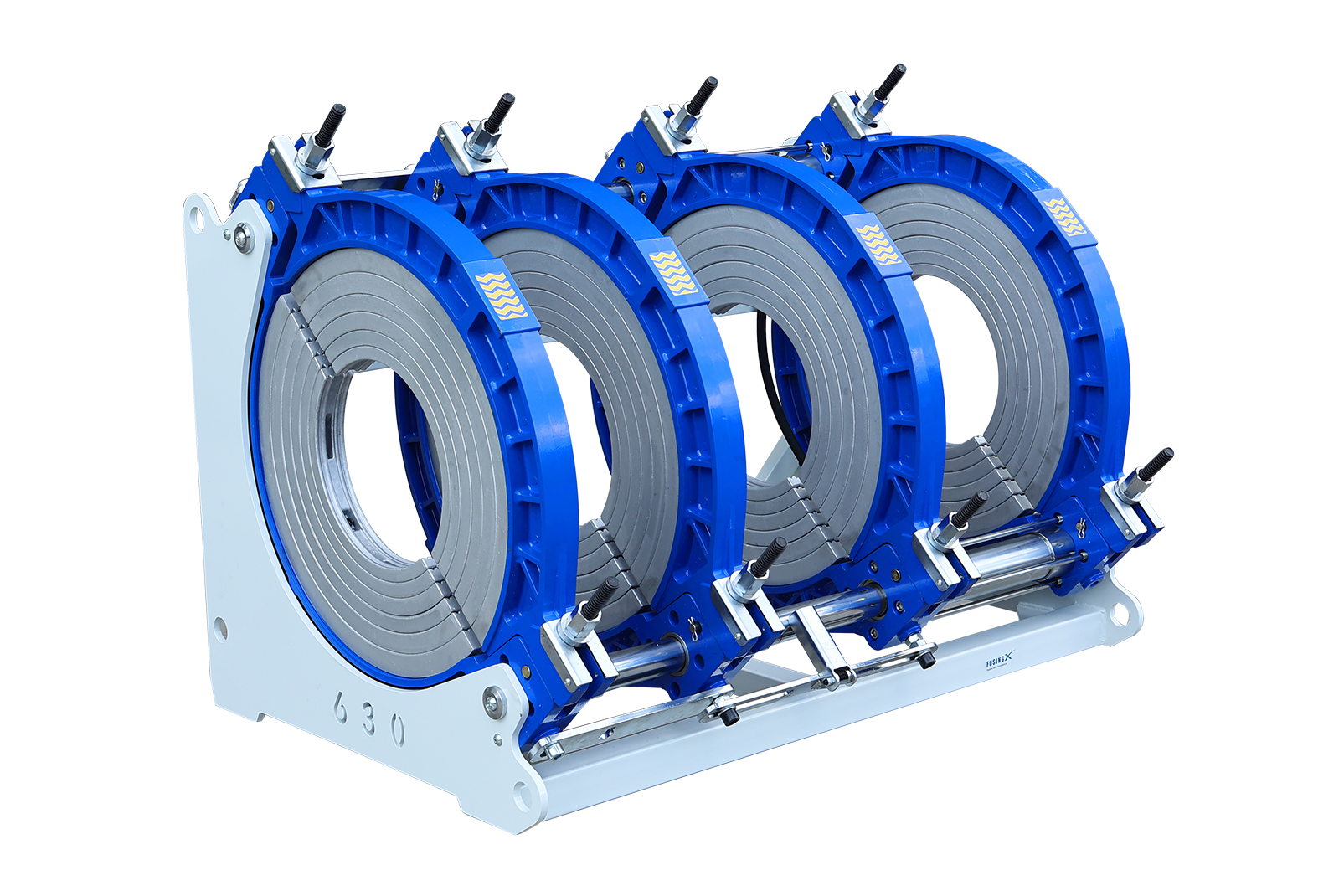

Frame(Carriage)
● Complete steel welded design, with complex reinforced structure, heavy-duty
● Clamping part, inner fine-machined
● Standard equipped with carrying handles and wheels, for easy transportation
● Qualified hydraulic cylinder with quick couplings, for easy installation

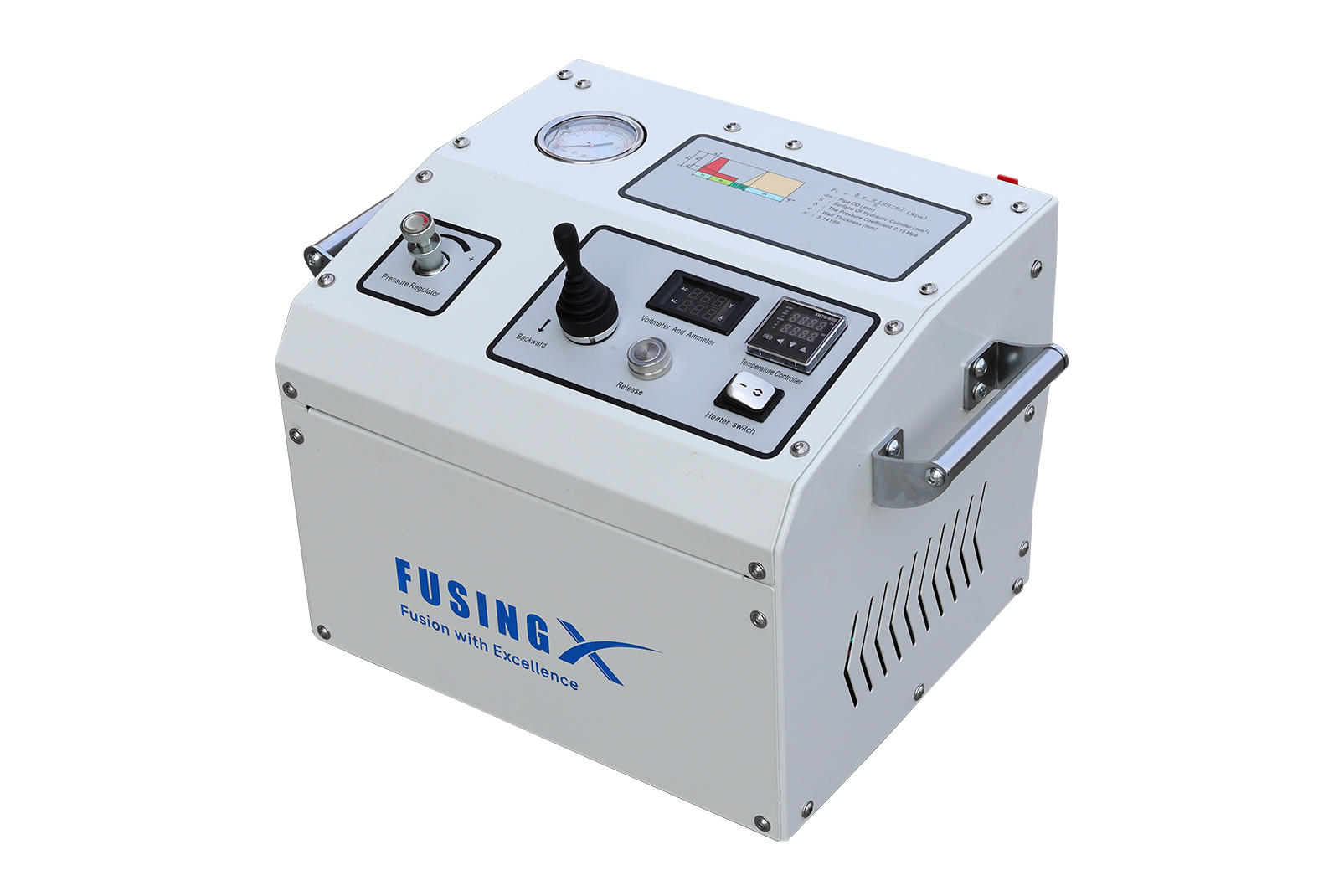

DynaFX™ HPU
● Integrated hydraulic and electrical control, for easy operation access
● Special designed hydraulic system, smart pressure control for pipe facing
● Compact and Enclosure design, shielding splash and dirt
● Featuring forward movement at 1X speed and reverse at 1.3X speed. Improves efficiency and reduces switching time.
Heating plate
● Cast aluminum body with built-in heating elements
● Anti-stick PEFT coating from Daikin
● Excellent teperature diavation control, less than 7°C
● Qualified aviation plug and heavy-duty power cord ensure operation safety

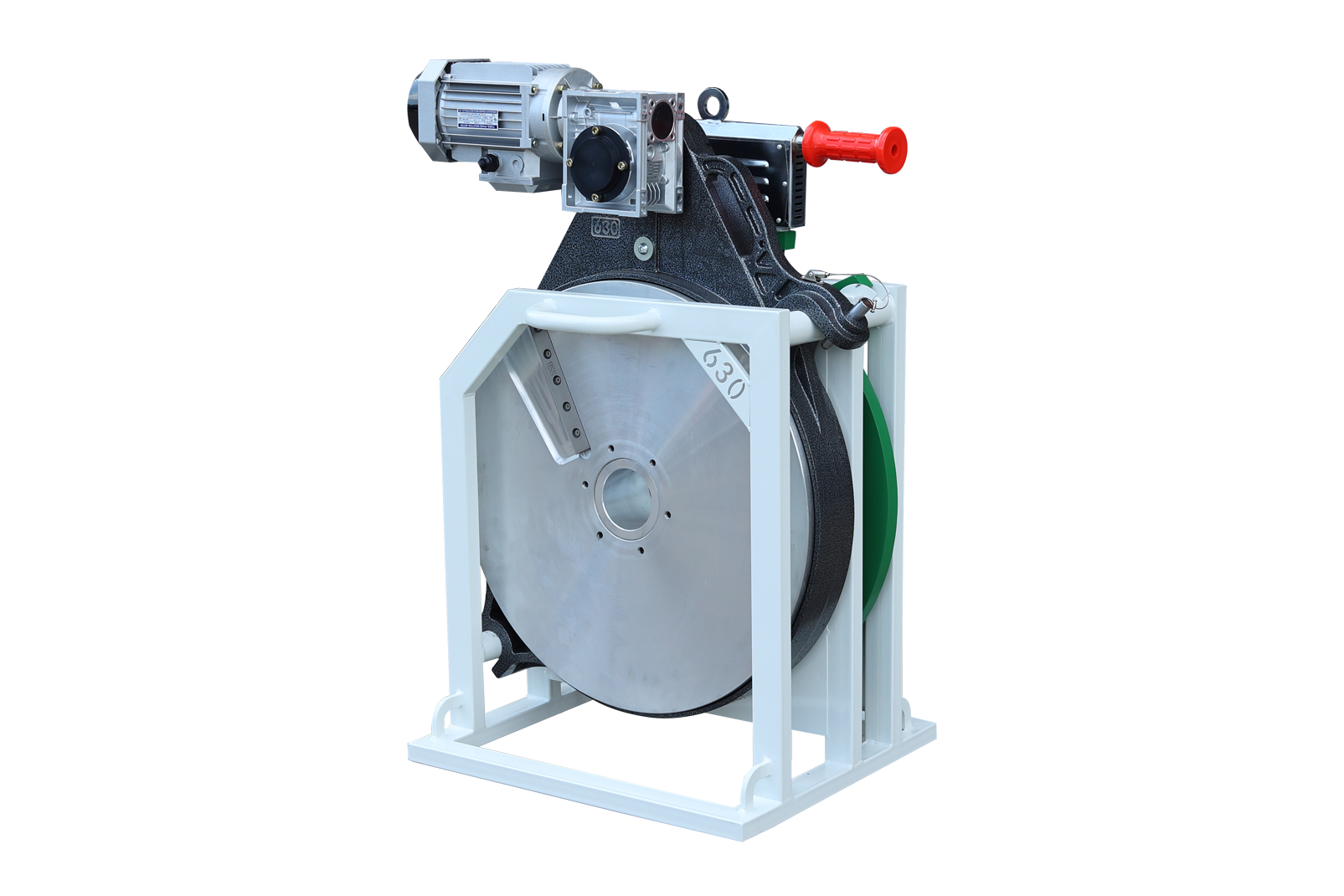

Facer (Milling Cutter)
● Full gear transmission structure, for steady and long-life performance
● Powerful copper-wiring motor
● Durable, double edges HSS blades

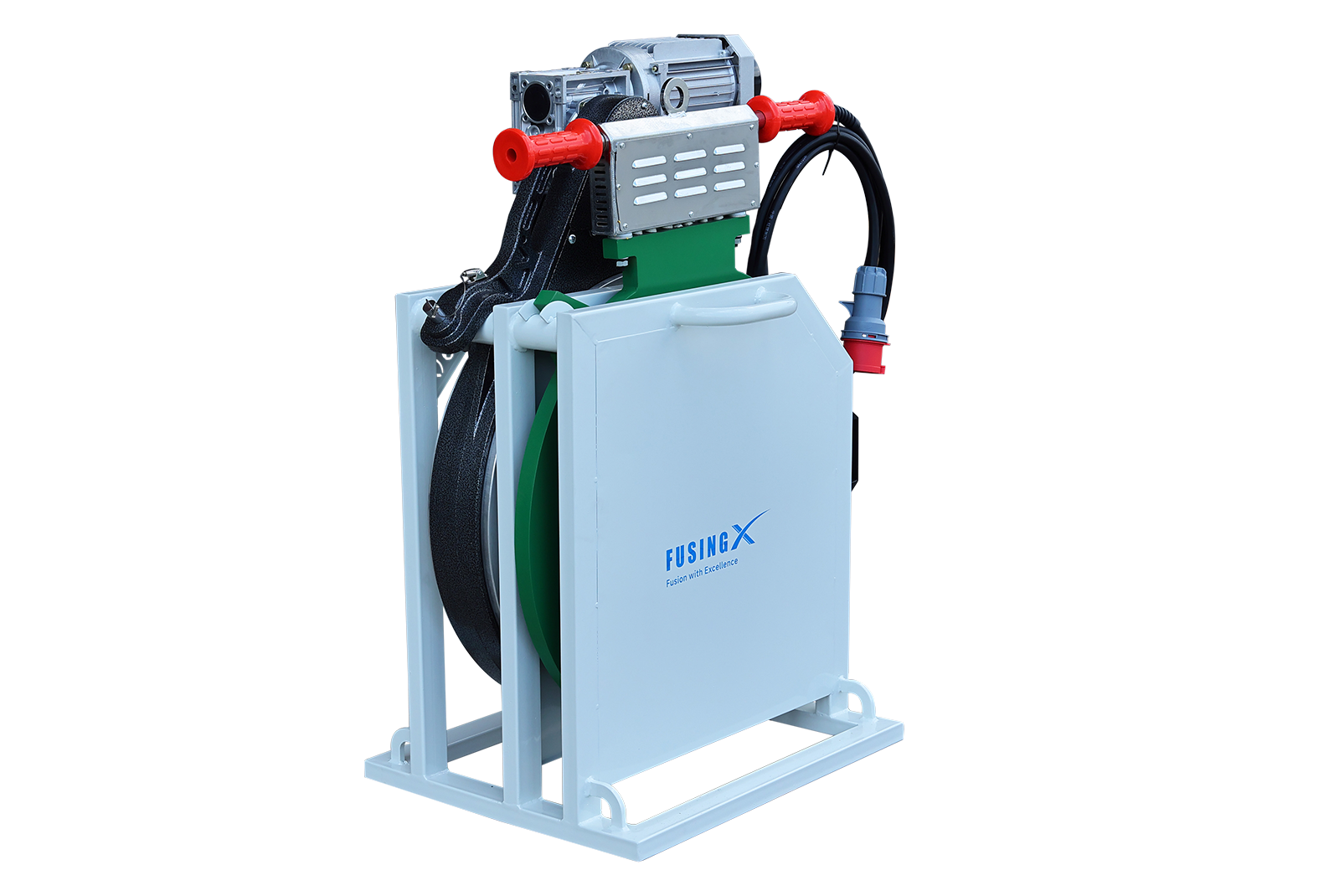

Tool holder
● Complete heating plate covers for better protection and heating conservation
● Wide base with lifting lugs
● For stable stock of facer and heating plate
Electric hoist (optional)
● An Optional electric hoist is available for convenient installing and moving the facer and heating plate
● Connected to the rear mounting plate of the frame for overall stability
● Designed for quick installation and removal
