The Ultimate Butt Fusion Machine Buying Guide - Everything You Need to Know
Welcome to the most comprehensive guide for purchasing butt fusion welding machines. Whether you are a contractor, distributor, or project manager looking for HDPE pipe welding equipment, this guide covers everything from basic working principles to professional selection criteria. At Hangzhou Weipin Machinery Equipment Co., Ltd., we have been manufacturing high-quality butt fusion welding machines for the global market, and this guide reflects our decades of industry expertise.
Why Choosing the Right HDPE Pipe Welding Machine Matters for Your Projects
Selecting the correct HDPE pipe welding machine is not just about purchasing equipment - it directly impacts your project quality, installation efficiency, long-term maintenance costs, and pipeline safety. A high-quality butt fusion welding machine ensures leak-proof, pressure-resistant joints that meet international standards (ISO 21307, DVS 2207). Poor equipment choices lead to joint failures, project delays, and costly rework. Investing in the right fusion welding equipment from a reliable manufacturer is the foundation of successful pipeline infrastructure projects.
ISO Certified
Compliant with international welding standards
Leak-Proof Joints
Stronger than the pipe itself when done right
40-250mm Range
Versatile welding for various pipe sizes
Global Export
Trusted by contractors worldwide
What Is a Butt Fusion Welding Machine and How Does Butt Fusion Work?
A butt fusion welding machine (also known as a butt fusion welding machine for HDPE) is a specialized tool that joins thermoplastic pipes - such as HDPE, PE, and PP - by heating the pipe ends to a precisely controlled molten state and pressing them together under regulated pressure. The result is a permanent, homogeneous joint that is as strong as the pipe material itself.

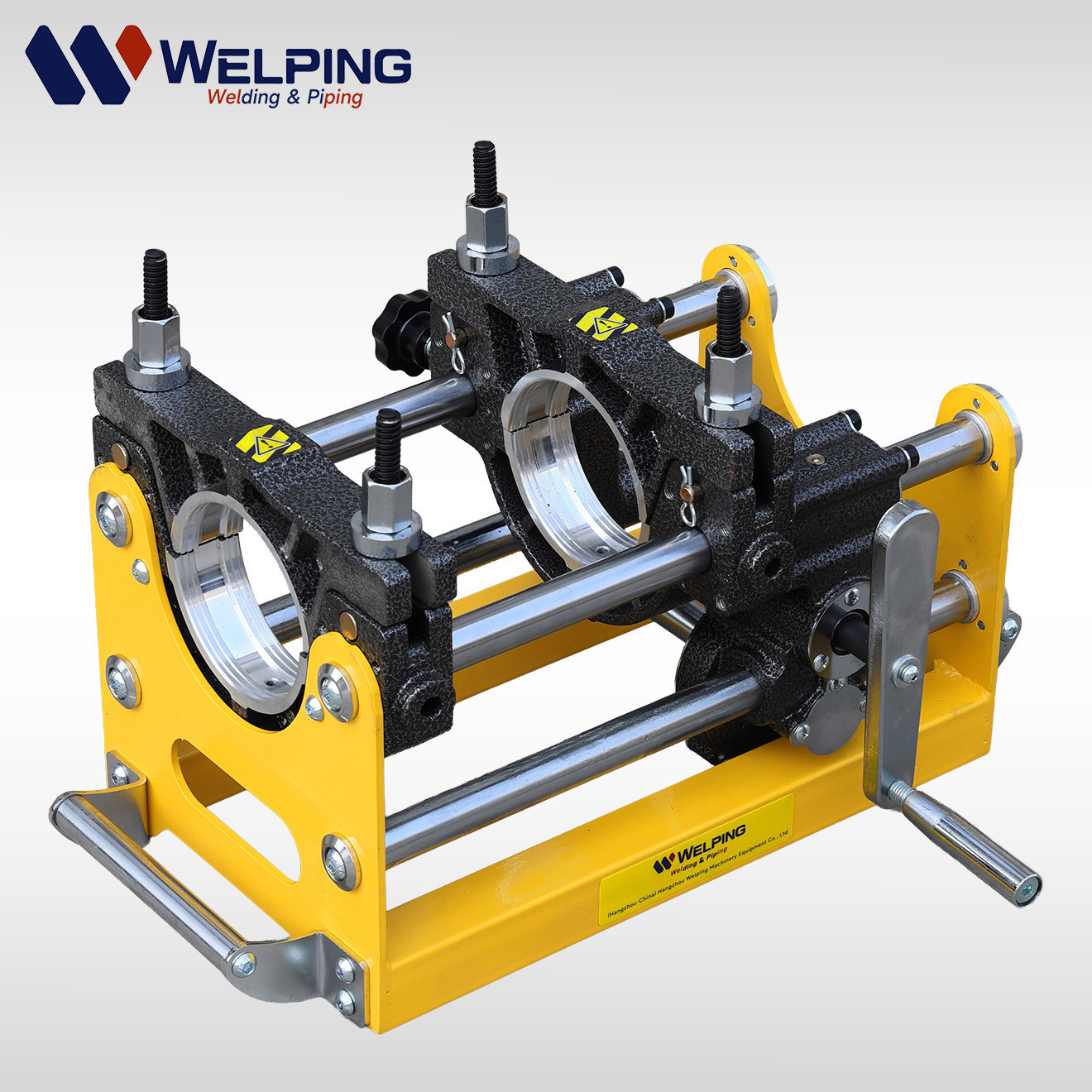

The butt fusion process follows four key steps:
- Clamping & Alignment - The pipe ends are securely clamped and aligned in the machine carriage to ensure perfect concentricity.
- Facing (Peeling) - A rotating facer trims the pipe ends to create clean, parallel surfaces for optimal fusion.
- Heating - A heating plate at the precise fusion temperature (typically 200-230C for HDPE) is inserted between the pipe ends for a controlled dwell time.
- Fusion & Cooling - The heating plate is removed, the molten pipe ends are pressed together under controlled hydraulic or manual pressure, and held during the cooling phase to form a monolithic joint.
Key Applications of PE Pipe Welding Equipment Across Industries
PE pipe welding equipment is widely used across multiple industries where reliable, leak-free pipeline connections are critical. Understanding these applications helps you choose the right plastic pipe welding machine specifications for your needs.
Municipal Water Supply

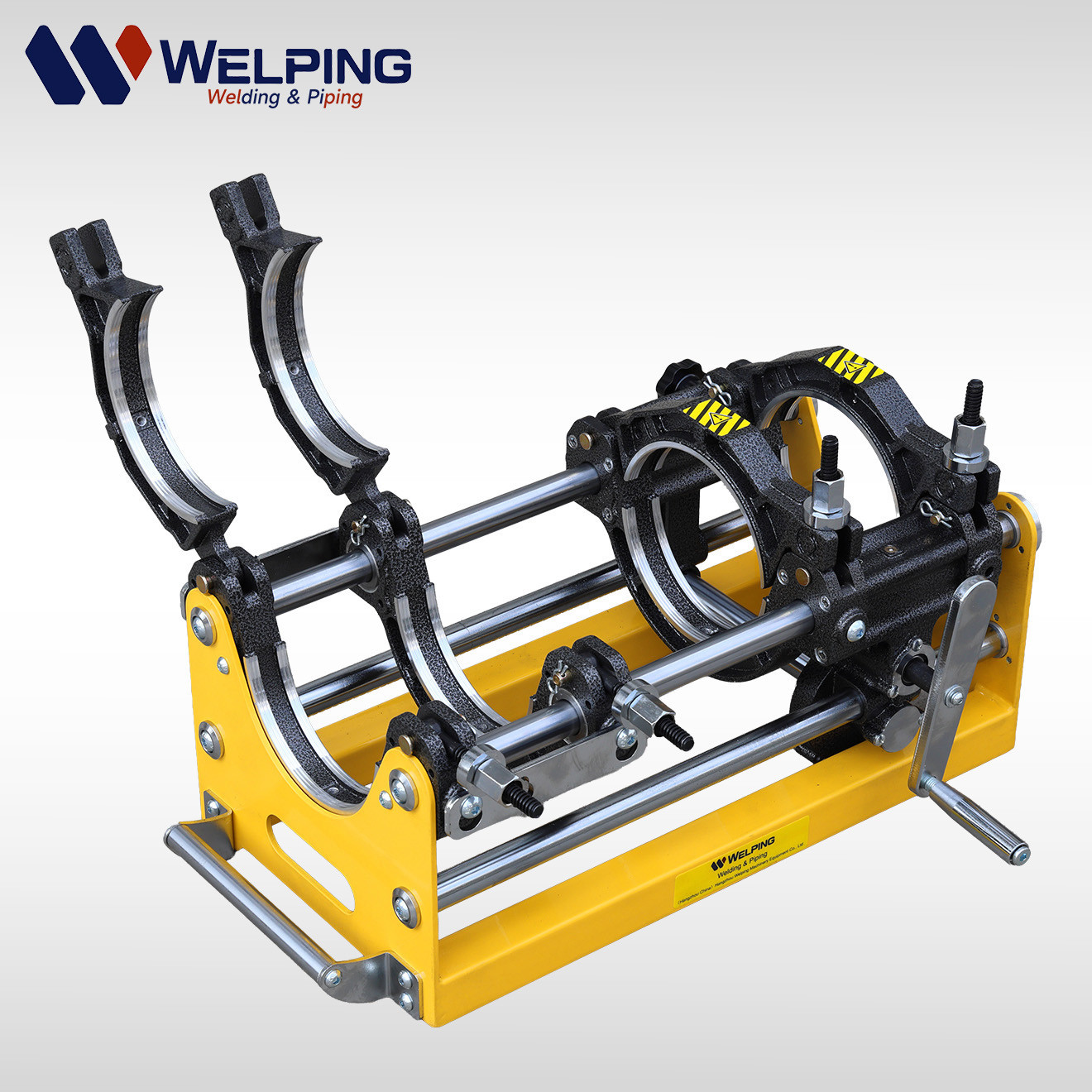

HDPE pipes joined with butt fusion welding machines are the standard for city water distribution networks, offering corrosion resistance and 50+ year service life.
Gas Distribution Networks

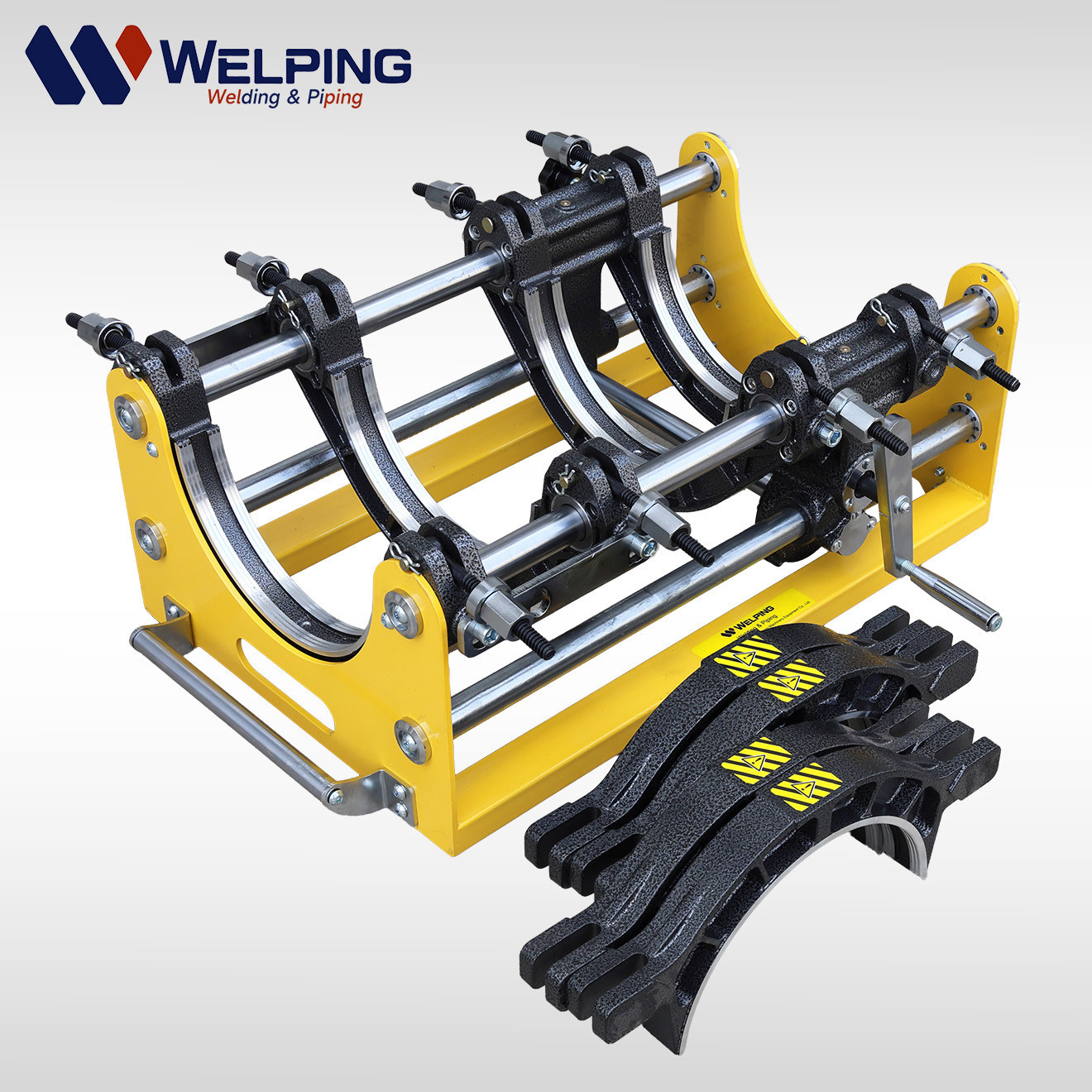

Natural gas and LPG pipelines require fusion-welded PE pipes for safety, using certified butt fusion equipment with pressure monitoring capabilities.
Industrial & Mining Piping

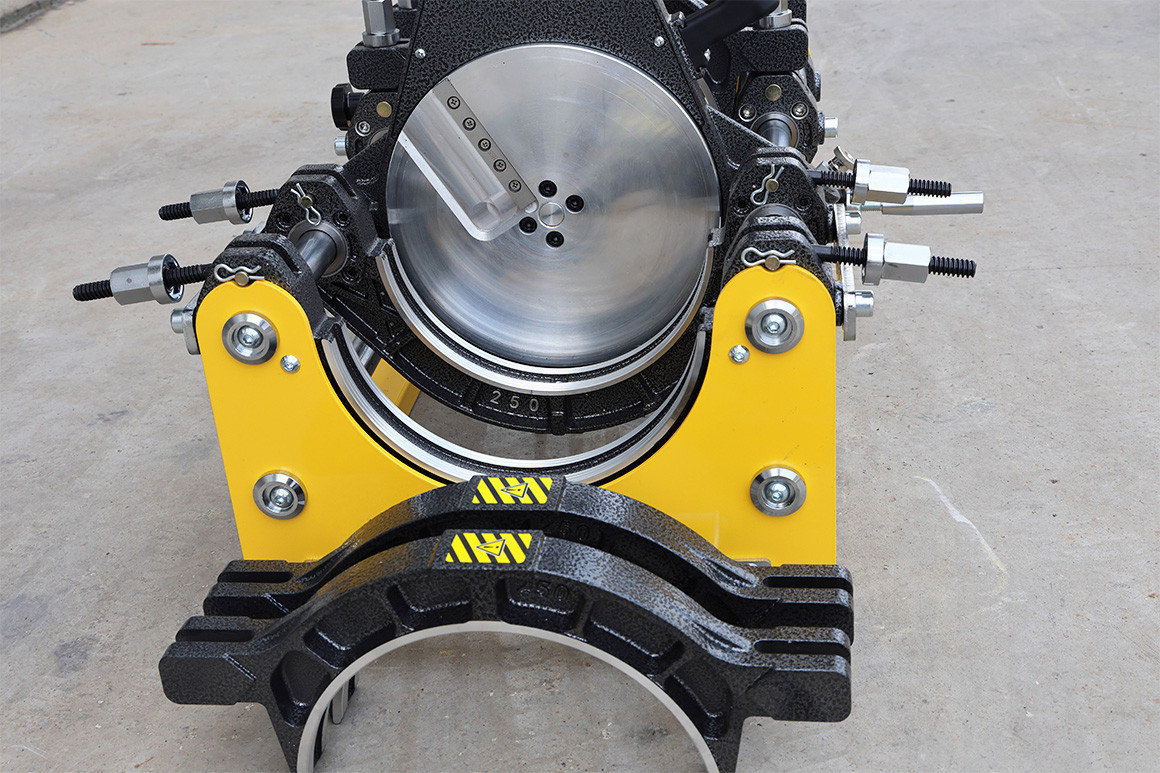

Chemical plants, mining operations, and industrial facilities use HDPE butt fusion for aggressive media transport, slurry lines, and process piping.
Manual vs Hydraulic vs Automatic Fusion Welding Machines - Which Type Is Best for You?
When selecting a fusion welding machine, understanding the three main types is crucial for making the right investment. Each type serves different project scales, budgets, and operational requirements.
| Type | Operation | Pipe Range | Best For | Price Range |
|---|---|---|---|---|
| Manual Butt Fusion | Hand-operated hydraulic pump | 40-250mm | Small projects, field repairs, irrigation | $ |
| Hydraulic Butt Fusion | Hydraulic power unit | 63-1200mm | Medium to large infrastructure projects | $$ |
| Automatic Butt Fusion | PLC-controlled fully automatic | 63-630mm | Large-scale projects, quality-critical pipelines | $$$ |

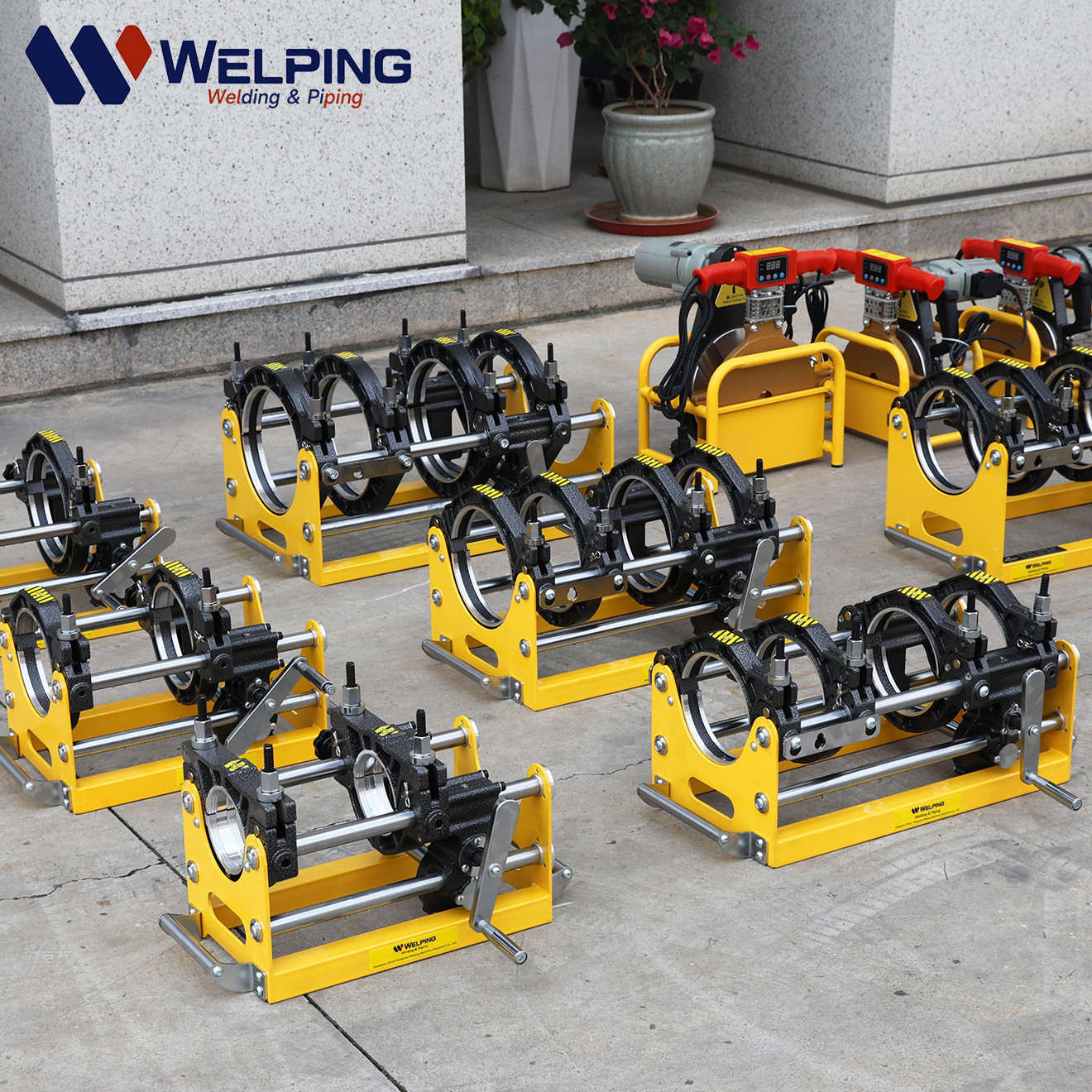

Our C Series Manual Butt Fusion Machines (WP110C2 to WP250C) offer reliable gear-driven operation for 40-250mm pipes, representing the best value for contractors who need field-proven performance at an affordable investment.
6 Critical Factors to Consider When Selecting a Plastic Pipe Welding Machine
1. Pipe Diameter Range
Match the machine's welding capacity to your project requirements. A machine covering 40-250mm offers flexibility for most applications.
2. Operation Type
Choose between manual (cost-effective), hydraulic (balanced), or automatic (precision) based on your workforce skill level and quality requirements.
3. Certification & Standards
ISO 9001 certified manufacturers and ISO 21307 compliant equipment ensure reliable welding performance and international acceptance.
4. Heating System Quality
Precise temperature control (+/- 3C) and uniform heat distribution across the heating plate are critical for consistent weld quality.
5. After-Sales Support
Choose manufacturers that provide spare parts availability, technical training, and responsive customer support for long-term peace of mind.
6. Total Cost of Ownership
Consider not just the purchase price but also maintenance costs, spare parts availability, and equipment lifespan when evaluating options.
Technical Specifications Comparison Guide for Butt Fusion Equipment
Understanding the technical specifications of butt fusion equipment helps you make an informed purchasing decision. Below is a comparison of our popular manual butt fusion machine models.
| Model | Welding Range | Operation | Facing System | Ideal Pipe Type |
|---|---|---|---|---|
| WP110C2 | 40-110mm | Manual | Gear-Driven | PE, HDPE |
| WP160C | 40-160mm | Manual | Gear-Driven | PE, HDPE |
| WP160C2 | 40-160mm | Manual | Gear-Driven | PE, PP |
| WP200C | 63-200mm | Manual | Gear-Driven | PE, HDPE |
| WP200C2 | 63-200mm | Manual | Gear-Driven | PE, PP |
| WP250C | 90-250mm | Manual | Gear-Driven | PE, HDPE, PP |
Common Mistakes to Avoid When Operating HDPE Butt Fusion Machines
Incorrect Temperature Settings
Using wrong heating plate temperature for the pipe material leads to weak joints. Always follow the material manufacturer's recommended fusion temperature range.
Improper Pipe Alignment
Misaligned pipes cause uneven bead formation and reduced joint strength. Always use the machine's alignment guides and check before heating.
Insufficient Cooling Time
Removing pressure before the joint has fully cooled can create voids and weak points. Follow the standard cooling time guidelines for your pipe wall thickness.
Contaminated Pipe Ends
Dirt, moisture, or grease on pipe ends compromise fusion quality. Always clean and dry pipe ends thoroughly before the welding process.
Why Hangzhou Weipin Machinery Is Your Trusted Butt Fusion Machine Manufacturer

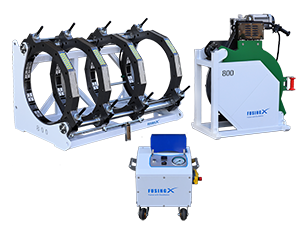

As a professional butt fusion machine manufacturer based in Hangzhou, China, Hangzhou Weipin Machinery Equipment Co., Ltd. brings years of experience in designing and manufacturing high-quality HDPE pipe welding machines. Our products are exported to markets across the Middle East, Africa, Southeast Asia, Europe, and South America, serving contractors, distributors, and infrastructure companies worldwide.
- Factory-direct pricing with competitive quality-to-cost ratio
- Complete product line: manual, hydraulic, and automatic butt fusion machines
- ISO 9001 quality management and international standard compliance
- Experienced export team with responsive after-sales support
- Customizable solutions for specific project requirements
Get Your Customized Butt Fusion Welding Solution - Contact Our Experts Today
Choosing the right butt fusion welding machine is an important investment. Our team of experienced engineers is ready to help you find the perfect equipment for your specific project requirements. Whether you need a manual machine for field repairs, a hydraulic system for large-scale infrastructure, or a complete welding solution package, we have the expertise and product range to meet your needs.
Contact us today for:
- Free product consultation and technical recommendations
- Competitive factory-direct pricing and quotation
- Shipping and logistics support worldwide
